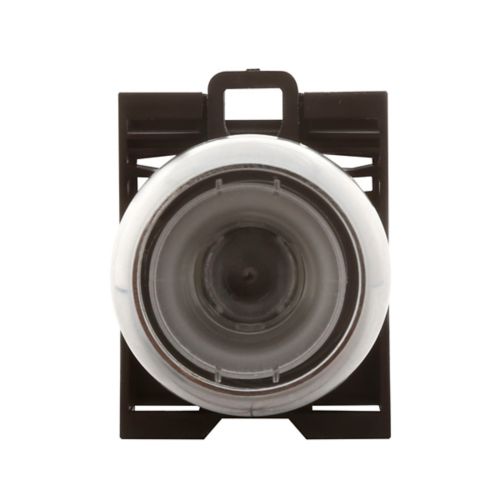

Eaton M22M-D-X M22 Modular Pushbutton 22.5 mm

Product Description

The Eaton M22M-D-X is a modular pushbutton with a space-saving construction that enables fast assembly. This non-illuminated pushbutton features a metal bezel and momentary operation. The rugged design exceeds five million mechanical operations and is suitable for automation and logic control equipment.

• Modular pushbutton
• Non-illuminated
• Metal Bezel
• Momentary operation

Product Highlights

The Eaton M22M-D-X modular pushbutton features easy assembly and adaptation to panel circuits. It is NEMA 4x and NEMA 13 rated.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22M-D-X

Technical Specifications

• Product Name: Eaton M22 modular pushbutton
• Catalog Number: M22M-D-X
• UPC: 786685860466
• Product Length/Depth: 4 in
• Product Height: 1 in
• Product Width: 6 in
• Certifications: UL Listed
• Product Type: Modular pushbutton
• Special features: Buttonless
• Type: M22 Operator
• Bezel: Metal
• Enclosure: NEMA 4X NEMA 13
• Operating mode: Momentary
• Illumination: Non-illuminated
• Series: M22
• Environmental rating: IP67, IP69K (IP66 key-release)
• Size: 22.5 mm
• UNSPSC: 39122216
• Application: Automation and logic control equipment
• Action: Momentary
• Actuator Type: Flush Button
• Brand: Eaton - Cutler Hammer
• Button Color: No Button
• Legend: No Legend
• Manufacturer Part Number: M22M-D-X
• Mounting Hole Size: 22.5 mm
• Mounting Type: Panel Mount
• Operation: Momentary
• Operation Mode: Momentary
• Primary Type: Pushbutton
• Family / Style: M22
• IP/NEMA Rating: NEMA 4X, NEMA 13
• Manufacturer: Eaton
• Product Series: M22
• Contacts: 1NO
