Eaton M22M-D-R Red Pushbutton Operator

Product Description

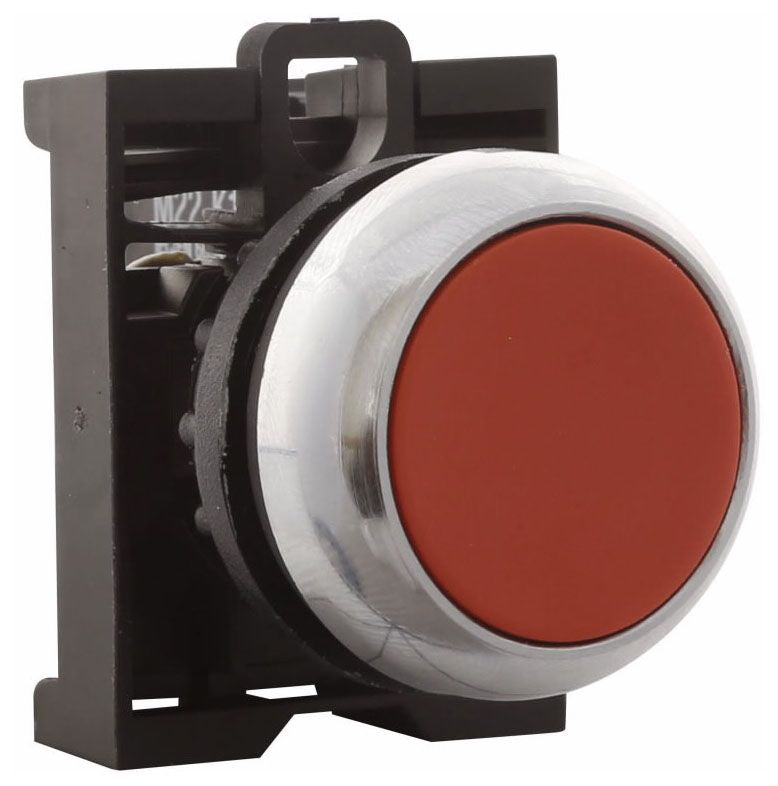

The EATON M22M-D-R is a red momentary pushbutton operator designed for use in industrial control stations and panel assemblies. This operator serves as the actuator component in a modular pushbutton system, providing the physical interface between an operator and the control circuit. It is installed into a compatible front plate or enclosure cutout and paired with contact blocks to complete the switching function. Electricians and industrial control technicians install this type of component during panel builds, machine retrofits, and control station servicing. At 0.1 pounds, the lightweight construction supports easy handling during installation.

This pushbutton operator is suited for industrial and commercial control panel applications where a clearly identifiable stop, emergency-halt, or discrete input function is required. The red color designation follows common control panel color conventions, making it appropriate for stop or off functions on motor control centers, machinery panels, and automation equipment enclosures. It is intended for use as part of a modular M22 series assembly.

Key Features

• Red operator color for intuitive stop or off function identification
• Momentary actuation returns to neutral position upon release
• Modular design compatible with M22 series contact blocks and mounting hardware
• Lightweight construction at 0.1 pounds for easy panel integration
• Flush-style operator profile for standard panel cutout mounting

Compatibility

Designed as a modular operator component for use within the EATON M22 series pushbutton and control station system. Specific compatible contact blocks, front plates, and enclosures were not identified in the available product data.

Installation Notes

Installation is typically performed by a licensed electrician or qualified control panel technician. De-energize and lockout/tagout the control panel before servicing or installing any operator or contact block component per NFPA 70E safe work practices. Ensure the mounting cutout dimensions match the M22 series specification before securing the operator. Do not over-torque the retaining nut, as this may crack the operator housing or damage the panel front plate.

Technical Specifications

• Weight: 0.1 pounds
• UPC: 78668586049

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22M-D-R
