Eaton M22-WS3 Modular Pushbutton 22.5 mm

Product Description

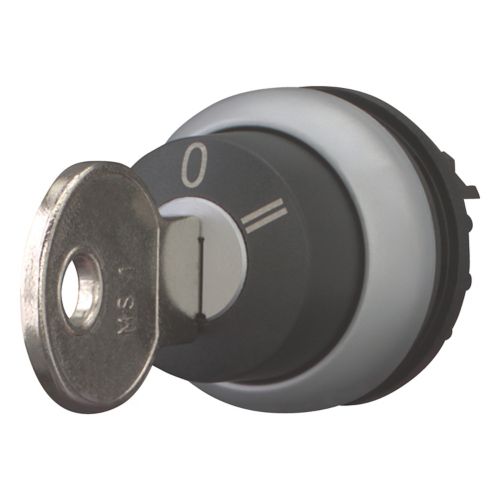

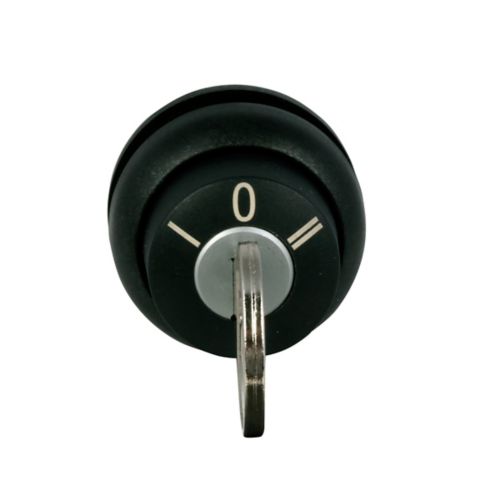

The Eaton M22-WS3 is a modular three-position key-operated selector switch. It features a 22.5 mm size, momentary operation with return from left/right, and a key removable center. The switch is non-illuminated with a silver bezel and black button. It is rated IP66, NEMA 4X, and 13, with 100,000 operations.

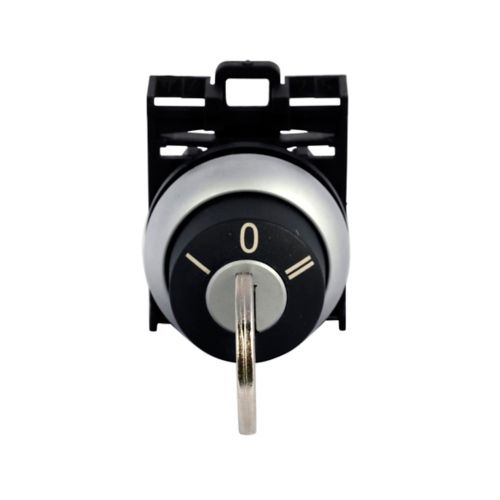

• Includes one key and one contact block mounting adapter.
• Removal positions can be modified in the field using coding adapters.
• Modular pushbutton

Product Highlights

The Eaton M22-WS3 is a durable and versatile selector switch suitable for various control applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-WS3

Technical Specifications

• SKU: M22-WS3
• Product Name: Eaton M22 modular pushbutton
• Catalog Number: M22-WS3
• UPC: 786685280226
• Product Length/Depth: 3 in
• Product Height: 4 in
• Product Width: 4 in
• Product Weight: 0.13 lb
• Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
• Compliances: Bureau Veritas GoST-R CE Marked
• Certifications: CSA Certified CCC Marked Lloyd's Register Certified
• Catalog Notes: Includes one key and one contact block mounting adapter. Removal positions can be modified in the field using coding adapters.
• Product Type: Modular pushbutton
• Type: Selector switch
• Bezel: Silver
• Operating Cycles: 100,000 operations
• Actuator function: Momentary, return from left/right, key removable center
• Button color: Black
• Actuator: Key operated
• Size: 22.5 mm
• Environmental rating: IP66, NEMA 4X, NEMA 13
• Illumination: Non-illuminated
• Key code: MS1
• Number of positions: 3
• Series: M22
• Operating frequency: 100 Operations/h
• Pollution degree: 3
• Climatic proofing: Damp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30
• Connection to SmartWire-DT: With SWD-RMQ connections Yes
• Actuator type: Key
• Ambient operating temperature - max: 70 °C
• Ambient operating temperature - min: -25 °C
• Equipment heat dissipation, current-dependent Pvid: 0 W
• Force for positive opening - min: 0 N
• Heat dissipation capacity Pdiss: 0 W
• Heat dissipation per pole, current-dependent Pvid: 0 W
• Opening diameter: 22.5 mm
• Operating torque: 0.5 Nm
• Rated operational current for specified heat dissipation (In): 0 A
• Static heat dissipation, non-current-dependent Pvs: 0 W
• Switching angle: 40 °
• Shock resistance: 30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms Mechanical, According to IEC/EN 60068-2-27
• Bezel material: Plastic
• Design: Key operated Classical
• Mounting position: As required
• Overvoltage category: III
• Degree of protection: NEMA 4X, 13
• Degree of protection (front side): IP66
• Functions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
• Indicator color: Other
• Lens type: Round
• Lifespan, mechanical: 100,000 Operations
• Number of switch positions: 3
• Panel Cutout Dimensions: 22.5mm (Round)
• Requires: Contact Block(s)
