Eaton M22-WRLK3-G M22 Modular Pushbutton 22.5 mm

Product Description

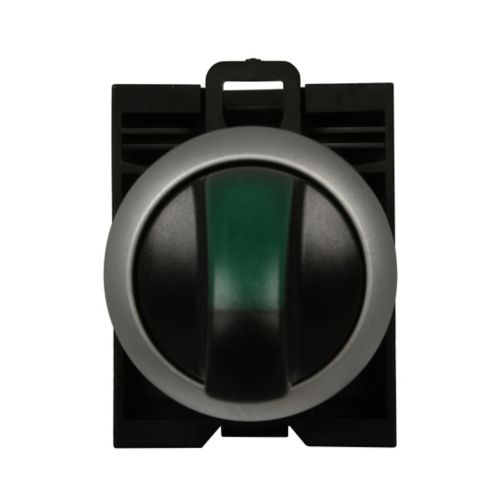

The Eaton M22-WRLK3-G M22 modular pushbutton is a 22.5 mm selector switch operator with a silver bezel and green button. This modular pushbutton is illuminated and maintained with IP66, NEMA 4X, and NEMA 13 environmental ratings. It features a knob actuator and a three-position configuration.

• M22 Modular Selector Switch Operator
• Illuminated
• IP66, NEMA 4X, NEMA 13

Product Highlights

The Eaton M22-WRLK3-G modular pushbutton is ideal for various control applications, offering durability and clear indication.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-WRLK3-G

Technical Specifications

• Product Name: Eaton M22 modular pushbutton
• Catalog Number: M22-WRLK3-G
• Product Length/Depth: 1.17 in
• Product Height: 1.06 in
• Product Width: 1.17 in
• Product Weight: 0.1 lb
• Product Type: Modular pushbutton
• Type: Selector switch
• Bezel: Silver
• Actuator function: Maintained
• Button color: Green
• Actuator: Knob
• Environmental rating: IP66, NEMA 4X, NEMA 13
• Illumination: Illuminated
• Number of positions: 3
• Operating cycles: Light: 100,000, button: 100,000
• Series: M22
• Size: 22.5 mm
• Voltage rating: 12-30 Vac/dc
• Contact configuration: 3 NO
• UPC: 786685556659
• Compliances: Bureau Veritas GoST-R CE Marked
• Certifications: CCC Marked CSA Certified Lloyd's Register Certified
• Actuator Type: Selector
• Packaging: Bulk
• Compatible Series: Eaton, M22
• Part Status: Active
• Panel Cutout Dimensions: 22.5mm (Round)
• Requires: Contact Block(s), Illumination Source
