Eaton M22-WRLK-G M22 Modular Pushbutton

Product Description

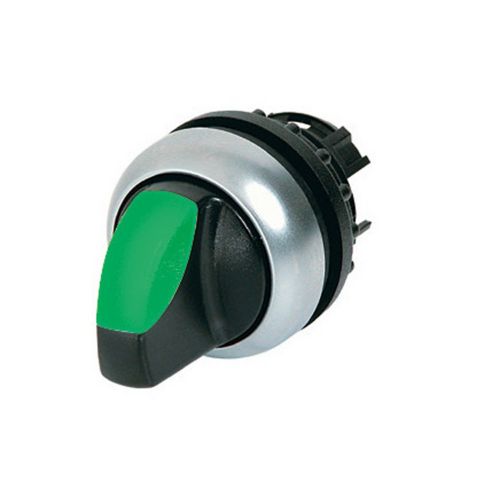

The EATON M22-WRLK-G is an M22 modular pushbutton. This 22.5 mm selector switch operator features a knob actuator, maintained functionality, and illumination. It has a silver bezel and a green button, with an IP66, NEMA 4X, and NEMA 13 environmental rating. The light has a lifespan of 100,000 hours, and the button has 100,000 operations.

• 22.5 mm selector switch operator
• Knob actuator with maintained functionality
• IP66, NEMA 4X, and NEMA 13 environmental rating

Product Highlights

The EATON M22-WRLK-G modular pushbutton is ideal for various control applications requiring a durable and reliable selector switch.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-WRLK-G
• Country of Origin: China

Technical Specifications

• Type: Selector switch
• Bezel: Silver
• Actuator function: Maintained
• Button color: Green
• Actuator: Knob
• Environmental rating: IP66, NEMA 4X, NEMA 13
• Illumination: Illuminated
• Number of positions: 2
• Operating cycles: Light: 100,000, button: 100,000
• Series: M22
• Size: 22.5 mm
• Product Name: Eaton Moeller series M22 illuminated selector switch
• Catalog Number: 216827
• Model Code: M22-WRLK-G
• EAN: 4015082168278
• Product Length/Depth: 46 mm
• Product Height: 30 mm
• Product Width: 30 mm
• Product Weight: 0.013 kg
• Compliances: CE Marked
• Certifications: UL 508 CSA Std. C22.2 No. 94-91 CSA Std. C22.2 No. 14-05 EN 60947-5 IEC 60947-5 VDE UL Category Control No.: NKCR UL File No.: E29184 CSA Class No.: 3211-03 VDE 0660 CSA-C22.2 No. 14-05 CSA File No.: 012528 CSA-C22.2 No. 94-91 IEC/EN 60947 CE IEC/EN 60947-5 UL CSA
• Global Catalog: 216827
• Product Type: Illuminated selector switch
• Accessories: Thumb grip
• Actuator color: Black
• Switching function: latching
• 10.10 Temperature rise: Not applicable.
• 10.11 Short-circuit rating: Is the panel builder's responsibility. The specifications for the switchgear must be observed.
• 10.12 Electromagnetic compatibility: Is the panel builder's responsibility. The specifications for the switchgear must be observed.
• 10.13 Mechanical function: The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
• 10.2.2 Corrosion resistance: Meets the product standard's requirements.
• 10.2.3.1 Verification of thermal stability of enclosures: Meets the product standard's requirements.
• 10.2.3.2 Verification of resistance of insulating materials to normal heat: Meets the product standard's requirements.
• 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects: Meets the product standard's requirements.
• 10.2.4 Resistance to ultra-violet (UV) radiation: Please enquire
• 10.2.5 Lifting: Does not apply, since the entire switchgear needs to be evaluated.
• 10.2.6 Mechanical impact: Does not apply, since the entire switchgear needs to be evaluated.
• 10.2.7 Inscriptions: Meets the product standard's requirements.
• 10.3 Degree of protection of assemblies: Does not apply, since the entire switchgear needs to be evaluated.
• 10.4 Clearances and creepage distances: Meets the product standard's requirements.
• 10.5 Protection against electric shock: Does not apply, since the entire switchgear needs to be evaluated.
• 10.6 Incorporation of switching devices and components: Does not apply, since the entire switchgear needs to be evaluated.
• 10.7 Internal electrical circuits and connections: Is the panel builder's responsibility.
• 10.8 Connections for external conductors: Is the panel builder's responsibility.
• 10.9.2 Power-frequency electric strength: Is the panel builder's responsibility.
• 10.9.3 Impulse withstand voltage: Is the panel builder's responsibility.
• 10.9.4 Testing of enclosures made of insulating material: Is the panel builder's responsibility.
• Fitted with: Front ring
• Operating frequency: 2000 Operations/h
• Pollution degree: 3
• Climatic proofing: Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78
• Connection to SmartWire-DT: With SWD-RMQ connections Yes
• Actuator type: Toggle
• Ambient operating temperature - max: 70 °C
• Ambient operating temperature - min: -25 °C
• Equipment heat dissipation, current-dependent Pvid: 0 W
• Force for positive opening - min: 0 N
• Heat dissipation capacity Pdiss: 0 W
• Heat dissipation per pole, current-dependent Pvid: 0 W
• Opening diameter: 22.5 mm
• Operating torque: 0.3 Nm
• Rated operational current for specified heat dissipation (In): 0 A
• Static heat dissipation, non-current-dependent Pvs: 0 W
• Switching angle: 60 °
• Bezel color: Titanium
• Shock resistance: Mechanical, According to IEC/EN 60068-2-27 30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
• Color: Green
• Bezel material: Plastic
• Design: With thumb-grip
• Mounting position: As required
• Overvoltage category: III
• Degree of protection: NEMA 4X
• Degree of protection (front side): IP66
• Functions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
• Indicator color: Green
• Lens type: Round
• Lifespan, mechanical: 100,000 Operations
• Number of switch positions: 2
• Front diameter: 29.7 mm
• Product category: RMQ-Titan
• Suitable for: Illumination
• Manufacturer: EATON ELECTRIC
• Type of switch: rotary
• Switch standard: 22mm
• Stable positions number: 2
• Actuator colour: green
• IP rating: IP67
• Button shape: prominent
• Switches features: witout symbol
• Manufacturer series: RMQ-Titan
• Mounting hole diameter: Ø22.5mm
• Button marking: blank
• Operating temperature: -25...70°C
