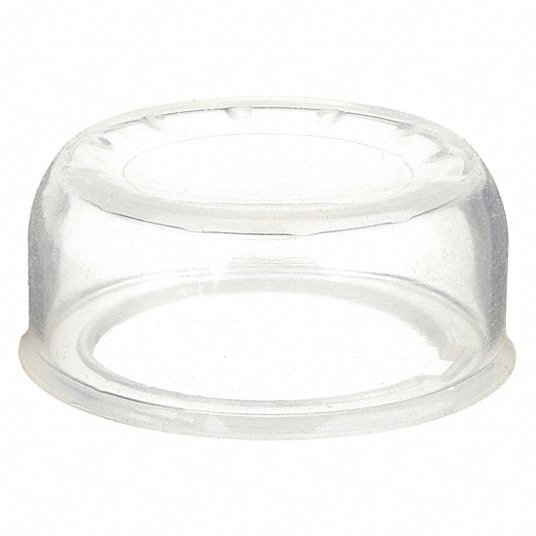

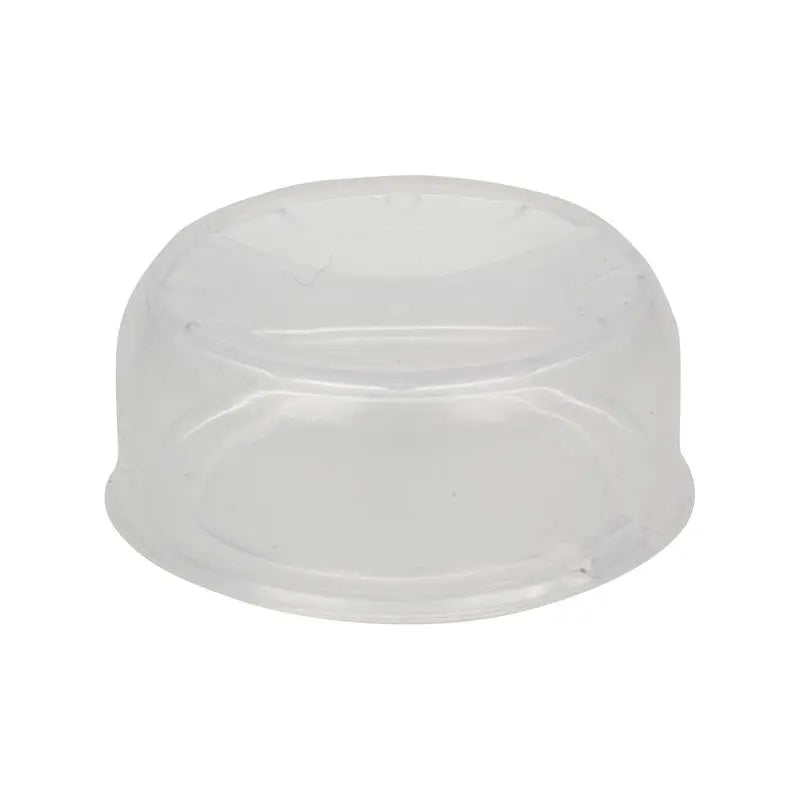

Eaton M22-T-D Protective Diaphragm 22.5 mm

Product Description

The Eaton M22-T-D is a protective diaphragm designed for use with flush pushbuttons and indicating lights. This M22 series accessory provides additional protection for push buttons and indicator lights in harsh environments and food industry applications. It features a space-saving construction for fast assembly and rugged design.

• Protective Pushbutton and Indicating Light Diaphragm
• For use with flush pushbuttons and indicating lights
• NEMA 4X/21/IP67/IP69K enclosure

Product Highlights

The Eaton M22-T-D protective diaphragm enhances the durability and longevity of pushbuttons and indicating lights.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-T-D
• Country of Origin: Germany

Technical Specifications

• Product Name: Eaton M22 pushbutton protective diaphragm
• Catalog Number: M22-T-D
• UPC: 786685283432
• Product Length/Depth: 1.3 in
• Product Height: 0.67 in
• Product Width: 1.3 in
• Compliances: CE Marked Bureau Veritas GoST-R
• Certifications: CSA Certified CCC Marked Lloyd's Register Certified
• Catalog Notes: For use with flush pushbuttons and indicating lights
• Product Type: Pushbutton accessory
• Special features: Protective Pushbutton and Indicating Light Diaphragm
• Type: M22
• Series: M22
• Environmental rating: IP67, IP69K, NEMA 4X, NEMA 21
• Size: 22.5 mm
• Drilling dimensions: 22.5 mm
• Material: Polyester
• Dimensions: 1.3 x 1.3 x 0.67 in
• Compatible with Series: M22
• Compatible Product Type: Push Buttons
• Color: Transparent
