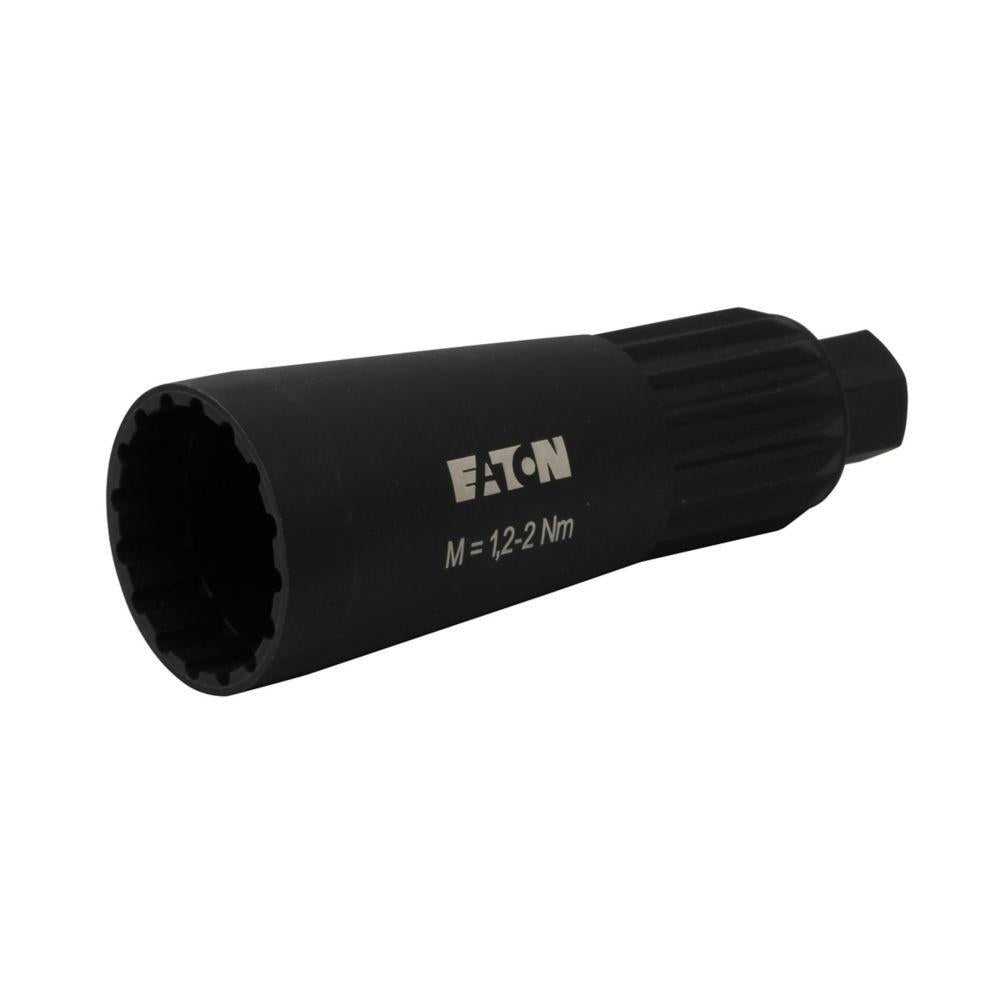

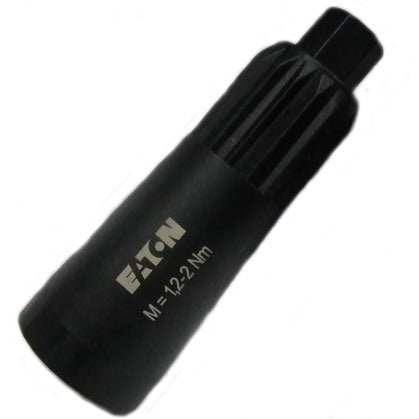

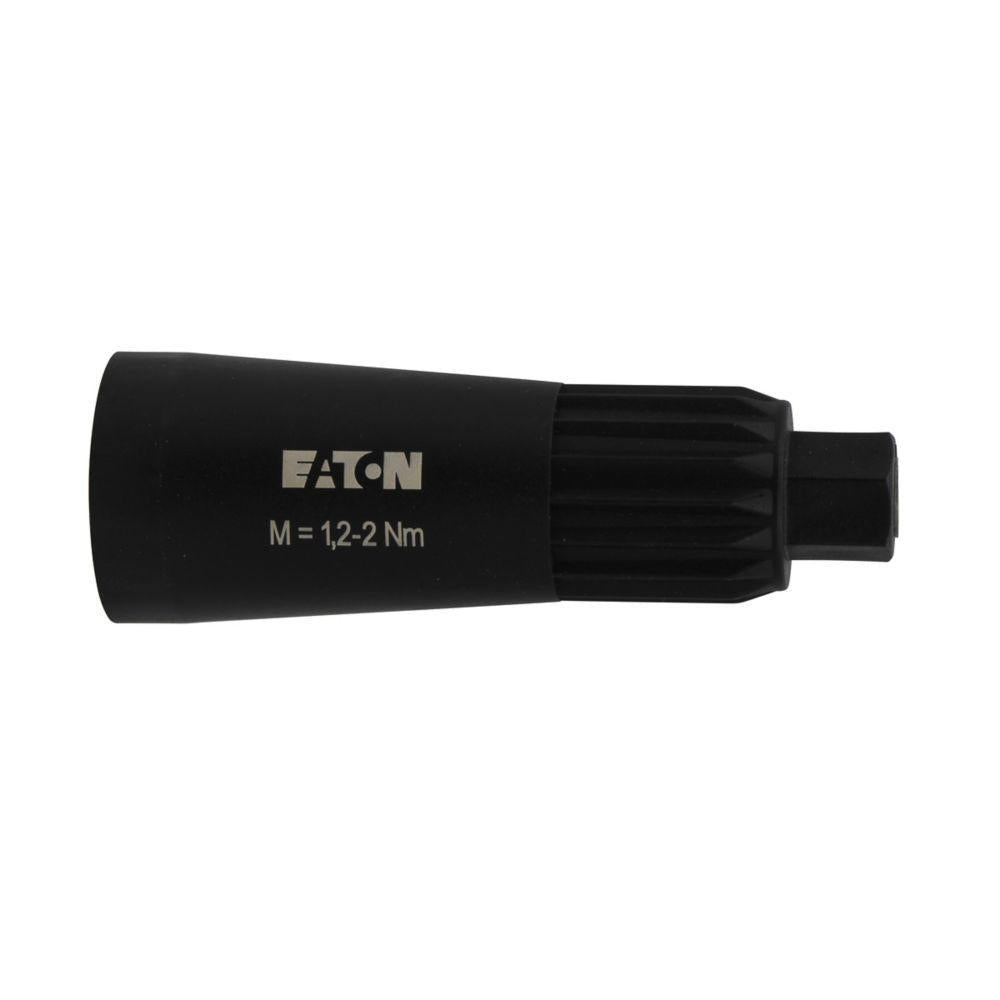

Eaton M22-MS pushbutton mounting ring tool 22.5 mm

Product Description

The Eaton M22-MS is a pushbutton mounting ring tool designed for fast assembly with a space-saving construction. The M22 line offers LED light units for high-quality brightness and long illumination. The rugged design of these pushbuttons and contact blocks exceeds five million mechanical operations.

• IP66, NEMA 4X/13 environmental rating
• Ring mounting
• Suitable for use with M22 Modular Pushbutton

Product Highlights

The Eaton M22-MS mounting ring tool is designed for use with the Eaton M22 series pilot devices.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-MS

Technical Specifications

• Finish: Black
• Series: M22
• Size: 22.5 mm
• Suitable For Use With: M22 Modular Pushbutton
• Color: Black
• Product Name: Eaton M22 pushbutton mounting ring tool
• Catalog Number: M22-MS
• UPC: 786685283401
• Product Length/Depth: 88 mm
• Product Height: 31 mm
• Product Width: 31 mm
• Product Weight: 0.02 kg
• Compliances: CE Marked Bureau Veritas GoST-R
• Certifications: CSA Certified CCC Marked Lloyd's Register Certified
• Product Type: Pushbutton accessory
• Type: Mounting Ring Tool
• Mounting method: Ring
• Environmental rating: IP66, NEMA 4X, NEMA 13, RK resistance 470
• Application: Automation and Logic Control Equipment Applications
• Enclosure: NEMA 4X/13, IP66
• Accessory Type: Mounting Accessories
• Brand: Eaton
• Category: Business & Industrial > Electrical Equipment & Supplies > Switches > Pushbutton Switches
• Condition: New
• Model Code: M22-MS
• EAN: 4015082164027
• UL/CSA certification not required: None
• Global Catalog: 216402
• Accessory: None
• Used with: Threaded ring
• Connection to SmartWire-DT: No
• Model: Mounting wrench
• Ambient operating temperature - max: 70 °C
• Ambient operating temperature - min: -25 °C
• Force for positive opening - min: 0 N
• Family / Style: M22
