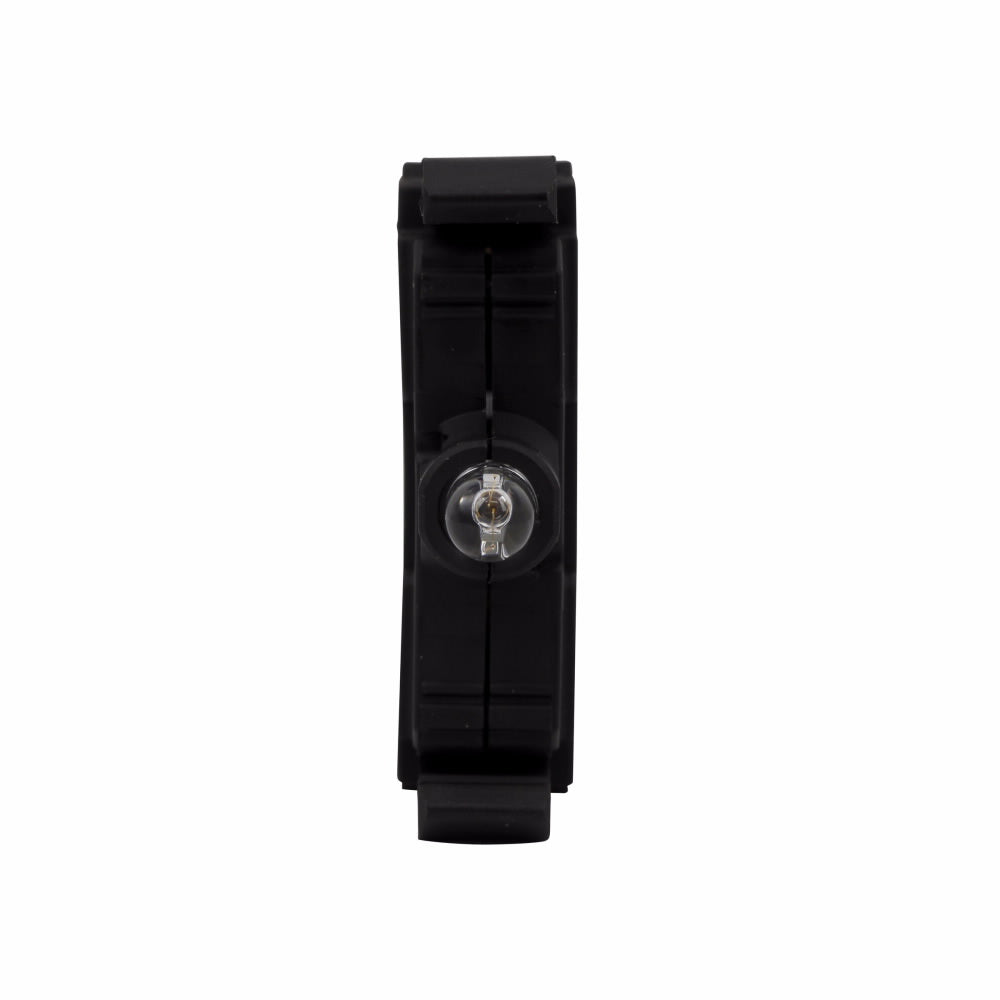

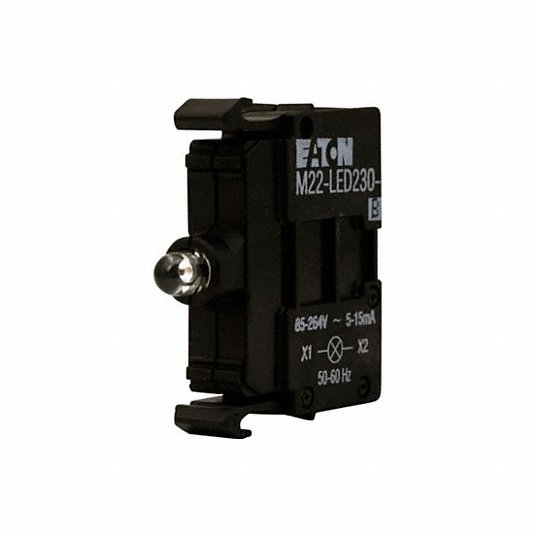

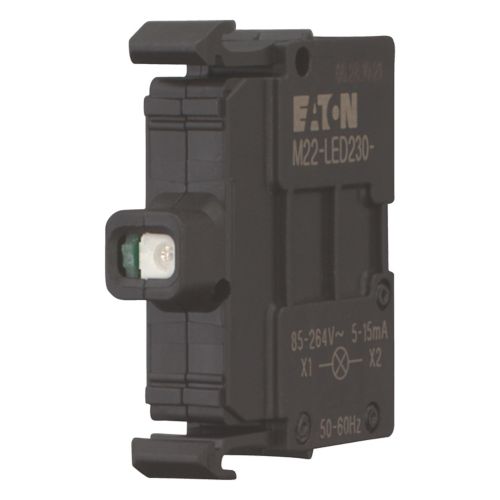

Eaton M22-LED230-B LED Block 85-264VAC

Product Description

The EATON M22-LED230-B is an illuminated light unit from the M22 series. This LED lamp operates on 85 to 264 VAC and features a screw terminal for connectivity. It is designed for flush mounting and commonly used in electrical assemblies, panels, OEMs, and automation equipment.

• NEMA 4X/13/IP66 enclosure rating
• LED lamp with a lifespan of 10,000 hours
• Mounts in a standard 22mm notched hole

Product Highlights

This LED block is ideal for use with M22 pushbuttons and selector switches, offering lower power consumption than incandescent alternatives.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-LED230-B
• Country of Origin: Germany

Technical Specifications

• Application: Electrical Assemblies, Panels, OEMs, Automation and Logic Control Equipment Applications
• Color: Blue
• Dimensions: 1.46 in L x 1.18 in W x 1.03 in H
• Lamp Type: LED
• Manufacturer Part Number: M22-LED230-B
• Mounting Type: Flush
• Series: M22
• Size: 22.5 mm
• Standards/Approvals: BAA Compliant|UL Listed|CCC Certified|CE Certified|CSA Certified|Federal Specification W-C-375B|HACR Rated|Lloyd's Register|GOST-R Certified|Bureau Veritas Approved
• Terminal Type: Screw
• Voltage Rating: 85 to 264 VAC
• Product Length/Depth: 2 in
• Product Height: 1 in
• Product Width: 2 in
• Product Weight: 0.05 lb
• Compliances: CE Marked Bureau Veritas GoST-R
• Certifications: CCC Marked CSA Certified Lloyd's Register Certified
• Product Type: Modular pushbutton
• Environmental rating: IP66, NEMA 4X, 13
• Illumination: Illuminated
• Actuator: Screw
• Brand: Moeller Electric
• IP Rating: IP65; IP66; IP67; IP69K
• NEMA Enclosure Rating: 1; 3; 3R; 4; 4X; 12; 13
• Panel Mounting Hole Diameter: 22 mm
• Terminal Connection Type: Screw Terminals
• LED Color: Blue
• IP / NEMA Rating: IP20
• Model: 218059
• Rated impulse withstand voltage (Uimp): 6000 V AC
• Ambient operating temperature - max: 70 °C
• Ambient operating temperature - min: -25 °C
• Ambient storage temperature - max: 80 °C
• Ambient storage temperature - min: -40 °C
• Equipment heat dissipation, current-dependent Pvid: 0 W
• Force for positive opening - min: 0 N
• Heat dissipation capacity Pdiss: 0 W
• Heat dissipation per pole, current-dependent Pvid: 0 W
• Operating torque: 0.8 Nm
• Rated insulation voltage (Ui): 500 V
• Rated operational current (Ie) - max: 15 mA
• Rated operational current (Ie) - min: 5 mA
• Rated operational current for specified heat dissipation (In): 0 A
• Rated operational voltage (Ue) at AC - max: 264 V
• Rated operational voltage (Ue) at AC - min: 85 V
• Static heat dissipation, non-current-dependent Pvs: 1 W
• Voltage type: AC
• Fastening type: Front fastening
• Mounting position: As required
• Connection type: Front fixing
• Overvoltage category: III
• Connection type (auxiliary circuit): Screw connection
• Degree of protection: IP20
• Lamp holder: None
• Power consumption: Max. 0.33 W
• Radiated RFI: 10 V (IEC/EN 61131-2:2008, Level 3)
• Radio interference class: Class A (EN 55011)
• Lifespan, electrical: 100,000 h (at 25°C, according to EN60064)
• Terminal capacity (stranded): 0.5 - 2.5 mm²
• Shock resistance: Mechanical, According to IEC/EN 60068-2-27 30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
• Terminal capacity (solid): 0.75 - 2.5 mm²
