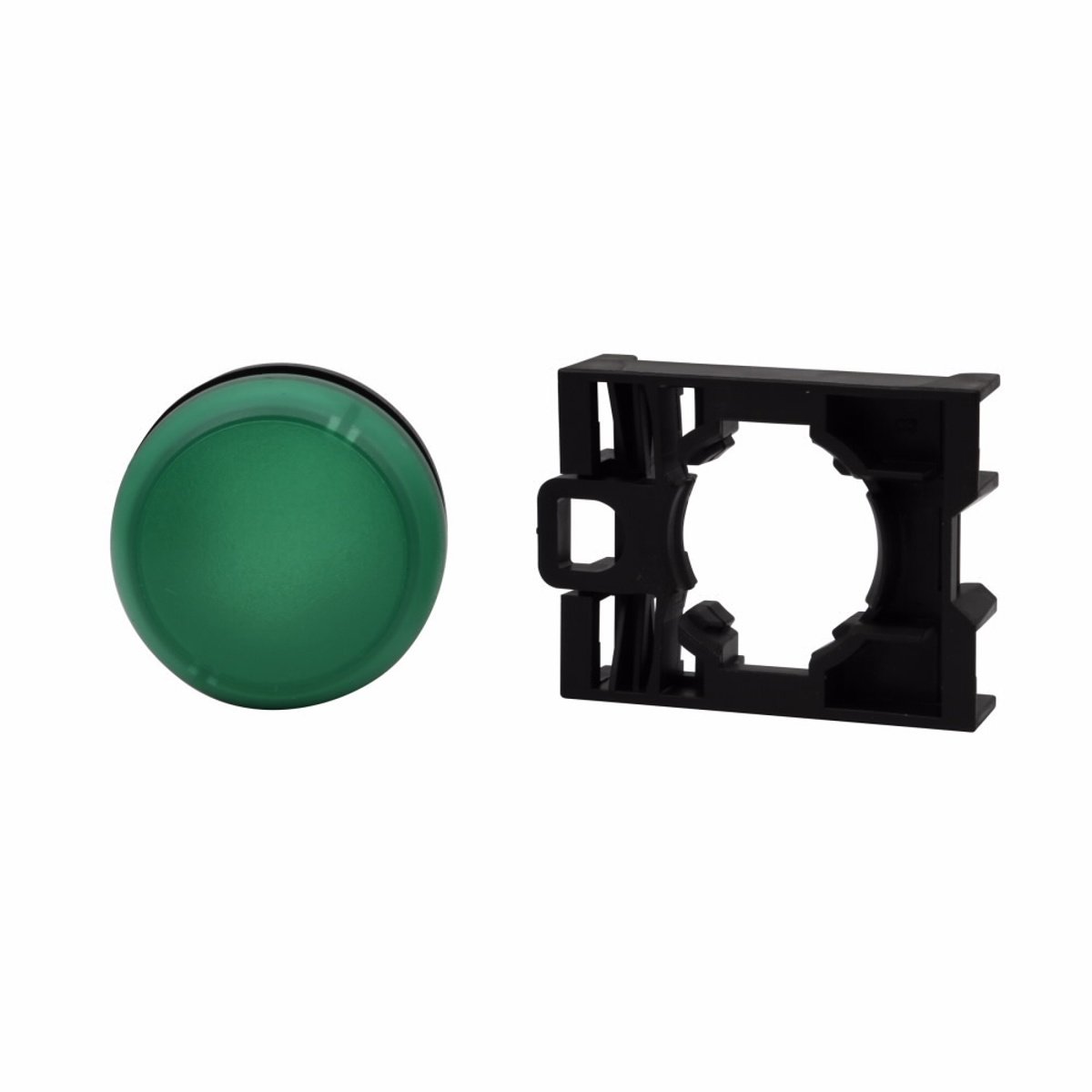

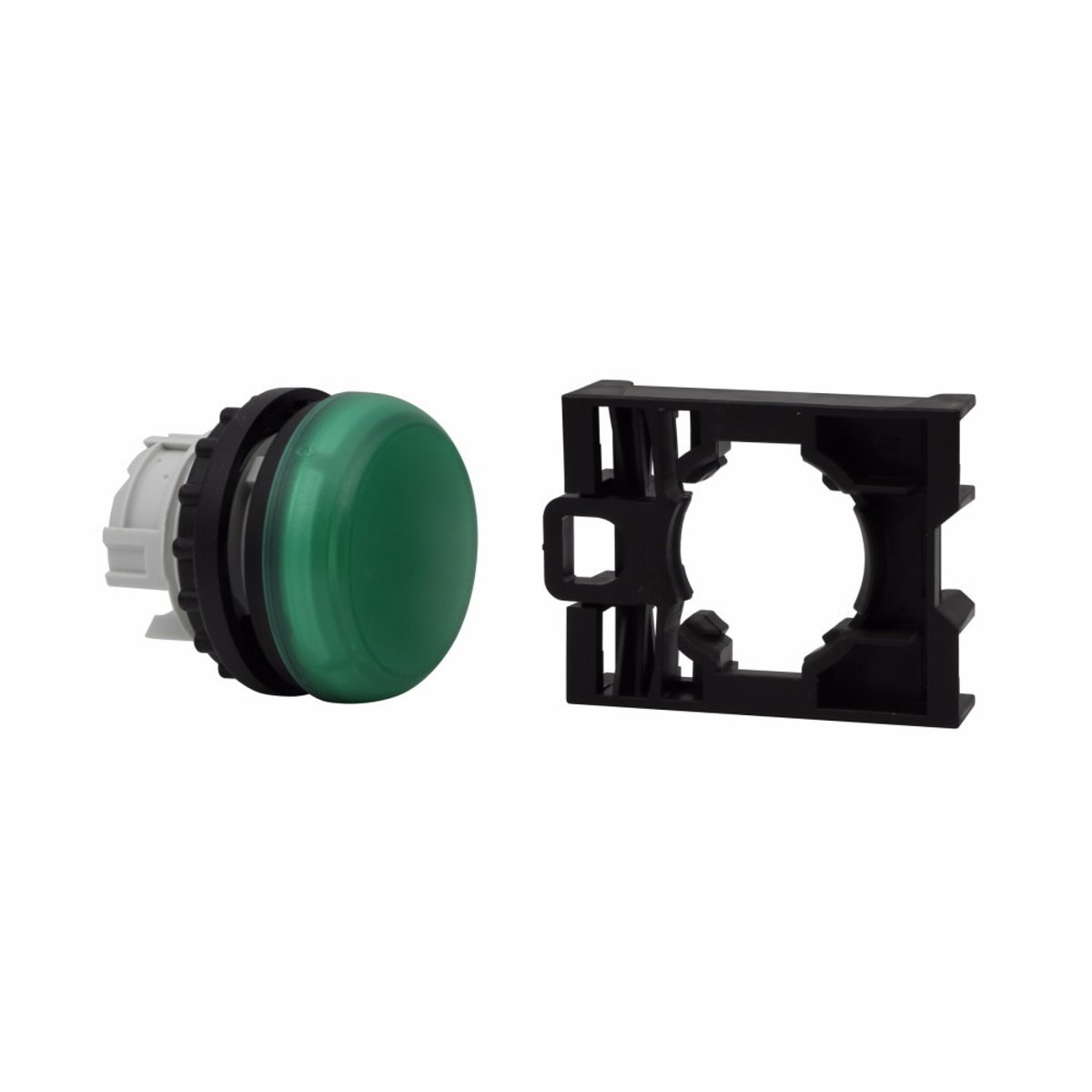

Eaton M22-L-G Modular Pushbutton Indicating Light Operator 22.5 mm

Product Description

The EATON M22-L-G is a modular pushbutton indicating light operator with a flush design. This line of pushbuttons features a space-saving construction for fast assembly. The indicating lights use a bright LED unit and lenses designed for high visibility. Most operators and contact blocks exceed five million mechanical operations.

• Customizable laser engraving on all lenses
• LED offering for improved brightness quality and up to 100000 hr of operation
• Modular construction makes assembly fast and simplifies stocking of components

Product Highlights

Eaton M22 pilot devices are the industry standard for reliability and functionality. The M22-L pilot lights provide versatility and reliability for applications in any environment.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-L-G
• Country of Origin: Germany

Technical Specifications

• Catalog Number: M22-L-G
• Manufacturer: Eaton
• Brand: Eaton
• Country of Origin: Germany
• Made in USA: No
• Application: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Standard: Lloyd's Register Certified,CSA Certified,CCC Marked,GoST-R,CE Marked,Bureau Veritas
• UPC: 786685278551
• GTIN: 00786685278551
• Item Type: Modular pushbutton
• Size: 22.5 mm
• Enclosure Type: NEMA 4X/13/IP66/IP67/IP69K
• Lamp Type: LED
• Material: Plastic
• Series: M22
• Temperature Rating: -13 to 158 deg F
• Voltage Rating: 120/240 VAC
• Operator Type: Flush Button
• Contact Mode: Momentary
• Product Length/Depth: 2 in
• Product Height: 1 in
• Product Width: 2 in
• Product Weight: 0.1 lb
• Compliances: CE Marked Bureau Veritas GoST-R
• Certifications: CCC Marked CSA Certified Lloyd's Register Certified
• Catalog Notes: Includes contact block mounting adapter.
• Product Type: Modular pushbutton
• Environmental rating: IP66, NEMA 4X, 13, Rk resistance 4.7
• Operating Cycles: 100,000 Hours of operation
• Illumination: Illuminated
• Actuator: Flush
• Includes: Frame, Standard Terminals and Mounting Hardware
• Standards/Approvals: UL 489|CSA C22.2 File No. 5-02|CCC Certified|CE Certified|NEC Certified|IEEE 1584-2002|IEC 60947-2|Federal Specification W-C-375B|HACR Rated|Lloyd's Register|GOST-R Certified|Bureau Veritas Approved
