Eaton M22-L-B Modular Pushbutton

Product Description

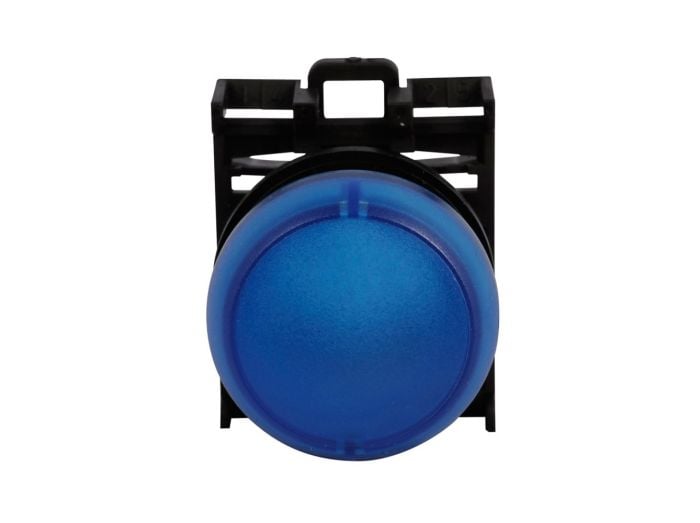

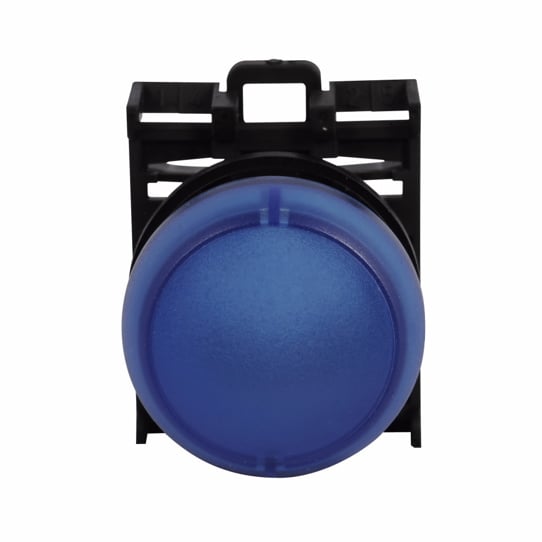

The Eaton M22-L-B modular pushbutton is an indicating light operator with a flush actuator. This illuminated pushbutton is rated IP66, NEMA 4X, and 13, with an operating life of 100,000 hours. The space-saving modular construction allows for fast assembly and simplifies stocking.

• Indicating Light Operator
• Flush
• IP66, NEMA 4X, 13 rated
• 100, 000 Hours of operation

Product Highlights

The M22 series pushbuttons feature bright LED illumination and rugged design for demanding industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-L-B
• Country of Origin: Germany

Technical Specifications

• Product Name: Eaton M22 modular pushbutton
• Catalog Number: M22-L-B
• UPC: 786685278520
• Compliances: CE Marked Bureau Veritas GoST-R
• Certifications: CCC Marked CSA Certified Lloyd's Register Certified
• Catalog Notes: Includes contact block mounting adapter.
• Product Type: Modular pushbutton
• Type: Indicating Light
• Environmental rating: IP66, NEMA 4X, 13
• Operating Cycles: 100,000 Hours of operation
• Illumination: Illuminated
• Series: M22
• Size: 22.5 mm
• Actuator: Flush
• Application: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Standard: CCC Marked,Lloyd's Register Certified,CSA Certified,GoST-R,CE Marked,Bureau Veritas
• GTIN: 00786685278520
• Item Type: Modular pushbutton
• Manufacturer Part Number: M22-L-B-230B
• Manufacturer: Eaton
• Product Series: M22
• Family Series: Eaton Pilot Lights, M22 Series
• Push-to-Test: No
• Mounting: 22 mm
• Lamp Type: LED
• Lens/Button Shape: Flat Round
• Lens Color: Blue
• Bezel: Black Plastic
• Nominal Lamp Voltage: 120 VAC, 240 VAC
• Protection Rating: IP67, IP69K
• Terminal Type: Screw
• NEMA Rating: NEMA 13, NEMA 4X
• Model: M22-L-B
• Button Color: Blue
• Coil Voltage: N/A
• Power Source: N/A
• Number of Batteries: N/A
• Battery Size: N/A
• Battery Included: No
• Motor Type: N/A
• Battery Capacity: N/A
• Battery Life: N/A
• Cable Length: N/A
• IP Rating: IP66
