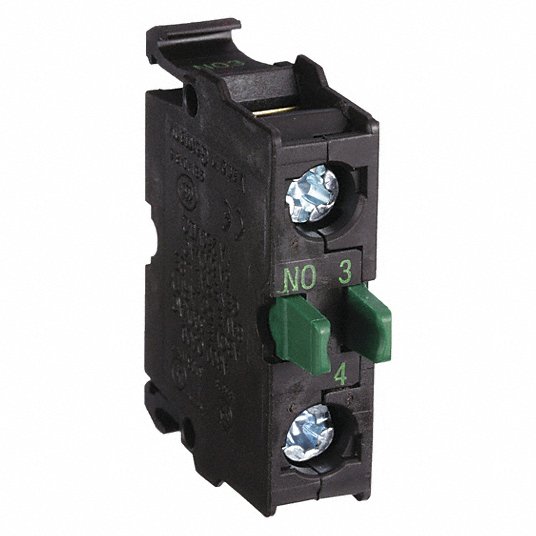

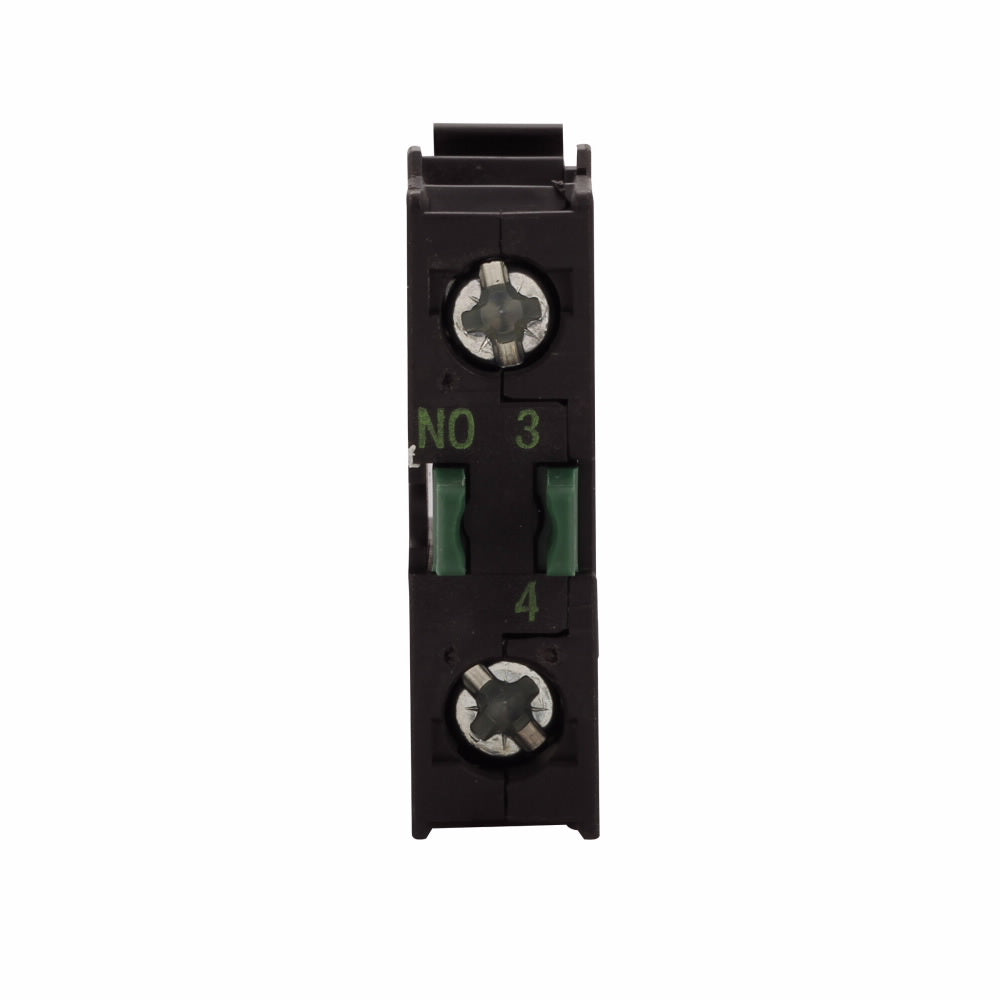

Eaton M22-KC10 Contact Block 1NO

Product Description

The EATON M22-KC10 is a non-illuminated contact block from the M22 series. This 22.5 mm block features a 1NO contact configuration and is suitable for automation and logic control equipment applications. It has a screw terminal and is designed for surface mounting.

• Ergonomic design ensuring ease of operation and bright illumination
• Vibration resistant LEDs giving a minimum life of 100000 hr for improved reliability and high integrity
• Fitting in the standard 22.5 mm hole, the snap fitting modular system saves both assembly and fitting time

Product Highlights

Eaton's M22 contact block offers reliable connectivity with its positively driven NC contacts and vibration-resistant LEDs.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-KC10
• Country of Origin: Germany

Technical Specifications

• Application: Automation and Logic Control Equipment Applications
• Contact Configuration: 1NO
• Contact Rating: 4 A at 230 VAC, 2 A at 500 VAC
• Enclosure: IP66
• Manufacturer Part Number: M22-KC10
• Mounting Type: Surface
• NEMA Rating: NEMA 4X/13
• Series: M22
• Size: 22.5 mm
• Standards/Approvals: UL 489|CCC Marked|CE Marked|CSA 22.2|HACR Rated|Lloyd's Register Certified|GoST-R Certified|Bureau Veritas Certified
• Terminal Type: Screw
• Type: Non-Illuminated
• Product Length/Depth: 1.46 in
• Product Width: 1.18 in
• Compliances: CE Marked Bureau Veritas GoST-R
• Certifications: CCC Marked CSA Certified Lloyd's Register Certified
• Catalog Notes: All NC contact blocks are positively driven contact
• Product Type: Pushbutton accessory
• Special features: NC contact blocks are positively driven
• Actuator: Base, screw
• Environmental rating: IP66, NEMA 4X, NEMA 13
• Brand: EATON
• Compatible with Series: M22; M22M
• Compatible Operator: Push Button
• AC Contact Rating: 2 A @ 500 V; 4 A @ 400 V; 6 A @ 115 V; 6 A @ 230 V
• Contact Form: 1NO
• NEMA Contact Rating Designation: A600/Q300
• Panel Mounting Hole Diameter: 22 mm
• Standards: Bureau Veritas; CCC; CE; CSA; GOST-R; Lloyd's Register
• Switch Action: Momentary
• Terminal Connection Type: Spring Cage
• Terminals: UNSPSC 39121512
