Product Description

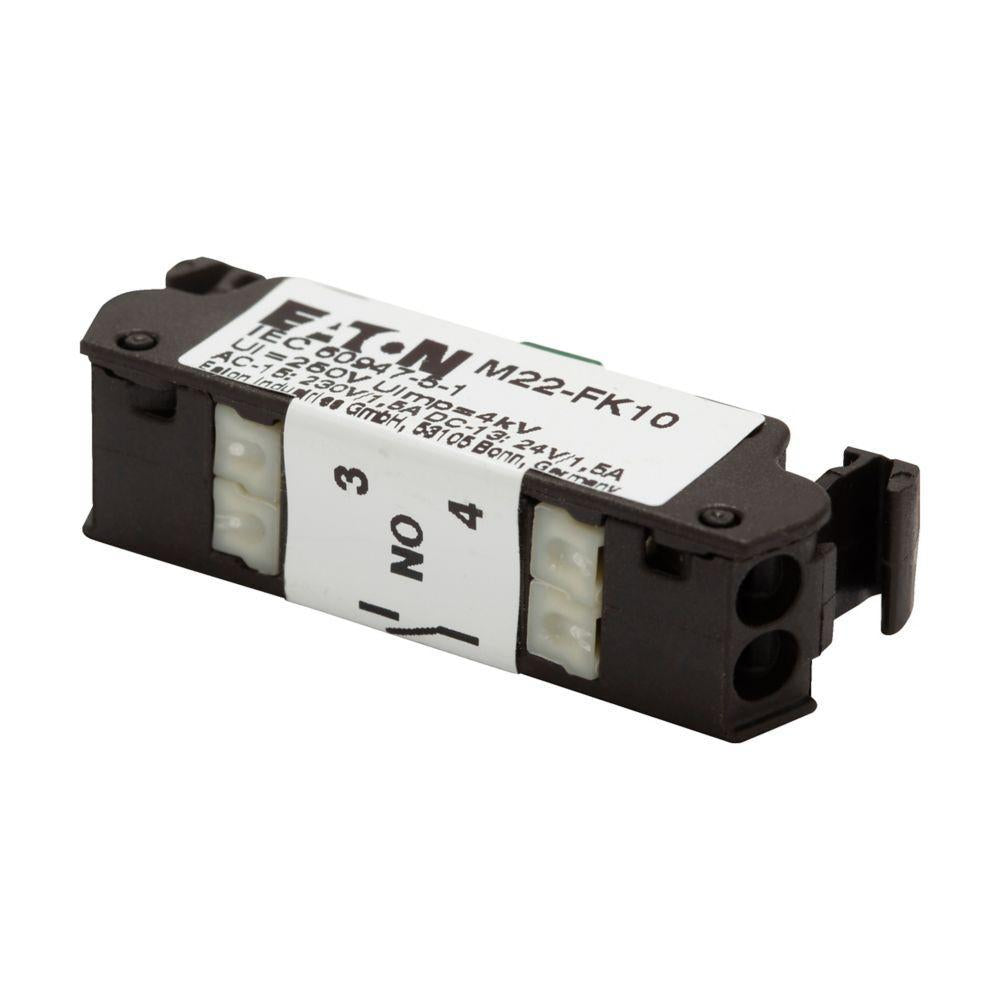

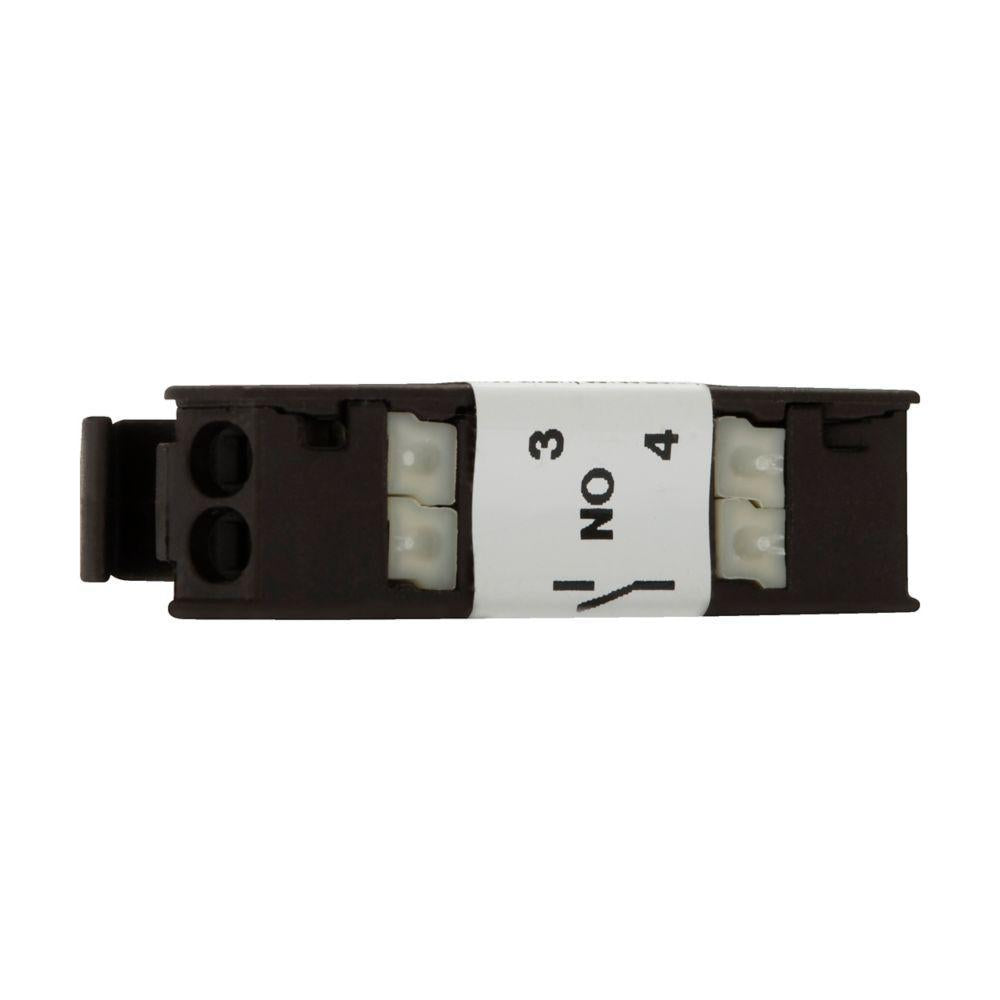

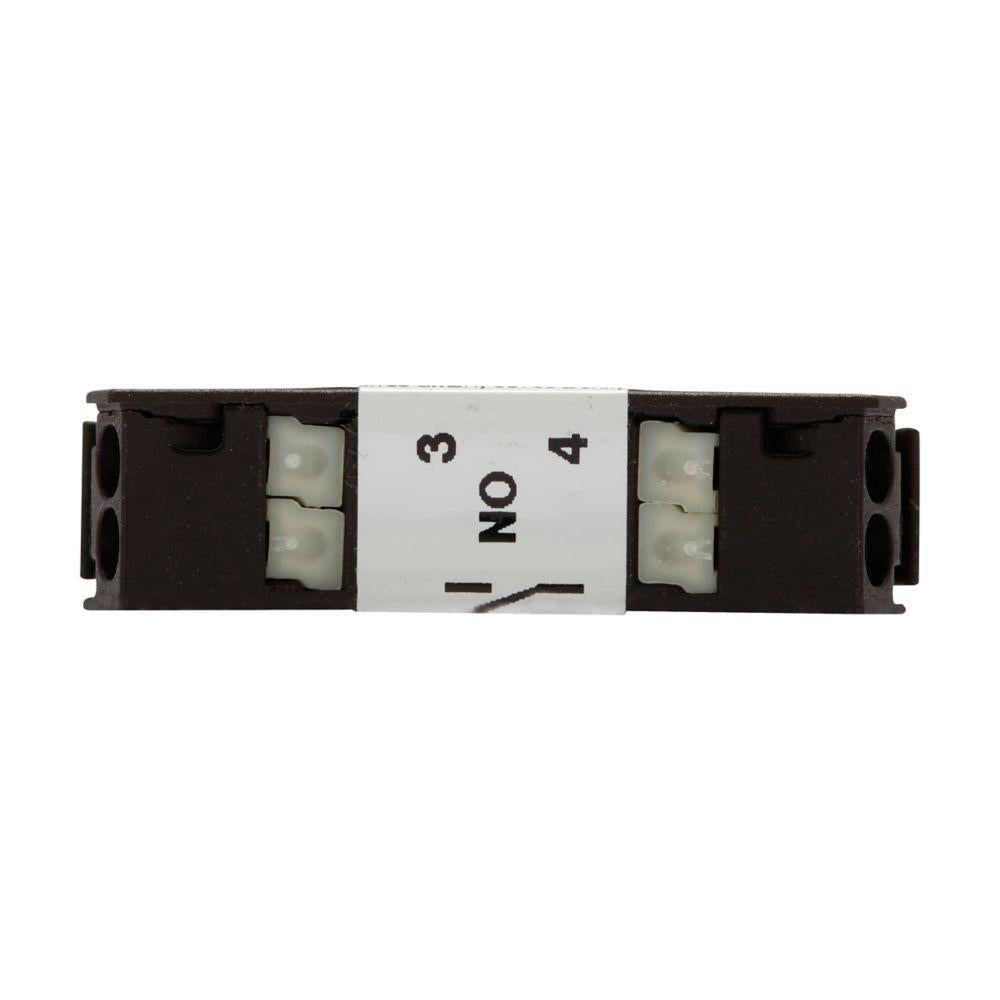

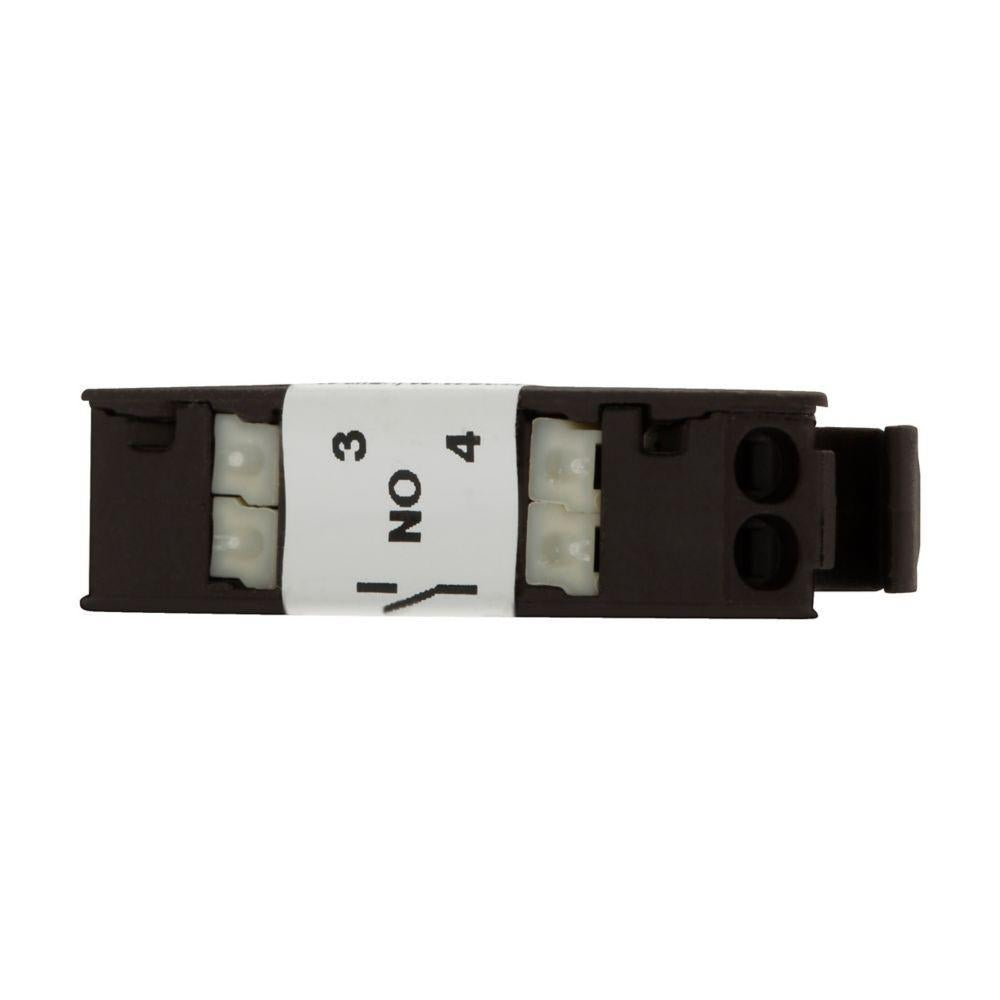

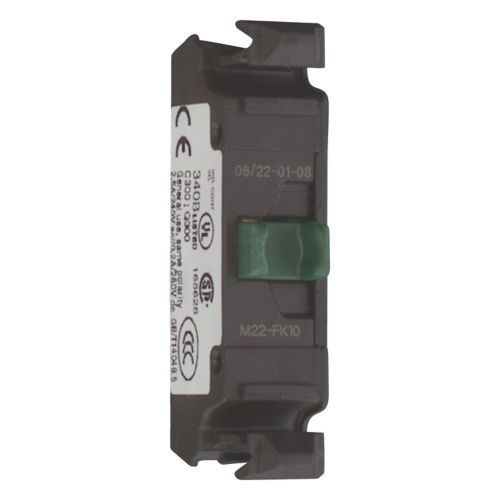

The EATON M22-FK10 is a contact block featuring a space-saving construction for fast assembly. The rugged design ensures most operators and contact blocks exceed five million mechanical operations. It has a flat rear and cage clamp. This contact block is suitable for electrical assemblies, panels, and OEM applications.
- Flat rear
- Cage clamp
- Slim line contact block
Product Highlights
Eaton's M22 contact block offers a space-saving design and rugged construction for reliable performance in various applications.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: M22-FK10
Technical Specifications
-
Dimensions: 4 in L x 3 in W x 1 in H
-
Operator Type: Push Button
-
Series: M22
-
Contact Configuration: 1NO
-
Product Name: Eaton M22 pushbutton contact block
-
Catalog Number: M22-FK10
-
UPC: 786689026073
-
Product Length/Depth: 4 in
-
Product Height: 1 in
-
Product Width: 3 in
-
Product Weight: 0.006 lb
-
Certifications: UL CSA CE
-
Product Type: Pushbutton accessory
-
Application: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
-
Special features: SLIM LINE CONTACT BLOCK
-
Date: Wed May 06 2026
-
Category: Switches
-
Configurable Switch Components: Configurable Switch Contact Blocks
-
Circuit: SPST-NO
-
Manufacturer: Eaton Electrical
-
Requires: Switch Body
-
Termination Style: Spring Terminal
-
Packaging: Bag
-
Contact Rating @ Voltage: 6A @ 240VAC, 3A @ 24V DC
-
Part Status: Active
-
Compatible Series: Eaton, M22 and M22M
-
UNSPSC Code: 39120000
-
Brand: Eaton - Cutler Hammer
-
Family Name: Global Modular Family
-
Manufacturer Part Number: M22-FK10
-
ProductVideoURL: https://www.youtube.com/embed/hIbgCpi2PQ8
-
Termination: screw
-
Unit of Measure: EA
-
UPC Code: 786689026073
-
MPN: M22-FK10
-
Electric connection type: Spring clamp connection
-
Operating frequency: 3600 Operations/h
-
Pollution degree: 3
-
Climatic proofing: Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78 Dry heat to IEC 60068-2-2
-
Actuating force - max: 4.5 N
-
Ambient operating temperature - max: 70 °C
-
Ambient operating temperature - min: -25 °C
-
Ambient storage temperature - max: 85 °C
-
Ambient storage temperature - min: -40 °C
-
Force for positive opening - min: 0 N
-
Number of contacts (change-over contacts): 0
-
Number of contacts (normally closed contacts): 0
-
Number of contacts (normally open contacts): 1
-
Number of switches (fault signal): 0
-
Connection to SmartWire-DT: No
-
Rated impulse withstand voltage (Uimp): 4000 V AC
-
Connection type: Front fixing Cage Clamp Push-in clamp
-
Mounting method: Front fastening
-
Overvoltage category: III
-
Degree of protection: IP20
-
Model: Top mounting
-
Lamp holder: None
-
Rated operational current (Ie): 2 A at AC-15, 110 V 4 A at AC-15, 60 V
-
Lifespan, mechanical: 1,000,000 Operations (AC operated)
-
Short-circuit protection: FAZ-B4, Contacts, Max. short-circuit protective device, Fuseless
-
Short-circuit protection rating: Max. 4 A gG/gL, Fuse, Contacts
-
Rated insulation voltage (Ui): 250 V
-
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V: 1.5 A
-
Rated operational current (Ie) at AC-15, 24 V: 4 A
-
Rated operational current (Ie) at DC-13, 110 V: 0.4 A
-
Rated operational current (Ie) at DC-13, 220 V, 230 V: 0.2 A
-
Rated operational current (Ie) at DC-13, 24 V: 1.5 A
-
Rated operational current (Ie) at DC-13, 60 V: 0.8 A
-
Terminal capacity (flexible with ferrule): Use WAGO Variocrimp 4 crimping tool; please enquire for others 2 x (0.25 - 1) mm²
-
Terminal capacity (solid): 2 x (0.2 - 1.5) mm² 2 x 1 (075 - 1.5) mm², Can be plugged without tools
-
Terminal capacity (solid/stranded AWG): 2 x (24 - 16)
-
Shock resistance: 50 g, Mechanical, according to IEC/EN 60068-2-27, Half-Sinusoidal shock 11 ms
