Eaton M22-ES-MS1 Pushbutton Key Actuator

Product Description

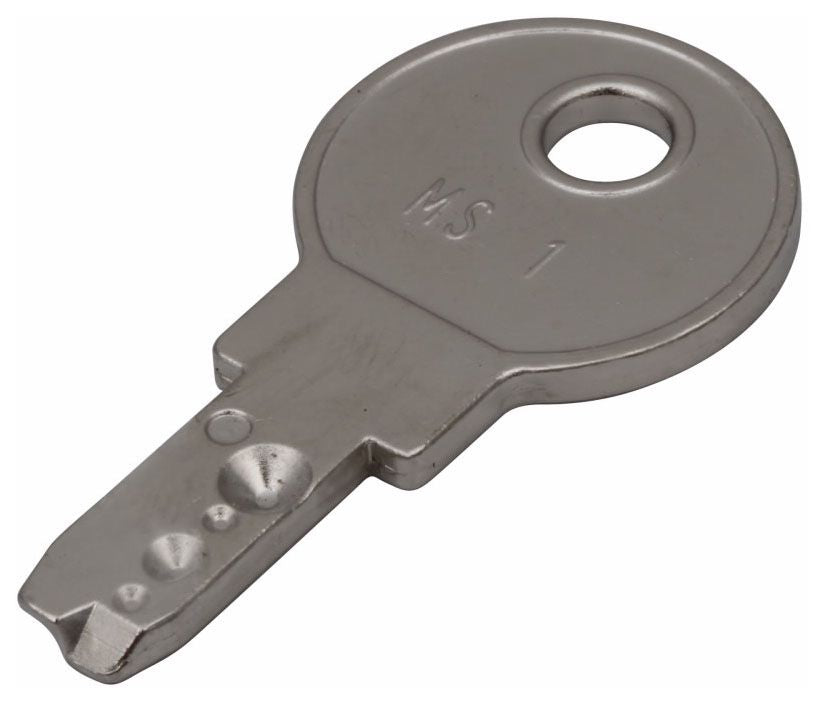

The EATON M22-ES-MS1 is a key-operated pushbutton actuator designed for industrial control panel applications. This component allows operators to use a physical key to engage or disengage a control circuit, adding a layer of access control to the switching function. It is part of the M22 modular pushbutton series and mounts to a standard front panel cutout. Electricians and control panel builders install this actuator when a circuit must be locked out or restricted to authorized personnel only. The unit weighs 0.05 pounds and measures 2 inches by 2 inches by 1 inch.

This key actuator is suited for residential, commercial, and light industrial control panels where access restriction is required. Typical applications include motor control centers, machine control stations, and HVAC equipment panels where unauthorized operation of a control circuit must be prevented. The M22 series modular design allows the actuator to be paired with compatible contact blocks, making it adaptable to a range of control circuit configurations.

Key Features

• Key-operated actuation restricts control circuit operation to authorized users
• Part of the M22 modular pushbutton platform for flexible panel assembly
• Compact footprint at 2 inches x 2 inches x 1 inch fits standard panel cutouts
• Lightweight construction at 0.05 pounds for easy panel integration
• Designed for front-panel mounting in industrial and commercial control enclosures

Compatibility

Designed as an OEM-style actuator for use with the EATON M22 modular pushbutton and operator series, compatible with M22-series contact blocks and mounting adapters.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements. De-energize the control panel completely before installing or replacing any pushbutton actuator. Secure the actuator body to the panel cutout using the appropriate M22-series mounting hardware and verify that all contact block connections are fully seated before restoring power.

Technical Specifications

• Weight: 0.05 pounds
• Length: 2 inches
• Width: 2 inches
• Height: 1 inch
• UPC: 78668528330

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-ES-MS1
