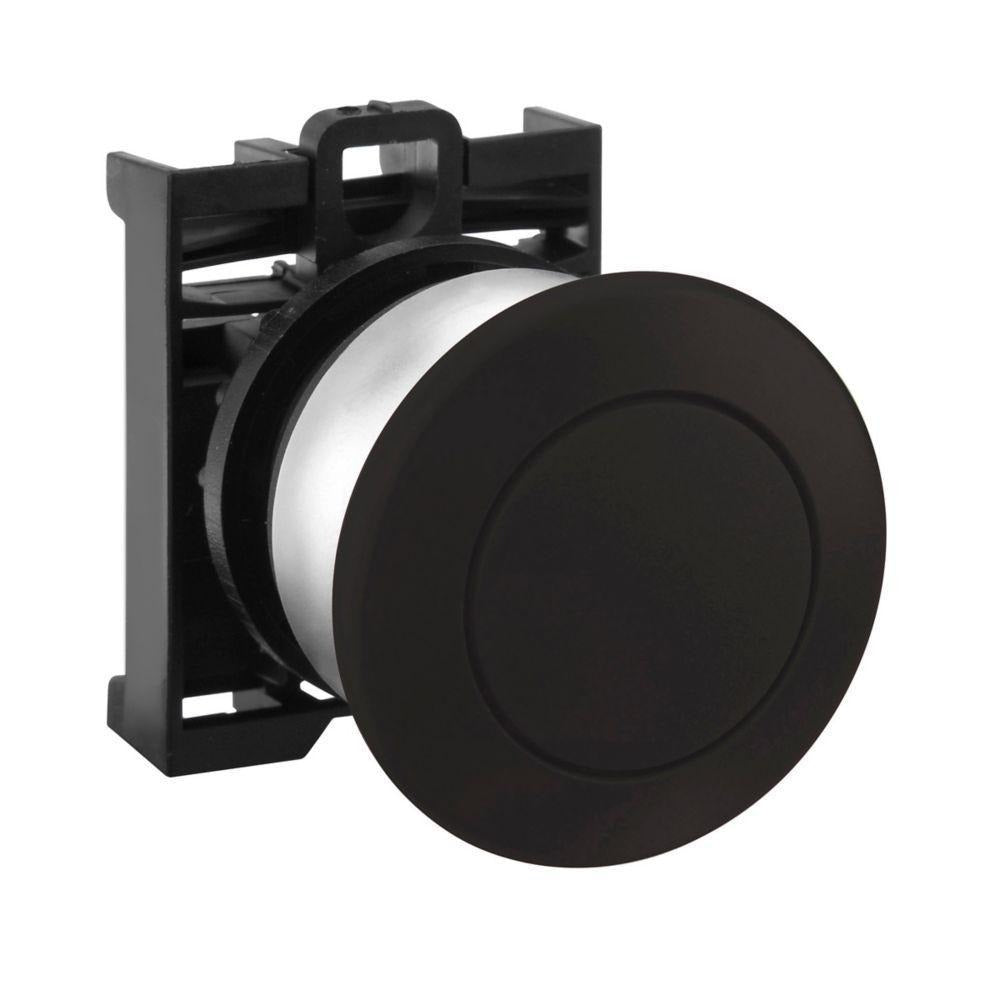

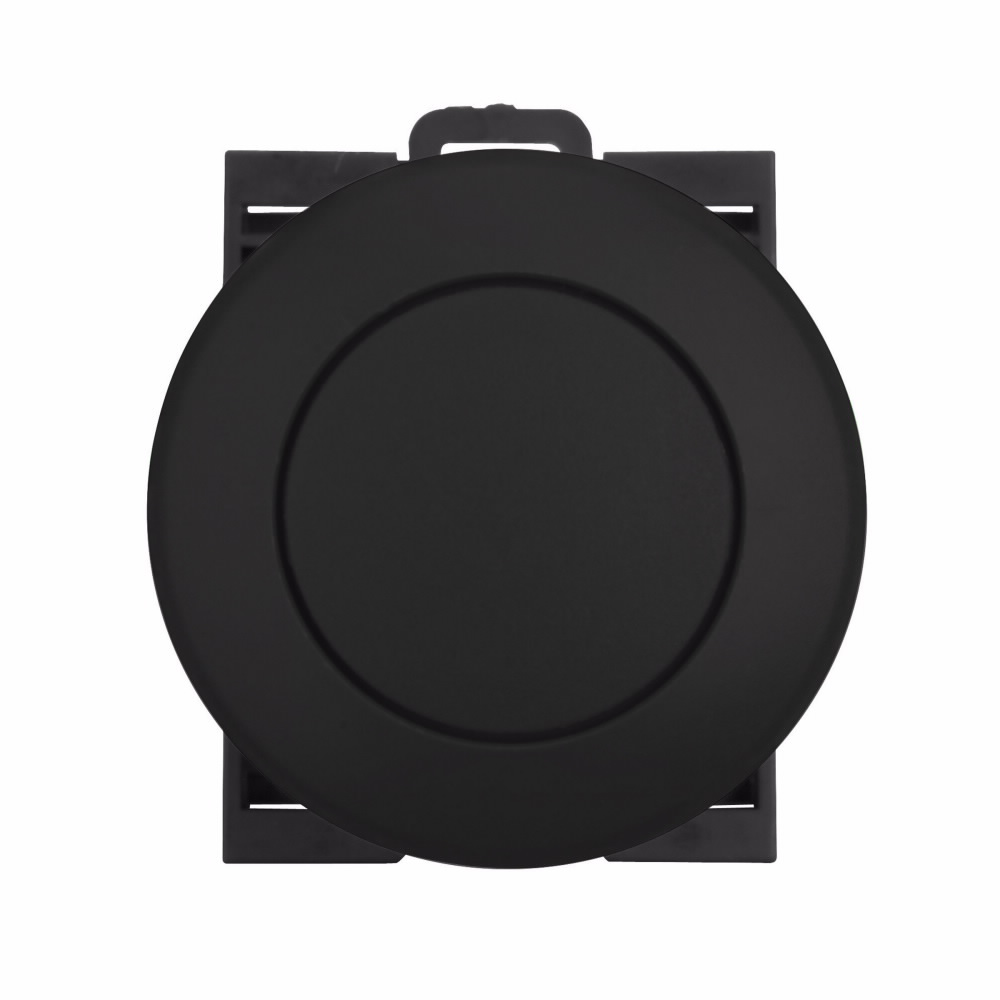

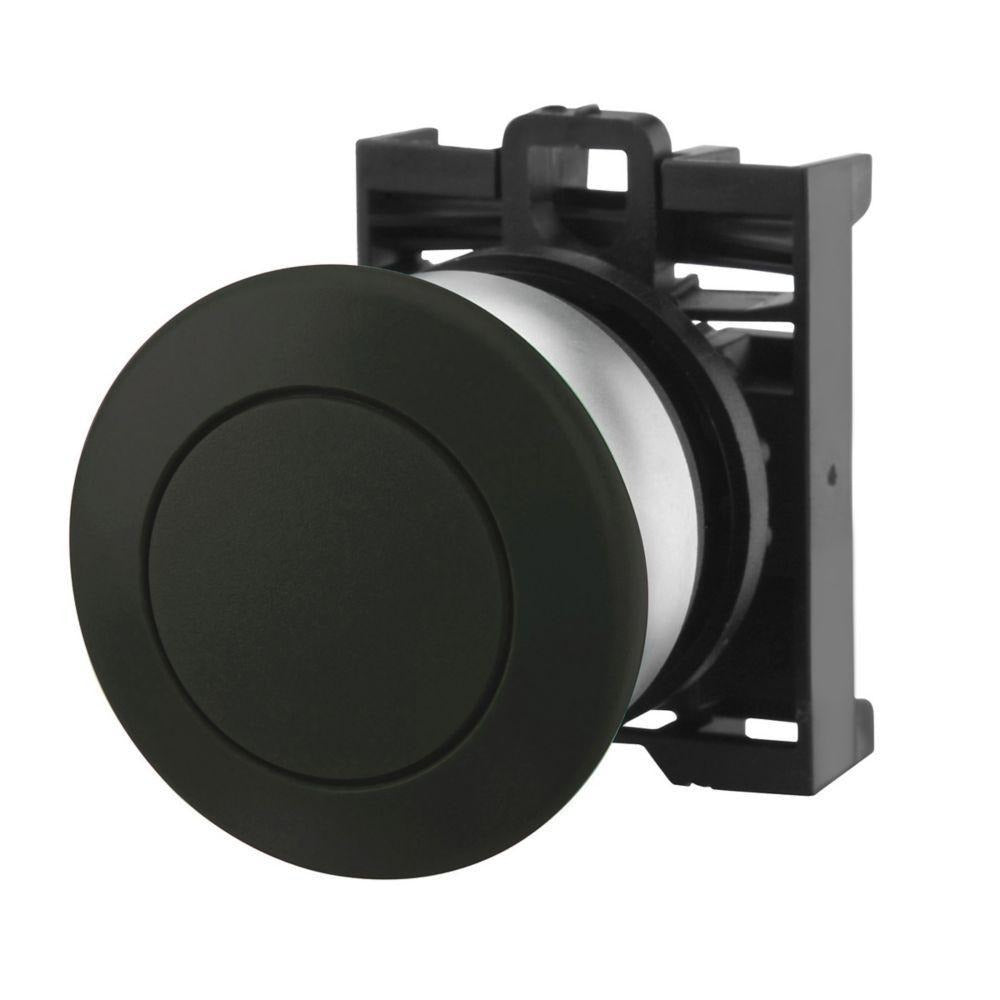

Eaton M22-DP-S Mushroom Pushbutton Operator 22.5 mm

Product Description

Eaton M22-DP-S is a modular mushroom pushbutton operator designed for momentary control in industrial equipment. The 22.5 mm, non-illuminated operator features a stainless steel bezel and enclosure, IP67/IP69K and NEMA 4X/13 protection, spring cage terminals, an operating temperature range of -13 to 158 °F, and a rated life of 5,000,000 mechanical operations. It is intended for stationary machinery and equipment outside the factory.

• Modular 22.5 mm mushroom actuator with momentary contact mode and non-illuminated design
• Stainless steel bezel and enclosure with IP67, IP69K and NEMA 4X/13 ratings; spring cage terminals
• Operating temperature -13 to 158 °F and rated for 5,000,000 mechanical operations

Product Highlights

Modular 22.5 mm mushroom pushbutton; momentary action; stainless steel construction; IP67/IP69K and NEMA 4X/13 protection; spring cage terminals; -13 to 158 °F; 5,000,000 cycles

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-DP-S
