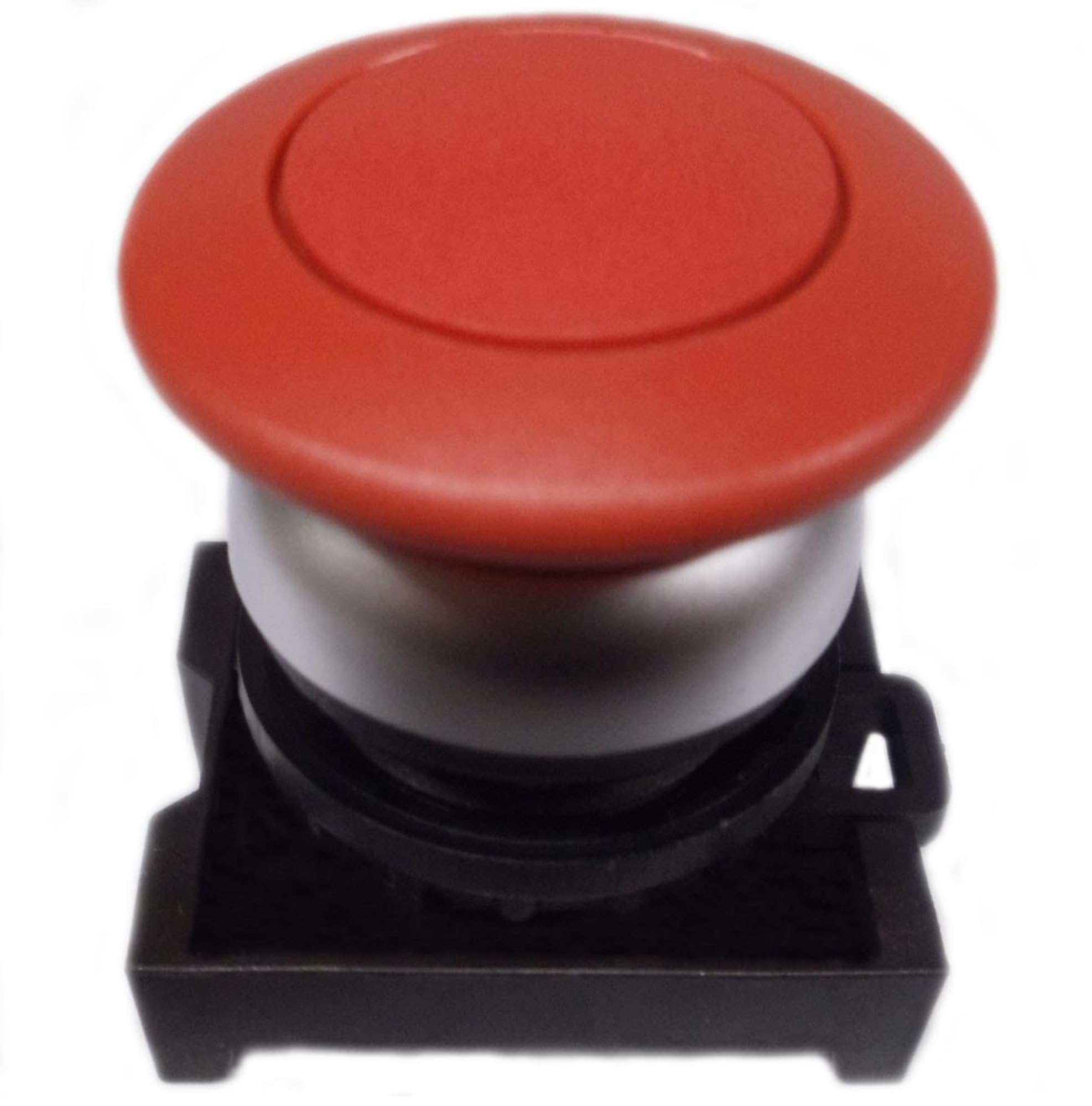

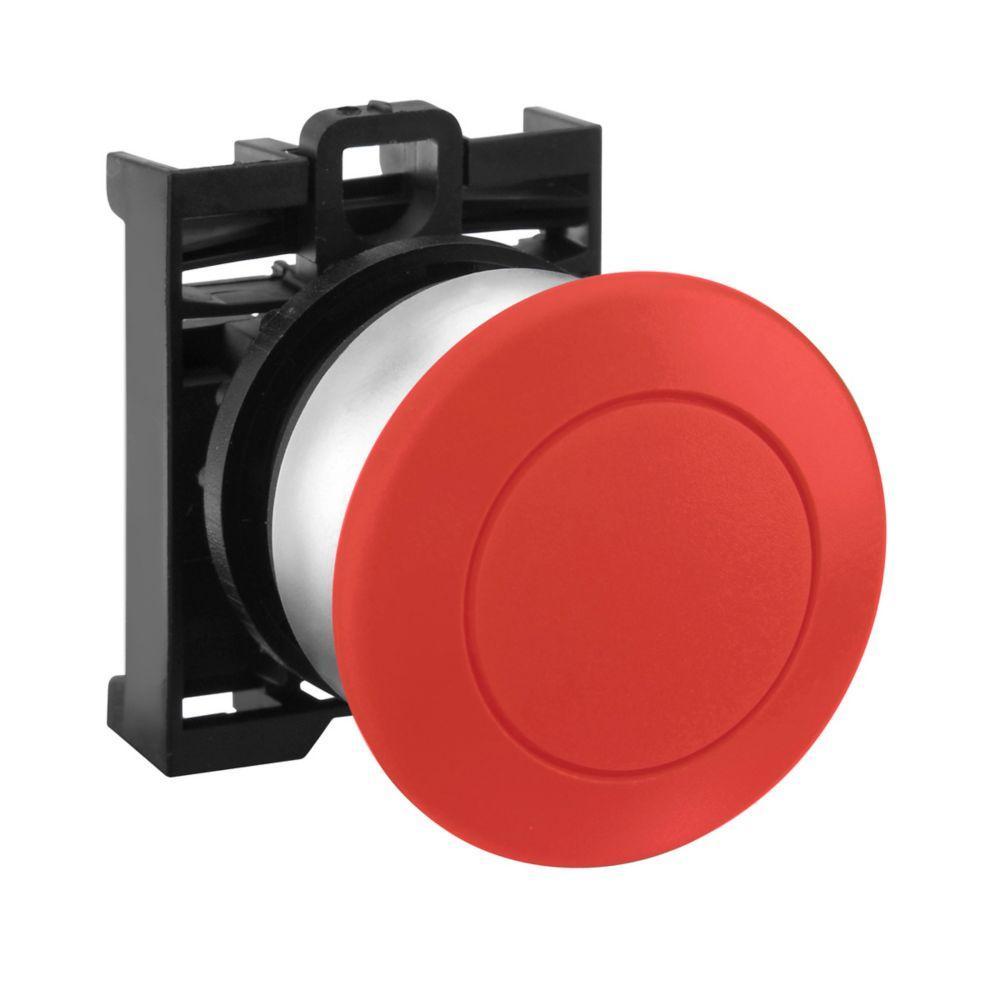

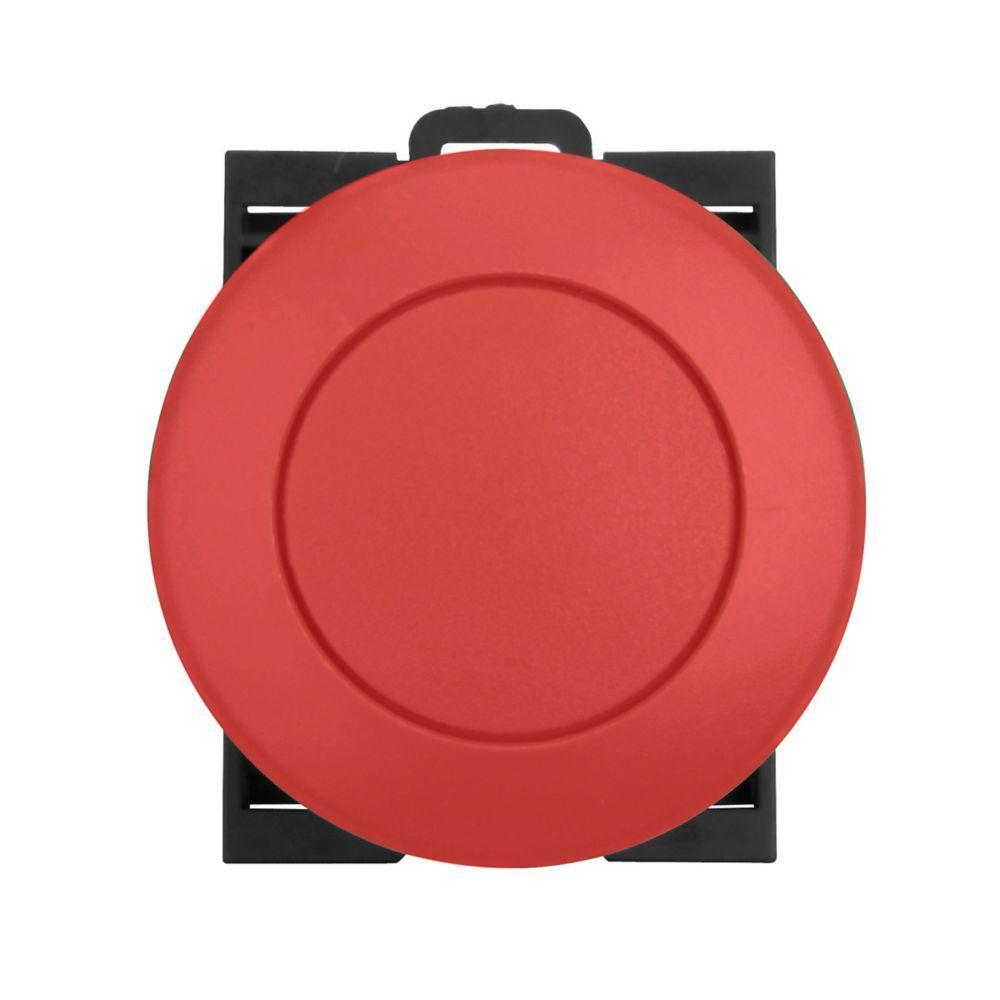

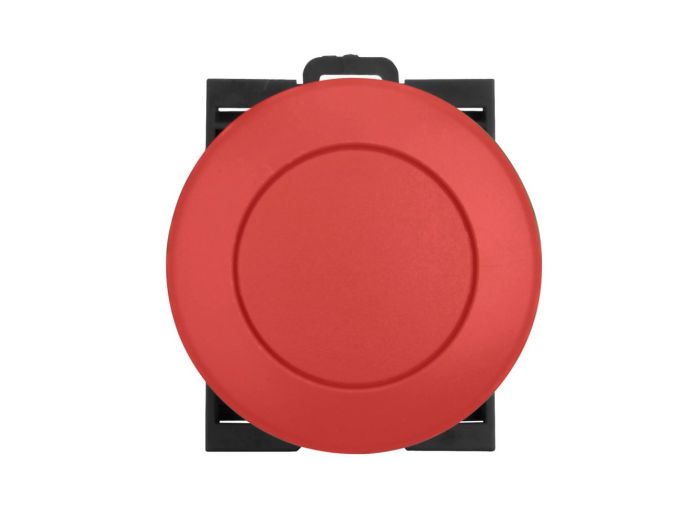

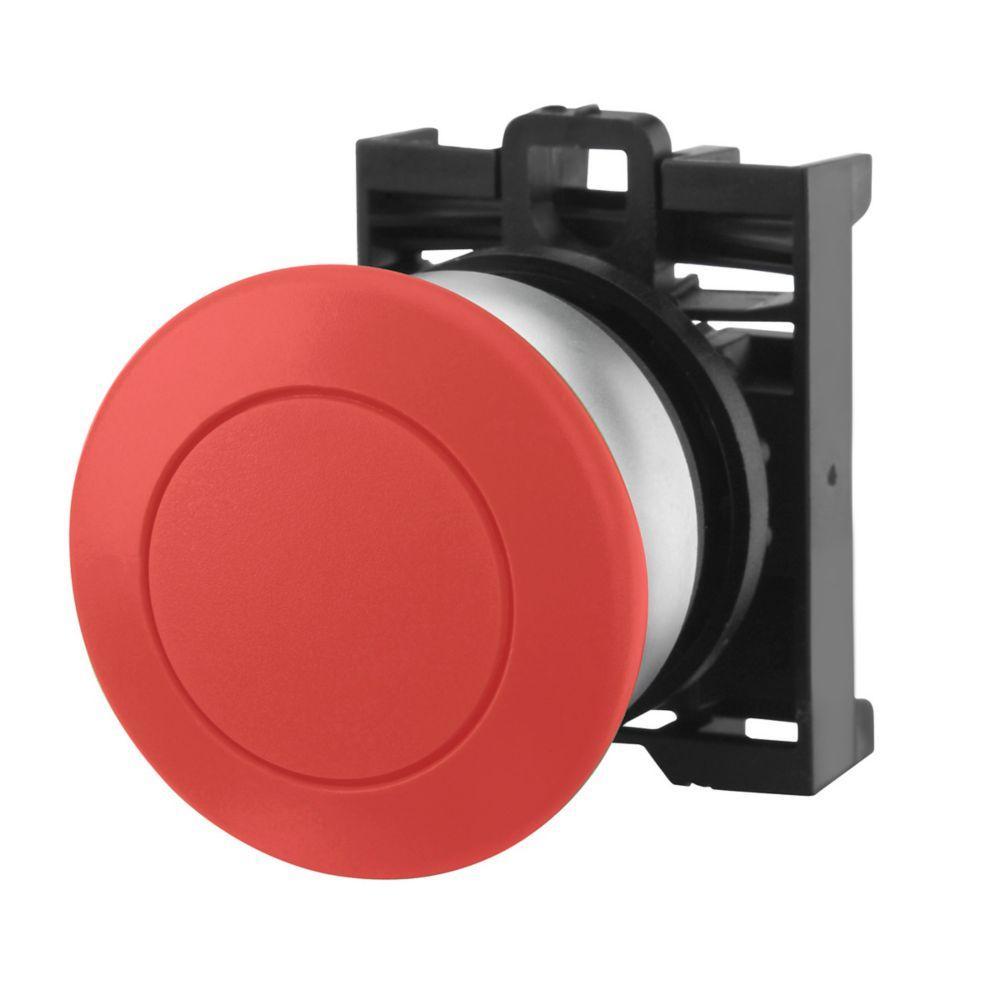

Eaton M22-DP-R M22 Modular Mushroom Pushbutton Operator 22.5 mm

EATON
Brand: EATON
SKU: M22-DP-R
Availability: In Stock

Ships same day if ordered by 12 pm
$31.62
$31.62
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The EATON M22-DP-R mushroom head operators offer standard pushbutton functionality. These maintained pushbuttons are field convertible to momentary. Features include customizable laser engraving and robust mechanical operations. They can be ordered as a ready to install complete device or as modular components.

  • Field convertible from maintained to momentary operation
  • Customizable laser engraving on all buttons
  • More than 5 million mechanical operations on momentary and 1 million on maintained pushbuttons

Product Highlights

Eaton M22 pushbuttons are durable and offer robust mechanical operations. They are field convertible and offer customizable laser engraving.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: M22-DP-R
Technical Specifications
Bezel/Housing
Silver Bezel
Contact Mode
Momentary
Enclosure Type
NEMA 4X/13/IP67/IP69K
Material
Plastic
Mounting Type
Panel
Operator Type
Mushroom Head
Series
M22
Temperature Rating
-25 to 70 deg C
Type
Modular
Size
22.5 mm
Brand
Eaton
Manufacturer
Eaton
Model / MPN
M22-DP-R
MPN
M22-DP-R
Product Type
Modular pushbutton
Product Length/Depth
1.44 in
Product Height
1.5 in
Product Width
1.44 in
Compliances
CE Marked GoST-R Bureau Veritas
Certifications
CSA Certified CCC Marked Lloyd's Register Certified
Catalog Notes
35 mm diameter mushroom head button. Includes contact block mounting adapter.
Actuator color
Red
Bezel
Silver
Actuator function
Momentary
Button color
Red
Actuator
Mushroom
Operating mode
Momentary
Illumination
Non-illuminated
Environmental rating
IP67, IP69K
Operating cycles
5 million
Degree of protection
NEMA 4X NEMA 13
Manufacturer Part Number
M22-DP-R
Family Series
Eaton Switches
For Use With
Eaton M22 Series Modular Pushbutton Switches
Product Range
RMQ-Titan M22 Series
SVHC
No SVHC (17-Dec-2015)
