Product Description

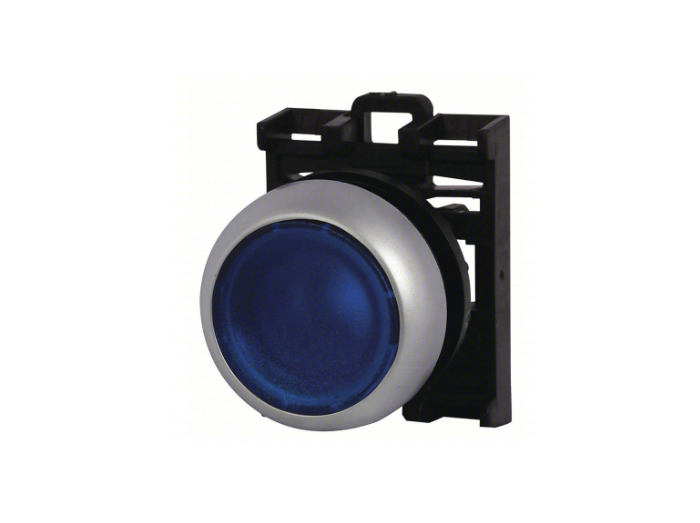

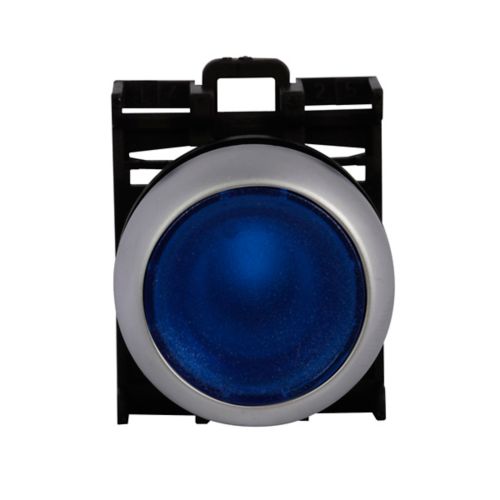

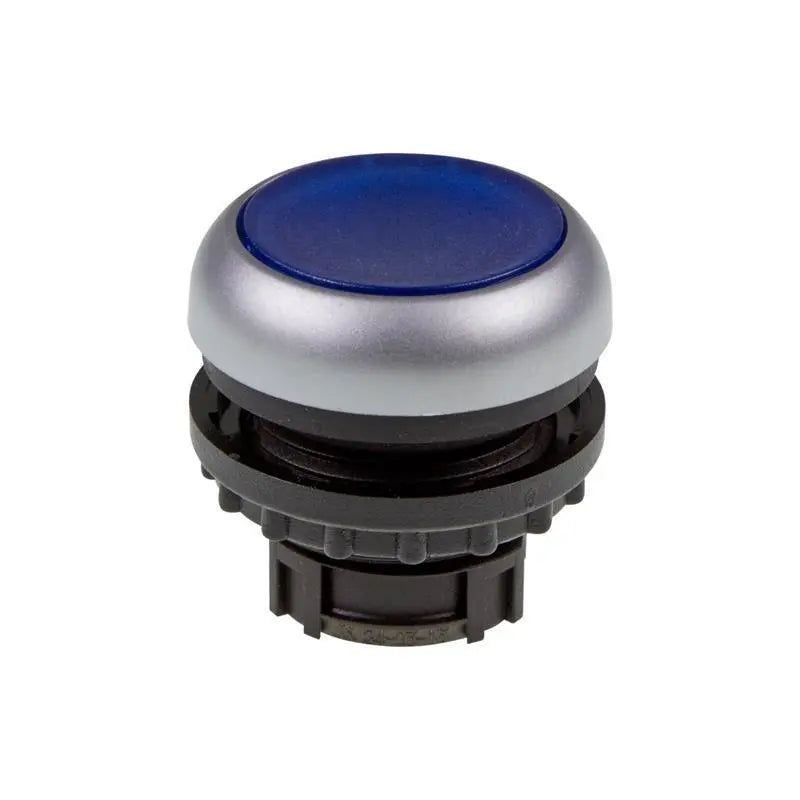

The Eaton M22-DL-B is a 22.5 mm modular pushbutton with momentary actuator function. This illuminated pushbutton features a silver bezel and a flush, blue button. It is designed for easy installation and is suitable for use in various industrial sectors. The M22 series offers a space-saving modular construction.
- M22 series
- 22.5 mm Modular
- Illuminated
Product Highlights
The Eaton M22-DL-B modular pushbutton is an illuminated, momentary switch with a silver bezel and blue button, designed for industrial applications.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: M22-DL-B
Technical Specifications
-
Product Name: Eaton M22 modular pushbutton
-
Catalog Number: M22-DL-B
-
UPC: 786685274584
-
Product Length/Depth: 1.17 in
-
Product Height: 0.39 in
-
Product Width: 1.17 in
-
Compliances: Bureau Veritas
-
Certifications: CCC Marked
-
Catalog Notes: Includes contact block mounting adapter.
-
Product Type: Modular pushbutton
-
Application: Pushbutton
-
Special features: M22 series
-
Type: 22.5 mm Modular
-
Bezel: Silver
-
Actuator function: Momentary
-
Button color: Blue
-
Actuator: Flush, button
-
Illumination: Illuminated
-
Series: M22
-
Environmental rating: IP67, IP69K, NEMA 4X, NEMA 13
-
Operating cycles: 5 million
-
Size: 22.5 mm
-
UNSPSC Code: 39120000
-
Action: Momentary
-
Actuator Color: Blue
-
Alternate Mfr Part Number: M22-DL-B
-
Body Style: Standard
-
Brand: Eaton - Cutler Hammer
-
Current Rating: 6 A
-
IP Rating: IP67
-
Manufacturer Part Number: M22-DL-B
-
Mounting Hole Size: 22.5 mm
-
Mounting Type: Panel Mount
-
Operation: Momentary
-
Operation Mode: Momentary
-
Primary Type: Pushbutton
-
Voltage Rating: 500 V
-
Category: Configurable Switch Bodies
-
Panel Cutout Dimensions: 22.5mm (Round)
-
Requires: Contact Block(s), Illumination Source
-
Flush: Yes
-
Blue: Yes
-
Protection: IP67/IP69K
-
Drilling dimensions: 22.5 mm
-
Enclosure: NEMA 4X NEMA 13
-
Operating mode: Momentary
-
Description: Pushbutton, Mom, 12-30VDC, Blu LED
-
Manufacturer: Eaton
-
Family Series: Eaton Switches
