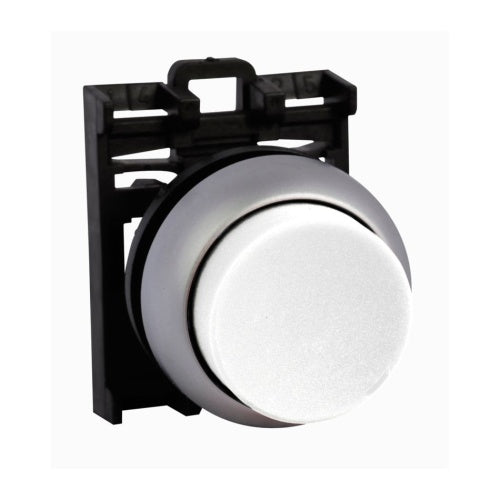

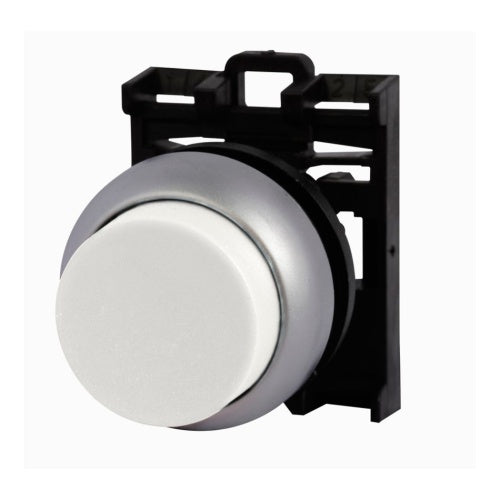

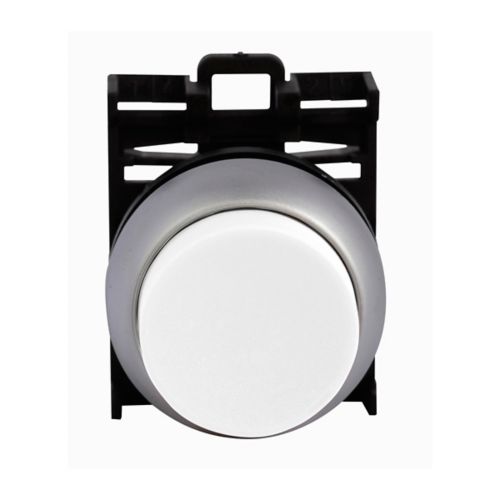

Eaton M22-DH-W Modular Pushbutton 22.5 mm

Product Description

The Eaton M22-DH-W is a modular pushbutton with a 22.5 mm size. This M22 series pushbutton features a momentary actuator function, a silver bezel, and a white button. It is non-illuminated and has an environmental rating of IP67, IP69K, NEMA 4X, and NEMA 13.

• Momentary actuator function
• Silver bezel and white button
• Rated IP67, IP69K, NEMA 4X, and NEMA 13

Product Highlights

The Eaton M22-DH-W modular pushbutton is ideal for various applications requiring a durable and reliable switch.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-DH-W

Technical Specifications

• Type: Pushbutton
• Bezel: Silver
• Actuator function: Momentary
• Button color: White
• Actuator: Extended, button
• Illumination: Non-illuminated
• Series: M22
• Environmental rating: IP67, IP69K, NEMA 4X, NEMA 13
• Operating cycles: 5 million
• Size: 22.5 mm
• Body Style: Standard
• Brand: Eaton - Cutler Hammer
• Current Rating: 6 A
• Legend: No Legend
• Manufacturer Part Number: M22-DH-W
• Mounting Hole Size: 22.5 mm
• Mounting Type: Panel Mount
• Operation: Momentary
• Primary Type: Pushbutton
• Voltage Rating: 500 V
• Category: Switches, Configurable Switch Components, Configurable Switch Bodies
• Manufacturer: Eaton Electrical
• Actuator Type: Pushbutton, Round
• Packaging: Bulk
• Compatible Series: Eaton, M22
• Part Status: Active
• Panel Cutout Dimensions: 22.5mm (Round)
• Requires: Contact Block(s)
• Type of switch: push-button
• Switch standard: 22mm
• Stable positions number: 1
• Actuator colour: white
• IP rating: IP67
• Button shape: prominent
• Switches features: witout symbol
• Manufacturer series: RMQ-Titan
• Number of positions: 2
• Mounting hole diameter:
