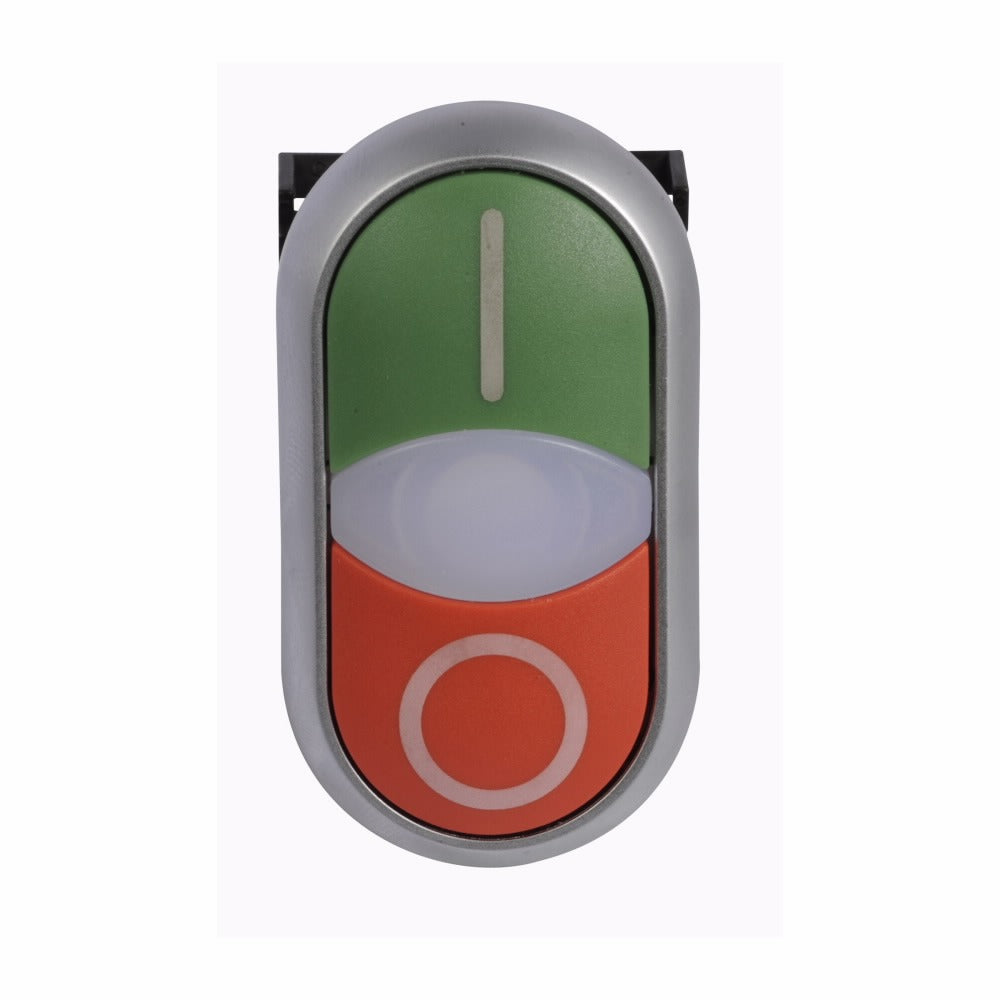

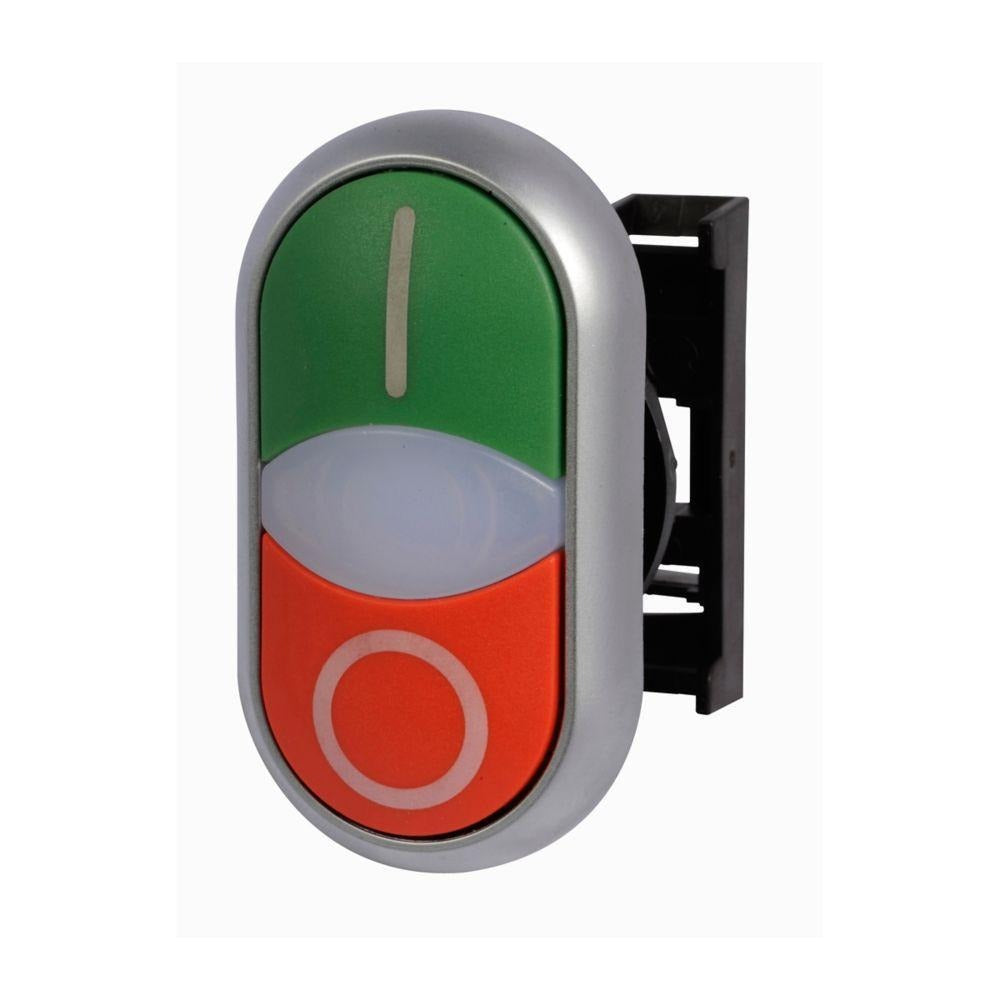

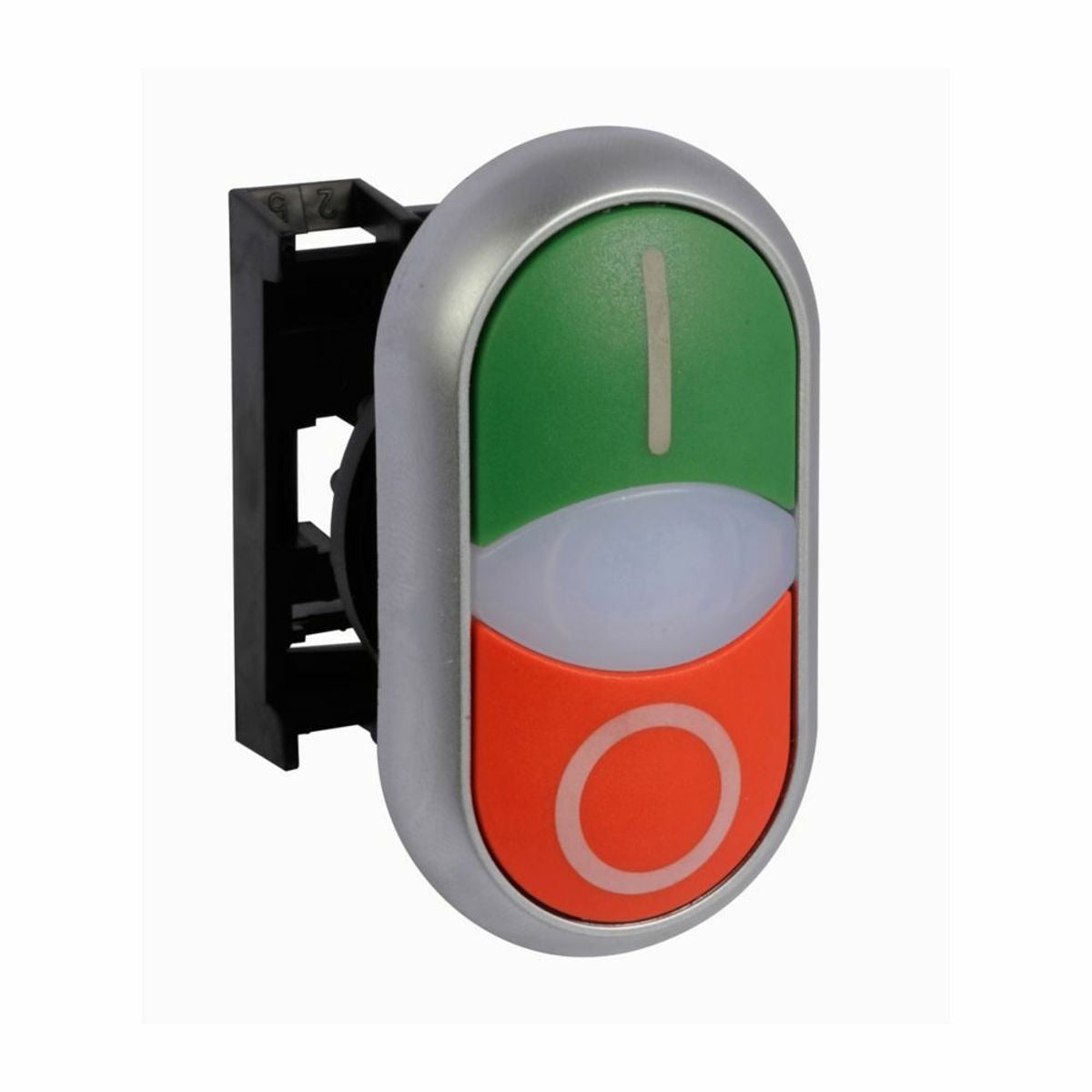

Eaton M22-DDL-GR-X1-X0 M22 Modular Illuminated Momentary Pushbutton 22.5 mm

Product Description

Eaton M22-DDL-GR-X1-X0 is an illuminated, 2-modular M22 series pushbutton operator for electrical assemblies and panel applications. It provides two extended momentary button actuators with I/O legend, LED illumination rated up to 100,000 hours, and a mechanical button life of approximately 200,000 operations. The 22.5 mm operator features a silver bezel and is rated IP66, NEMA 4X and NEMA 13 with an operating temperature range of -13 to 158 deg F.

• 22.5 mm, 2-modular form factor with two extended momentary button operators and I/O legend
• LED illumination with light life up to 100,000 hours and silver bezel housing
• Enclosure rated IP66, NEMA 4X, NEMA 13; mechanical button life ~200,000 operations; operating temp -13 to 158 deg F

Product Highlights

Illuminated 22.5 mm M22 pushbutton operator, LED light life 100,000 hours, button life 200,000 operations, IP66/NEMA 4X/13 protection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-DDL-GR-X1-X0
• Country of Origin: Germany
