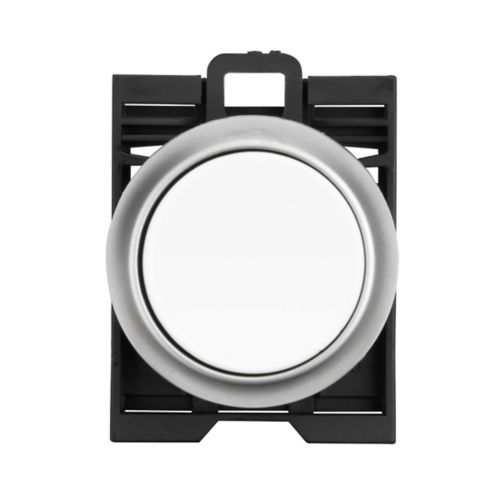

Eaton M22-D-W M22 Modular Pushbutton (22.5 mm)

Product Description

The Eaton M22-D-W is a 22.5 mm RMQ-Titan modular pushbutton with a white actuator and silver bezel. This non-illuminated, flush mounting pushbutton is rated IP67 and IP69K. It is designed for momentary operation and has an operating life of 5 million cycles. Includes contact block mounting adapter.

• White Actuator
• Silver bezel
• Flush mounting

Product Highlights

The Eaton M22-D-W modular pushbutton is ideal for industrial applications requiring a robust and reliable control interface.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-D-W

Technical Specifications

• Product Name: Eaton M22 modular pushbutton
• Catalog Number: M22-D-W
• UPC: 786685275932
• Product Length/Depth: 1 in
• Product Height: 4 in
• Product Width: 4 in
• Compliances: Bureau Veritas GoST-R CE Marked
• Certifications: CCC Marked CSA Certified Lloyd's Register Certified
• Catalog Notes: Includes contact block mounting adapter.
• Product Type: Modular pushbutton
• Type: Pushbutton
• Actuator color: White
• Bezel: Silver
• Actuator function: Momentary
• Enclosure: IP67 IP69K
• Button color: White
• Actuator: Flush, button
• Operating mode: Momentary
• Illumination: Non-illuminated
• Series: M22
• Environmental rating: IP67, IP69K, NEMA 4X, NEMA 13
• Operating cycles: 5 million
• Mounting method: Flush
• Degree of protection: NEMA 4X NEMA 13
• Product category: Flush pushbutton
• Size: 22.5 mm
• Color: White
• Operation: Momentary
• Hole Diameter: 22MM
• Bezel color: Silver
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: M22-D-W
• Numeric ID: 3882618
• Family / Style: M22
