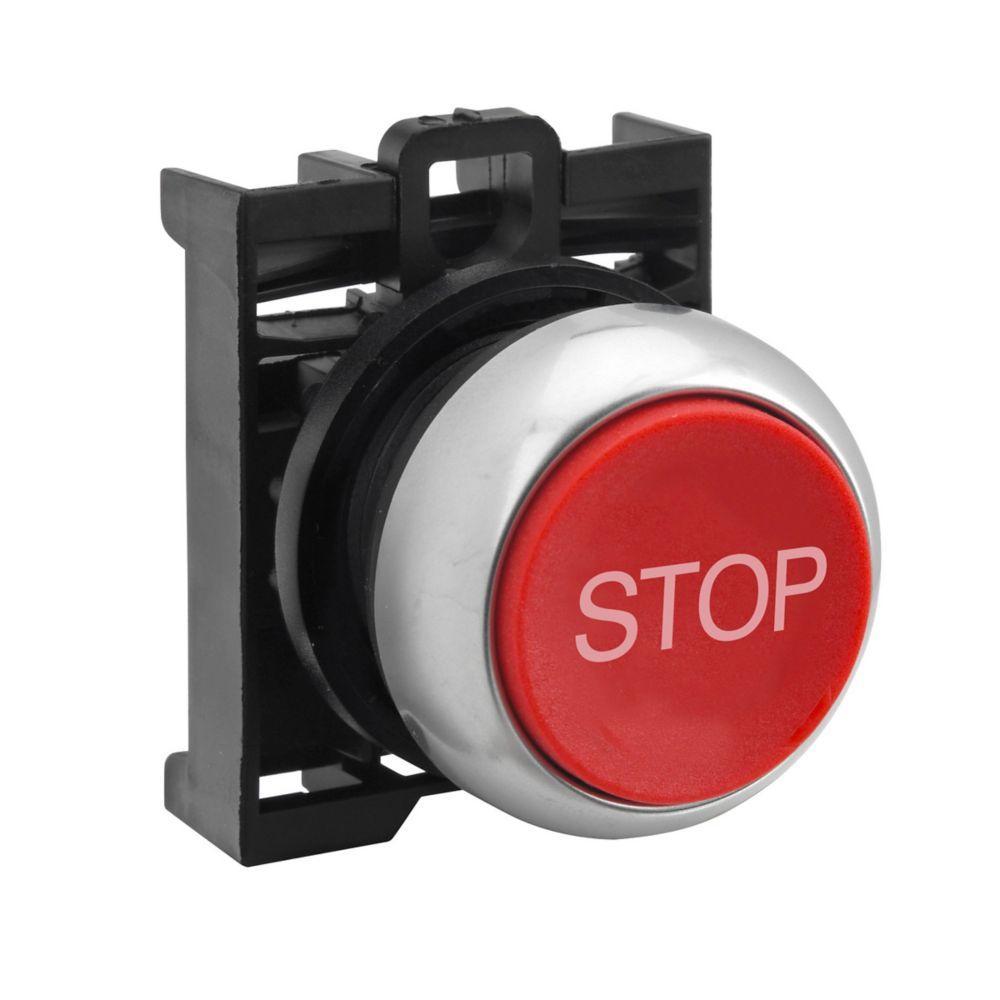

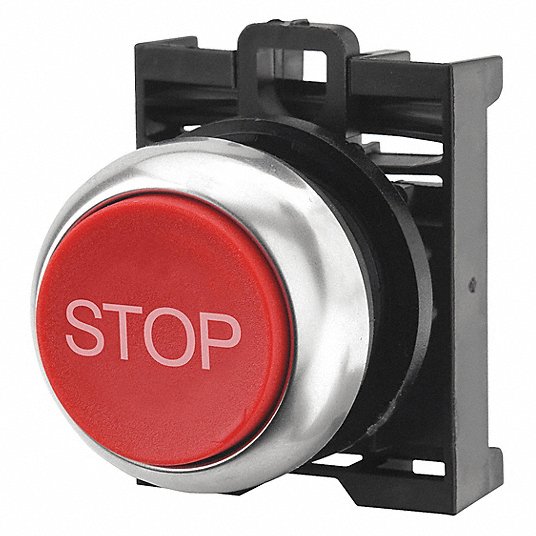

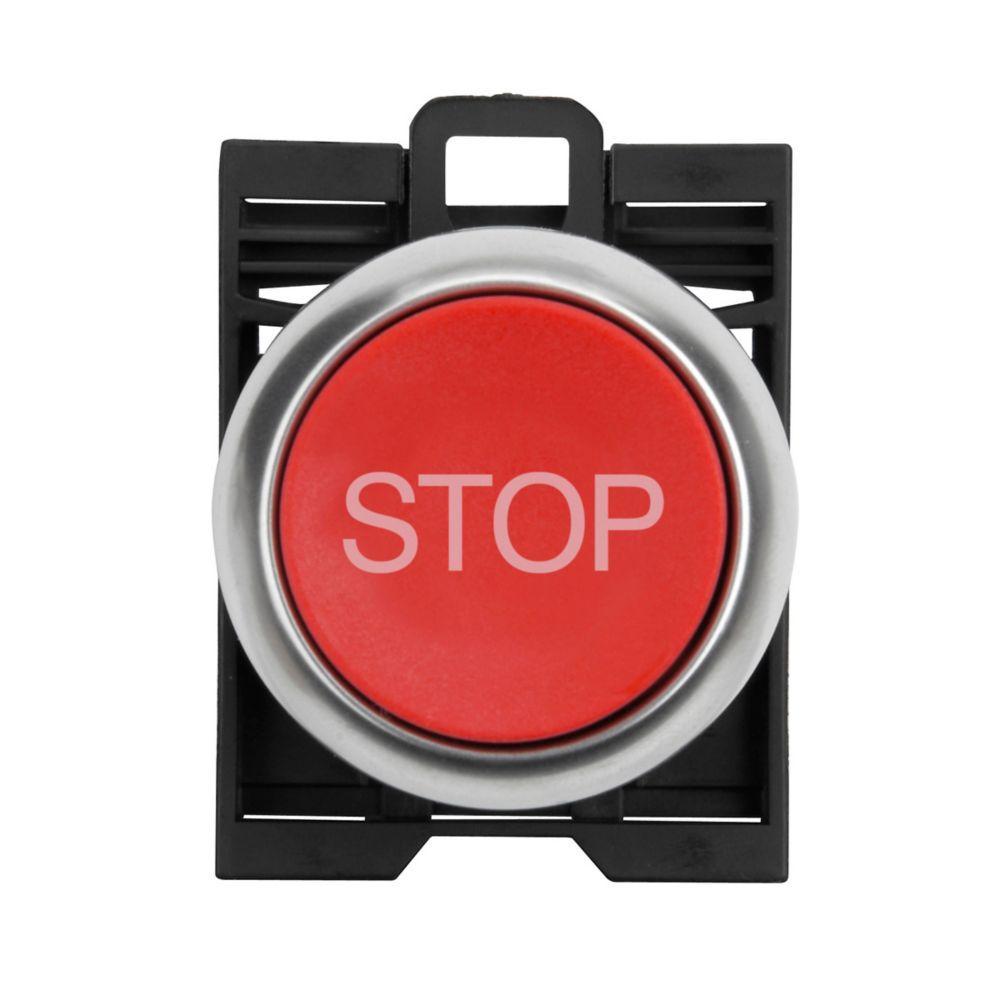

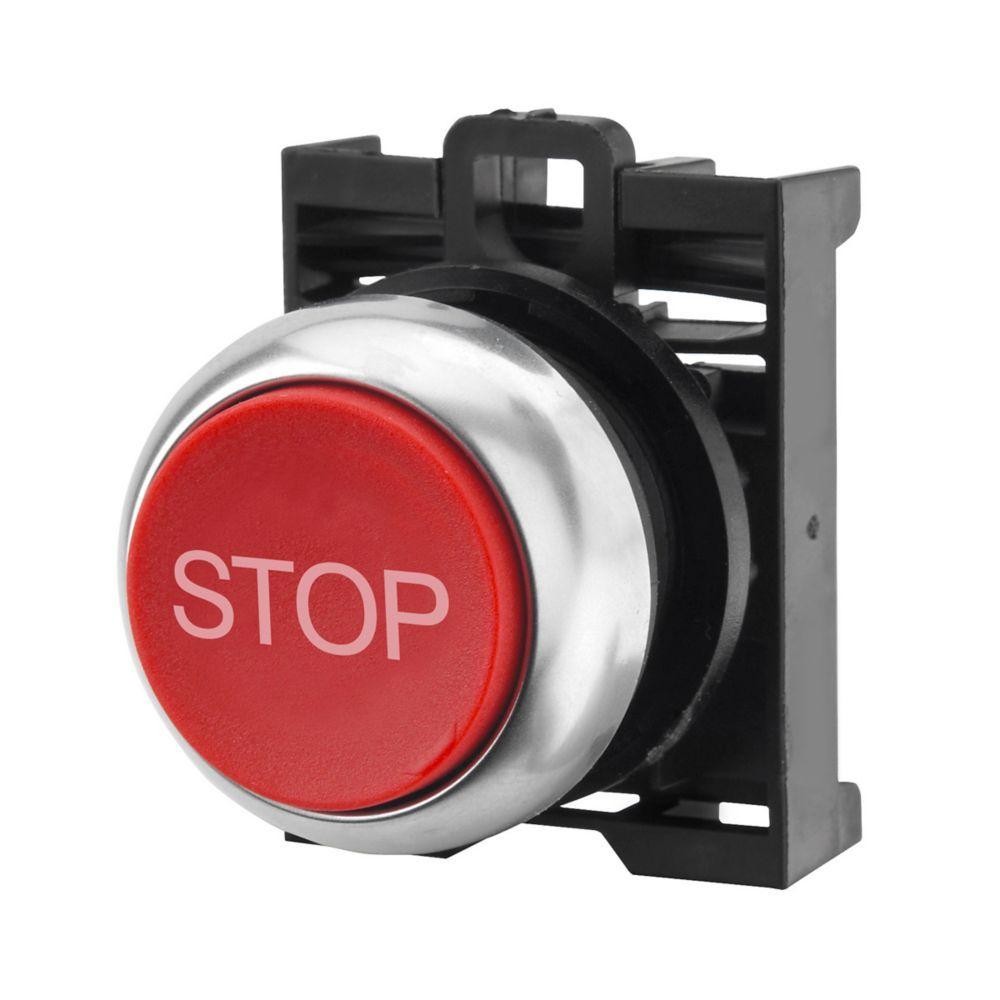

Eaton M22-D-R-GB0 Pushbutton STOP

Product Description

The EATON M22-D-R-GB0 pushbutton is part of the complete, modular and versatile EATON M22 pushbutton line. It features field convertible maintained operators and customizable laser engraved buttons. The modular construction makes assembly fast and simplifies stocking of components and complete devices. The ergonomic design ensures ease of operation.

• Field convertible from maintained to momentary operation
• Customizable laser engraving on all buttons
• LED offering only for improved brightness quality and up to 100000 hours of operation

Product Highlights

The M22 pushbutton line provides flexibility and reduced inventory with a rugged design. It is ideal for machine control applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-D-R-GB0
• Country of Origin: Germany

Technical Specifications

• Bezel/Housing: Silver Bezel
• Contact Mode: Momentary
• Enclosure Type: NEMA 4X/13/IP67/IP69K
• Material: Plastic
• Mounting Type: Flush
• Operator Type: Flush Button
• Series: RMQ-Titan M22 Series
• Temperature Rating: -25 to 70 deg C
• Type: Modular STOP Inscription
• Size: 22.5 mm
• Color: Red
• Product Name: Eaton M22 modular pushbutton
• Catalog Number: M22-D-R-GB0
• UPC: 786685276366
• Compliances: CE Marked GoST-R Bureau Veritas
• Certifications: CCC Marked CSA Certified Lloyd's Register Certified
• Catalog Notes: Includes contact block mounting adapter.
• Product Type: Modular pushbutton
• Actuator color: Red
• Bezel: Silver
• Actuator function: Momentary
• Enclosure: IP67 IP69K
• Button color: Red
• Actuator: Flush, button
• Operating mode: Momentary
• Illumination: Non-illuminated
• Environmental rating: IP67, IP69K, NEMA 4X, NEMA 13
• Etching code: STOP
• Operating cycles: 5 million
• Mounting method: Flush
• Degree of protection: NEMA 13 NEMA 4X
• Inscription: STOP
• Product category: Flush pushbutton
• Category: Configurable Switch Bodies
• Manufacturer: Eaton Electrical
• Actuator Type: Pushbutton, Round
• Packaging: Bulk
• Compatible Series: Eaton, M22
• Part Status: Active
• Panel Cutout Dimensions: 22.5mm (Round)
• Requires: Contact Block(s)
• Action: Momentary
• Actuator Color: Red
• Application: Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
• Brand: Eaton - Cutler Hammer
• Button Color: Red Button
• Legend: Stop
• Manufacturer Part Number: M22-D-R-GB0
• Mounting Hole Size: 22.5 mm in
• Operation: Momentary
• Overall Depth: 2 in
• Overall Height: 1 in
• Overall Width: 1 in
• Panel Mounting Hole Diameter: 22 mm
• Push Button Style: Flush
• Resistance Properties: Corrosion Resistant
• Standards: Bureau Veritas; CCC; CE; CSA; GOST-R; Lloyd's Register; UL Listed
• Terminal Connection: Screw Clamp
• Operating Temperature - Maximum: 158 of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
