Product Description

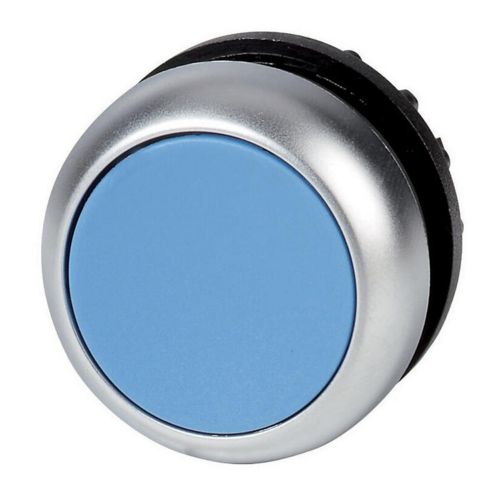

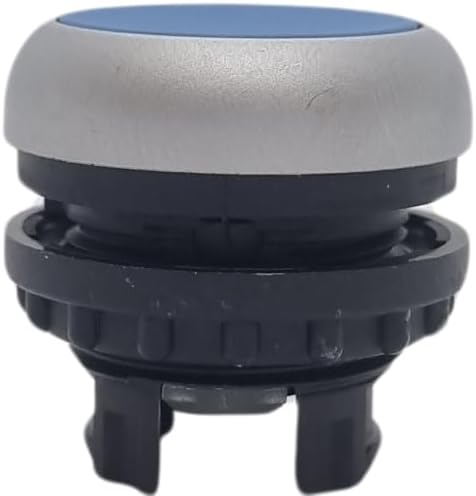

The EATON M22-D-B is a RMQ-Titan® non-illuminated modular pushbutton operator with a 22.5 mm size. It features a momentary contact mode and a flush button operator. Constructed with a silver bezel and NEMA 4X/13/IP67/IP69K enclosure, it is suitable for various applications.
- Exceeds 5 million mechanical operations
- Features field convertible functions and customized laser engraving capabilities
- Modular and flexible construction
Product Highlights
The M22-D-B pushbutton is designed for durability and versatility, suitable for stationary machinery, equipment outside factory and other applications.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: M22-D-B
Technical Specifications
-
Manufacturer Part Number: M22-D-B
-
Series: M22
-
Size: 22.5 mm
-
Mounting Type: Flush
-
Enclosure: NEMA 4X/13/IP67/IP69K
-
Bezel Housing: Silver Bezel
-
Temperature Rating: -13 to 158 deg F
-
Terminal Type: Spring Cage
-
Type: Modular pushbutton
-
Application: Stationary Machinery, Equipment Outside Factory and Other Applications
-

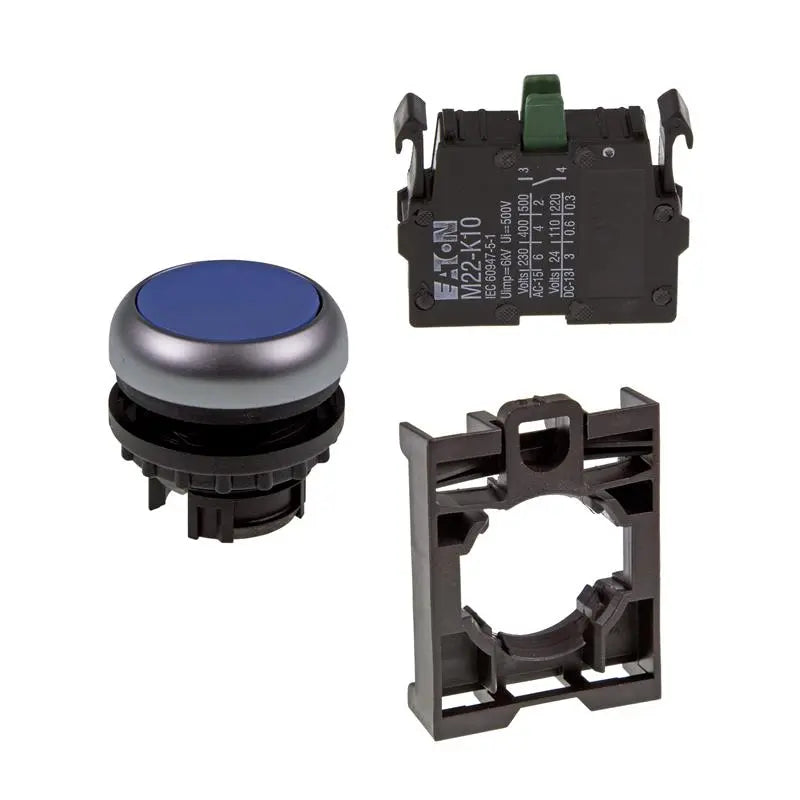

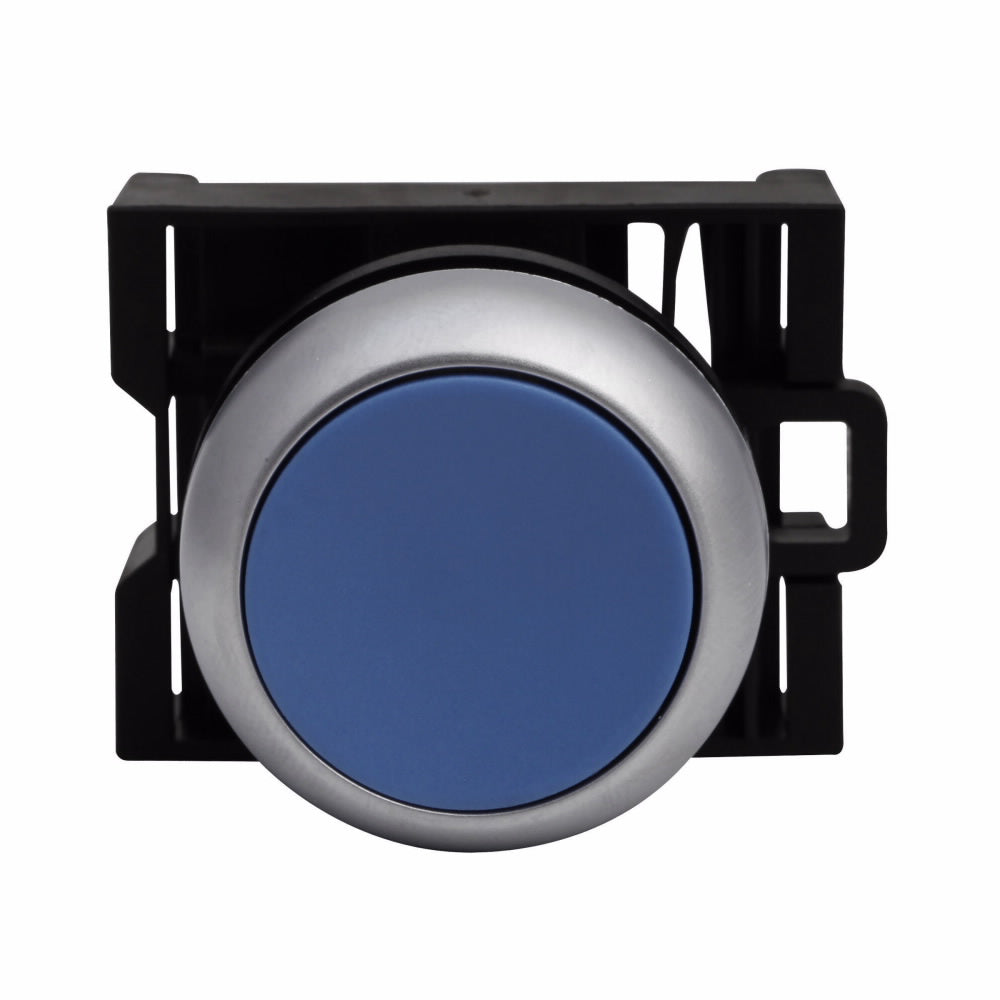

Includes: Contact Block Mounting Adapter
-
Standards/Approvals: Bureau Veritas Approved|CCC Certified|CE Marking|CSA Certified|GoST-R Compliant|Lloyd's Register Certified
-
Actuator color: Blue
-
Actuator function: Momentary
-
Illumination: Non-illuminated
-
Operating cycles: 5 million
-
Mounting method: Flush
-
Degree of protection: NEMA 4X NEMA 13
-
Product category: Flush pushbutton
-
Function: Momentary
-
Flush: Flush
-
Color: Blue Button
-
Protection: IP67/IP69K
-
Drilling dimensions: 22.5 mm
-
Front fixing: Front fixing
-
Contact element: 1 NO
-
Connection: Screw terminals and mounting adapter
-
Product Length/Depth: 2 in
-
Product Height: 1 in
-
Product Width: 2 in
-
Operating mode: Momentary
-
Contact configuration: 1 NO
-
Actuator Type: Flush, Round
-
Action: Momentary
-
Operation: Momentary
-
Bezel: Silver Bezel
