Eaton LPS-RK-7SP Bussmann Low-Peak Fuse 7 A (Pack of 10)

Product Description

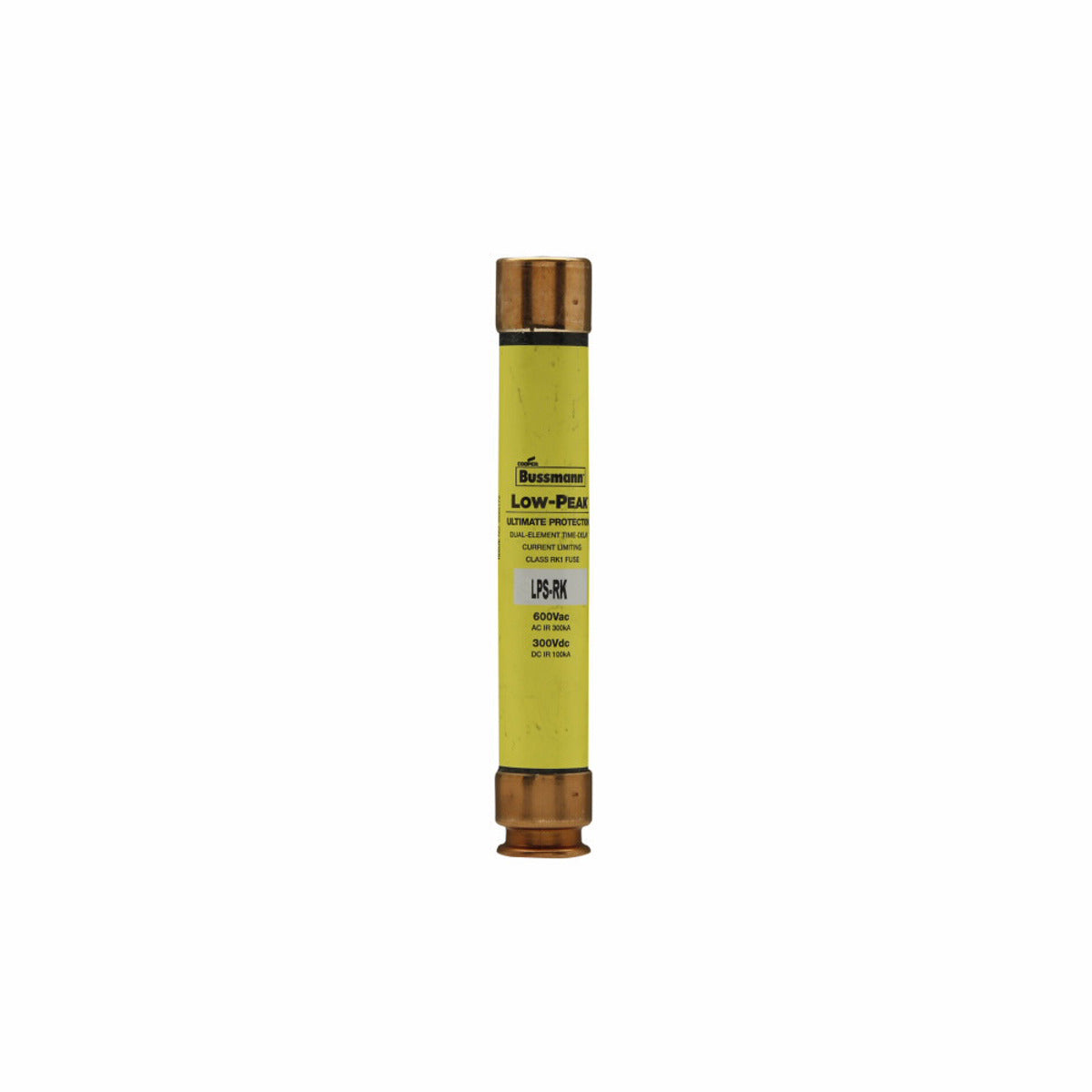

Eaton LPS-RK-7SP is a Bussmann Series low-peak, dual-element, current-limiting time-delay fuse rated 7 A. It is Class RK1 with ferrule end terminations and voltage ratings of 600 V AC and 300 V DC. The fuse provides current limitation with an interrupting rating of 300 kAIC at 600 VAC and 100 kAIC at 300 VDC and a time-delay of approximately 10 seconds at 500%.

• Dual-element, time-delay (10 sec at 500%) and current-limiting design for motor inrush and short-circuit protection
• High interrupting capacity: 300 kAIC at 600 VAC and 100 kAIC at 300 VDC
• Class RK1 cylindrical body (0.81 in diameter x 5 in length) with ferrule end x ferrule end terminations; melamine body

Product Highlights

Class RK1 7 A low-peak time-delay fuse, 600 VAC/300 VDC, 300 kAAC/100 kADC interrupting ratings, pack of 10

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: LPS-RK-7SP
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: LPS-RK-7SP
• Series: Bussmann LPS-RK
• Class: RK1
• Amperage: 7 A
• Fuse Type: Low-Peak, time-delay, current-limiting
• Element: Dual
• Time Rating: 10 sec at 500% (time-delay)
• Voltage Rating: 600 V AC, 300 V DC
• Interrupting Rating (AC): 300 kAIC at 600 V AC
• Interrupting Rating (DC): 100 kAIC at 300 V DC
• Termination / Connection: Ferrule end x ferrule end
• Body Material: Melamine
• Dimensions: 0.81 in diameter x 5.00 in length
• Mounting Type: Holder
• Pack Quantity: 10
• Approvals / Certifications: UL, CSA, CE
• Applications: Large distribution switchboards, power panelboards, motor control centers, machinery disconnect switches, feeder and branch circuits, motors, transformers, solenoids, general purpose circuits
• Special Features: Electrically isolated end cap
• Weight: 0.17 lb
