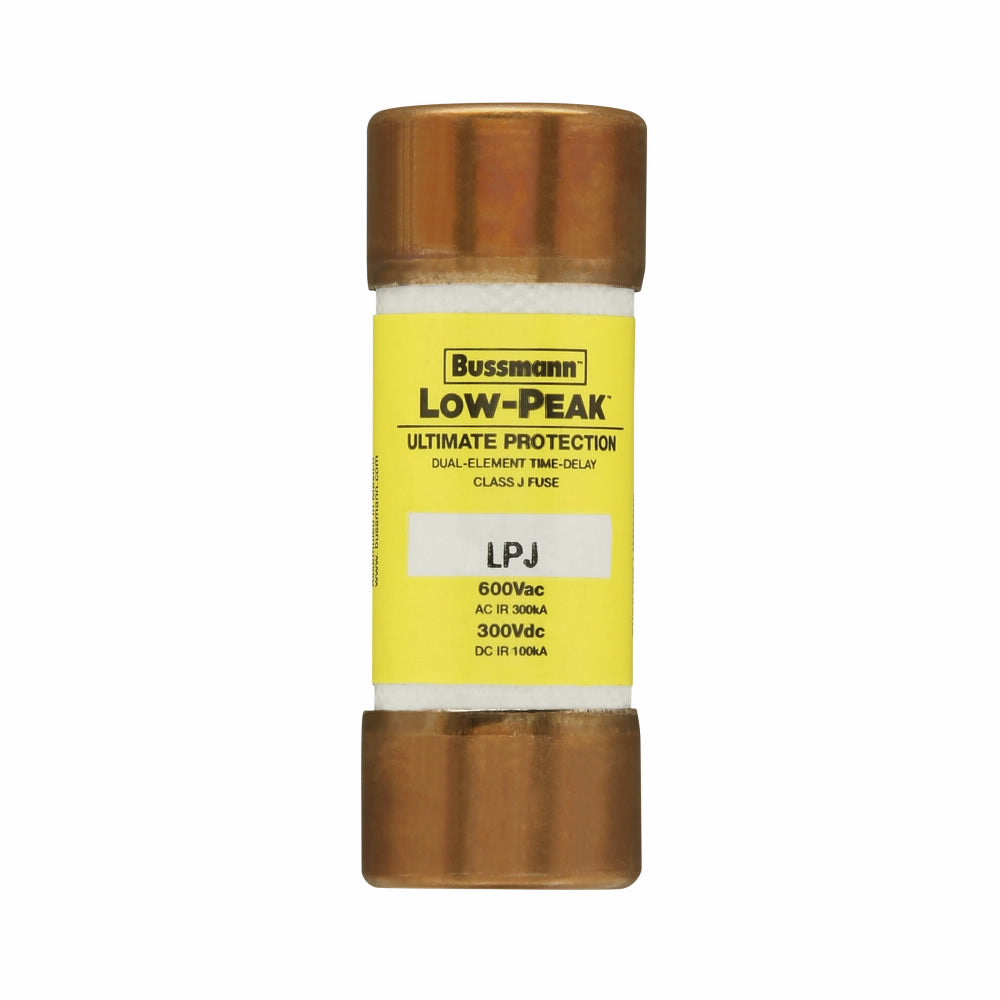

EATON LPJ-25SP Fuse Low-Peak Current Limiting Time Delay 25A 600VAC 300VDC Class J

Product Description

The EATON LPJ-25SP is a top-grade Low-Peak fuse designed to handle 25 amps at a voltage rating of 600 VAC or 300 VDC. This fuse offers precise protection with its current-limiting, time delay features, making it ideal for safeguarding electrical components.

• High interrupt rating of 300/100 kA
• Time delay function allows for better handling of inrush currents
• Dual element design ensures optimal performance

Product Highlights

Supporting class J standards, this non-indicating fuse is cylindrical and utilizes ferrule terminals for secure connections. Its use of melamine material in construction affords it durability and reliability in various electrical setups.

Product Information

Standard Information

• Mounting Type: Holder mount
• Body Type: Cylindrical

Technical Specifications

• Amperage Rating: 25 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Response Time: 10 seconds
• Body Size: 0.81 inches diameter x 2.25 inches length
• Standards/Approvals: CE Certified, CSA C22.2 No. 248.8, UL Guide No. JDDZ, UL File No. E4273
• Material: Melamine
• Terminal Type: Ferrule
