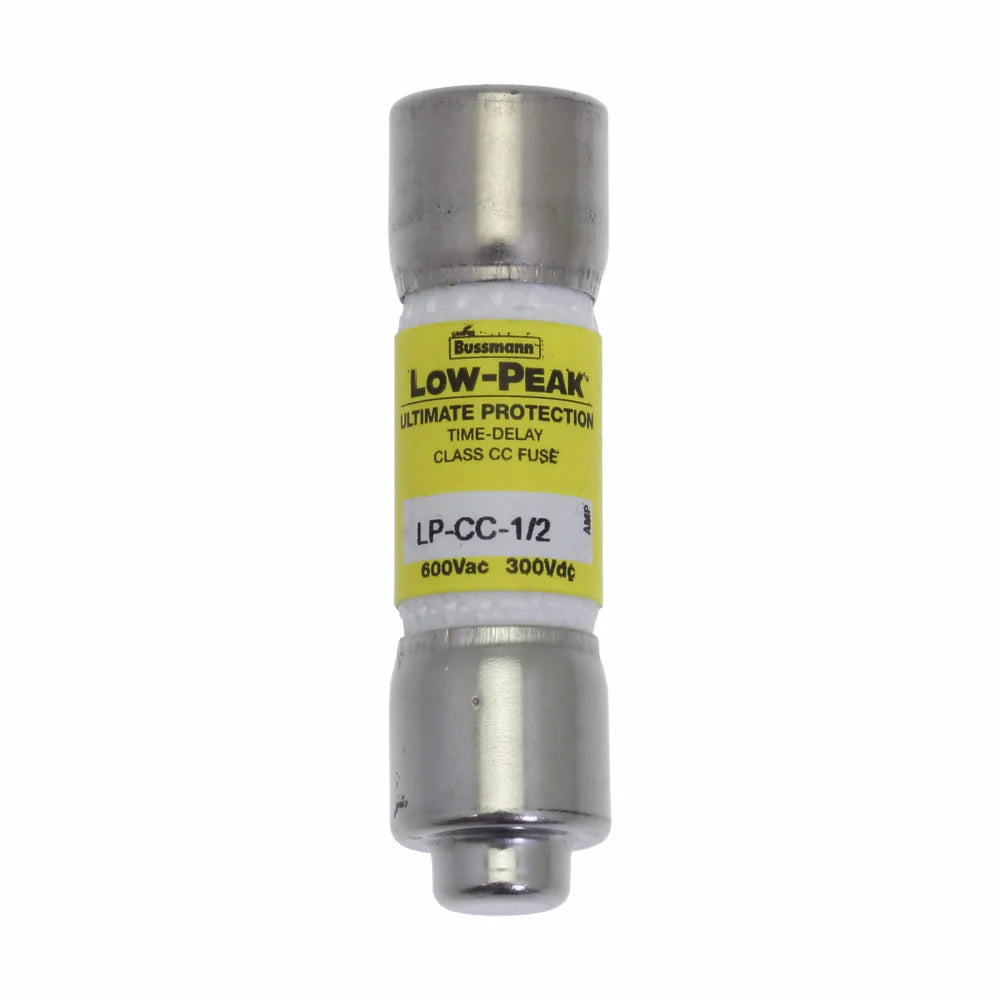

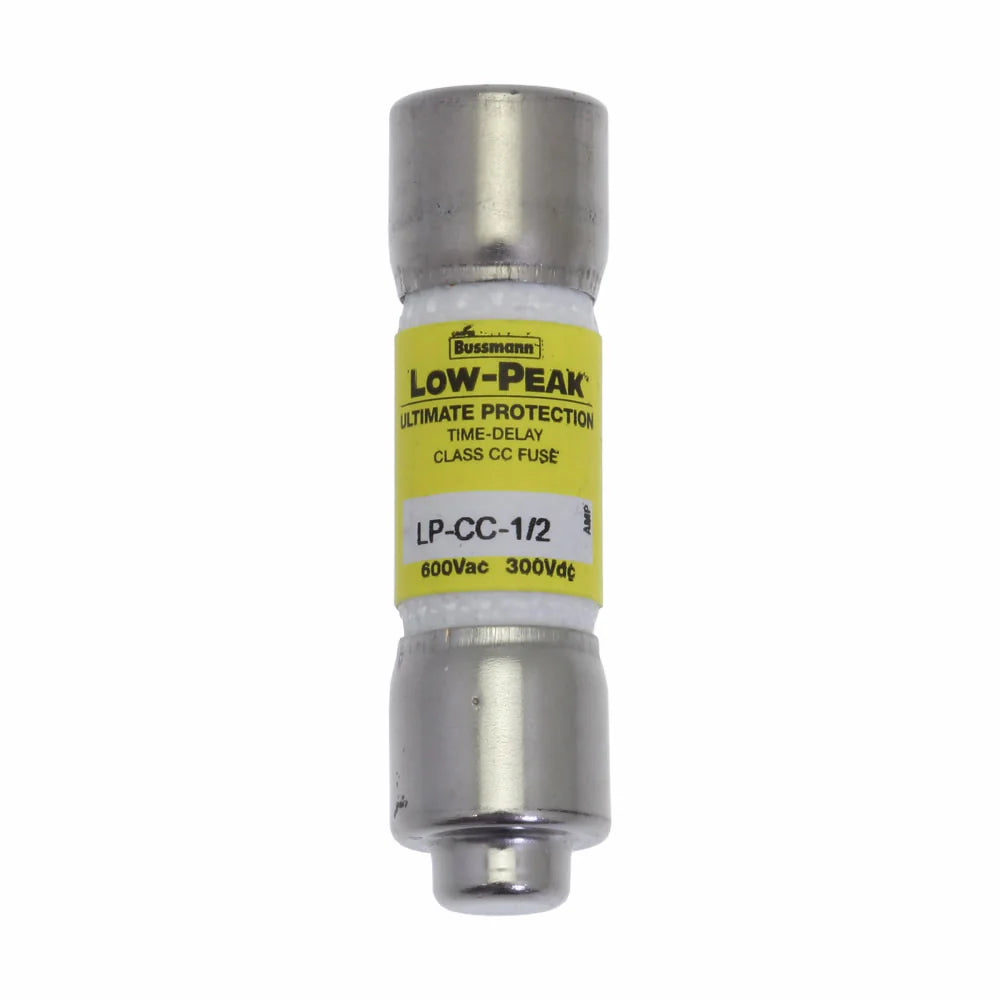

Eaton LP-CC-1/2 BUS FUSE LOW PEAK CLASS CC 1/2AMP

Product Description

The Eaton LP-CC-1/2 is a Low-Peak Time Delay Fuse designed for effective circuit protection. This current limiting fuse provides a time delay feature, ideal for small motor and relay circuits. With a rating of 0.5 amps, it operates at a voltage of six hundred VAC and three hundred VDC. Suitable for a variety of applications, this fuse prevents unwanted interruptions in electrical systems.

• Time delay feature for close sizing on small motor circuits
• 200 kA interrupt rating for high control circuit protection
• Class CC designation to prevent the use of lower-rated fuses

Product Highlights

The Eaton LP-CC-1/2 fuse is essential for branch circuit protection and specialized circuits. Its design ensures safety and reliability in electrical systems.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: LP-CC-1/2

Technical Specifications

• Amperage Rating: 0.5 A
• Voltage Rating: 600 VAC / 300 VDC
• Body Size: 13/32 in Dia x 1-1/2 in L
• Application: Branch Circuit Protection, Specialized Circuits
• Class: CC
• Element: Dual
• Material: Melamine
• Mounting Type: Holder
• Response Time: 12 s at 200%
