Eaton LB75 CGN Condulet Series 5 conduit outlet body 2-1/2 inches

Product Description

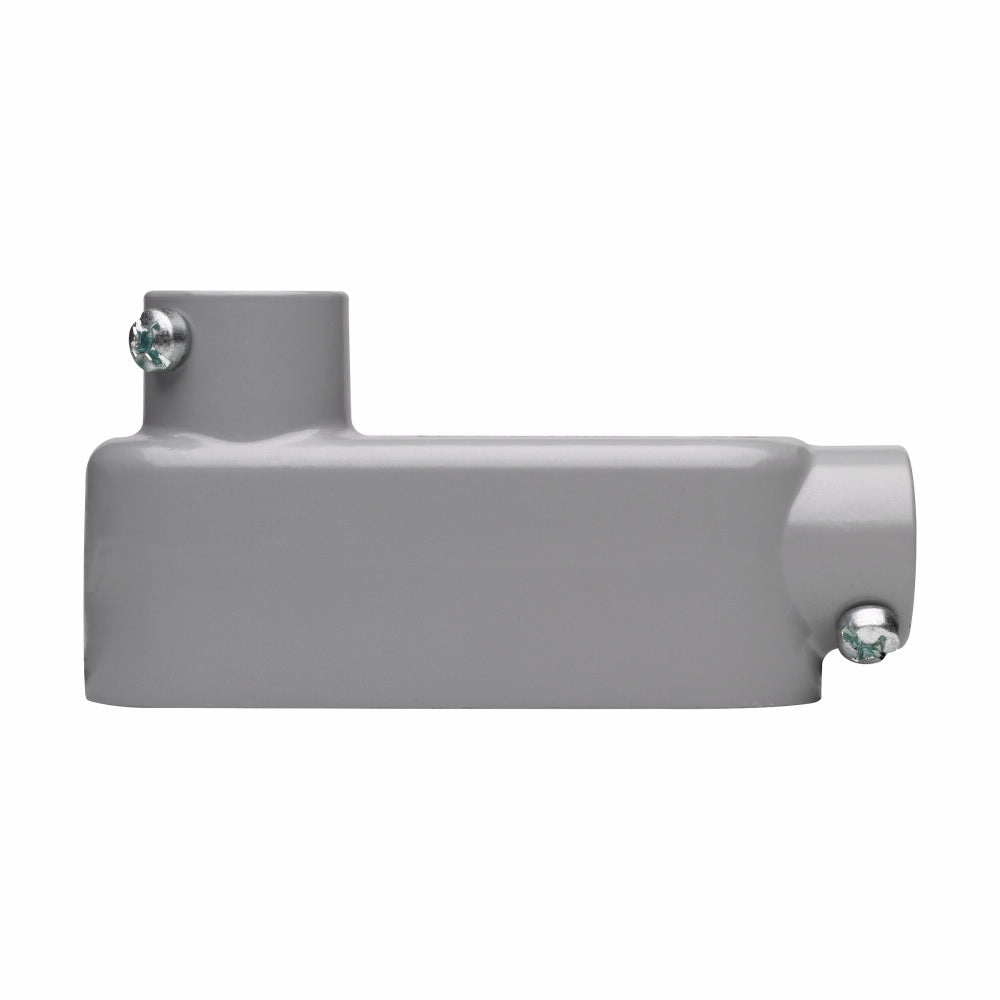

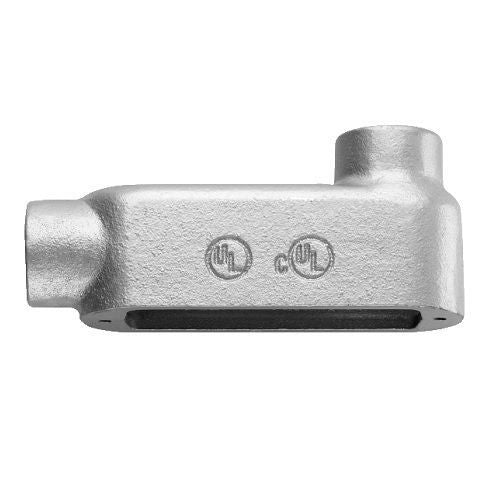

The EATON LB75 CGN Condulet Series 5 conduit outlet body is designed for use with rigid, IMC, and EMT conduits. Constructed from die cast copper-free aluminum, it offers corrosion resistance and serves as a pull outlet for conductors, facilitating splices and taps. This LB-shaped body includes a cover and neoprene gasket, ensuring secure installations in ordinary/non-hazardous locations.

• Includes a cover and neoprene gasket for enhanced protection.
• Constructed from die cast copper-free aluminum for corrosion resistance.
• Designed for rigid, IMC, and EMT conduit applications in an LB shape.

Product Highlights

Durable die cast copper-free aluminum conduit outlet body with cover and neoprene gasket, offering corrosion resistance for rigid/IMC/EMT applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: LB75 CGN
• Country of Origin: India

Technical Specifications

• Catalog Number: LB75 CGN
• Manufacturer: Eaton Crouse-Hinds
• Brand: Eaton
• Sub Brand: Crouse-Hinds series
• Country of Origin: India
• Made in USA: No
• Application: For rigid/IMC/EMT conduit, act as pull outlets for conductors being installed, provide openings for making splices and taps in conductors
• Color: Gray
• Connection Type: Threaded / Set Screw
• Enclosure: Condulet
• Finish: Epoxy Powder Painted
• Series: Series 5
• Material: Die Cast Copper Free Aluminum
• Mounting Type: Conduit
• Special Features: With Cover and Neoprene Gasket, Corrosion Resistant
• Standards: ARRA, Buy American Act, RoHS Compliant, UL File No. E-15022, cUL Listed
• UPC: 784564743756
• GTIN: 00784564743756
• Product Type: Conduit outlet body
• Length: 13.14 In
• Width: 4.44 In
• Height: 5.75 In
• Weight: 5 lb
• Area Classification: Ordinary/Non-Hazardous Locations
• Standards Type: NEC/CEC
• Shape: LB
• Trade Size: 2-1/2"
• Type: Type LB
• ECCN: EAR99
• UNSPSC: 39131708
• Number of Hubs: 2 Hub
• Capacity: 71.2 cu-in
• Catalog ID: CHNLB75CGN
• Form: 5
