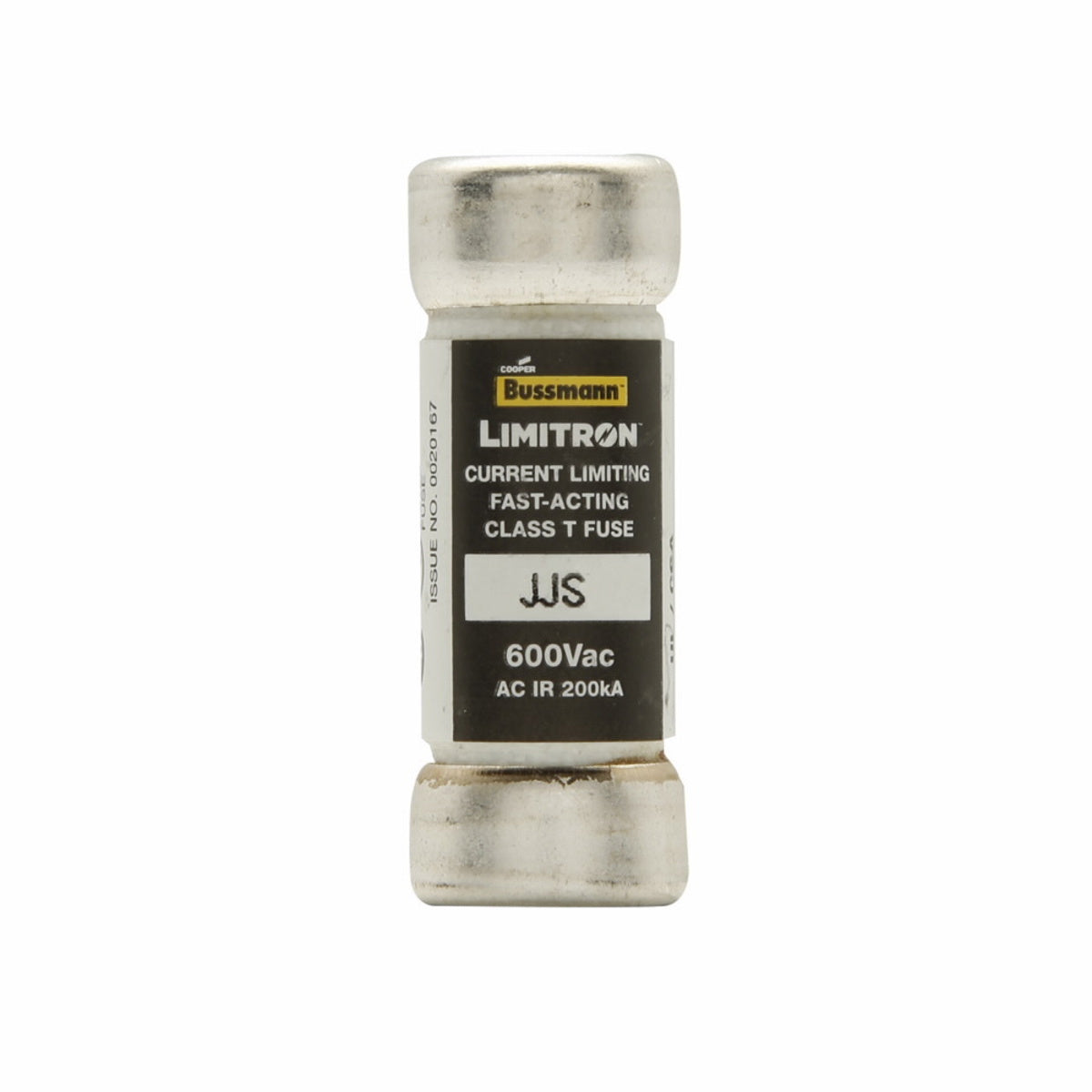

Eaton JJS-6 Bussmann JJS Fuse 6 A (10 Pack)

Product Description

Eaton JJS-6 is a Bussmann series current-limiting, very fast-acting Class T fuse rated 6 A and 600 V AC. It provides VFD line protection and non-indicating ferrule end terminations with a 200 kAIC interrupting rating at 600 V. The fuse features a small footprint and single-element construction suitable for holder mounting in multi-tenant meter stacks, industrial and commercial applications.

• Current-limiting, very fast acting Class T fuse rated 6 A, 600 V AC with 200 kAIC interrupting rating
• Ferrule end x ferrule end terminations, single-element melamine body; body size about 0.56 in diameter x 1.5 in length
• Designed for VFD line protection and space-constrained installations; non-indicating, series JJS (Limitron)

Product Highlights

6 A, 600 V AC Class T current-limiting fuse; 200 kAIC interrupting rating; small footprint; 10 per pack

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: JJS-6
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton (Bussmann)
• Manufacturer Part Number: JJS-6
• Series: JJS (Limitron)
• Fuse Type: Current-limiting, very fast acting
• Fuse Class: Class T
• Current Rating: 6 A
• Voltage Rating: 600 V AC
• Interrupting Rating: 200 kAIC at 600 V
• Termination: Ferrule end x ferrule end
• Indication: Non-indicating
• Body Type: Cylindrical
• Body Dimensions: 0.56 in diameter x 1.5 in length
• Material: Melamine
• Mounting Type: Holder
• Element: Single
• Speed: Very fast acting
• Standards/Approvals: UL 248-15; CSA C22.2; CE
• RoHS Compliance: RoHS compliant
• Country of Origin: Mexico
• Package Quantity: 10
