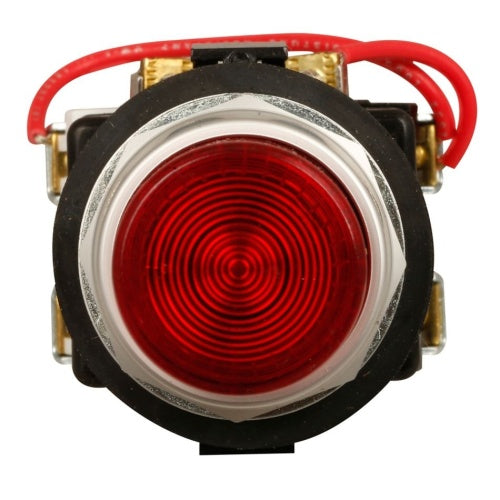

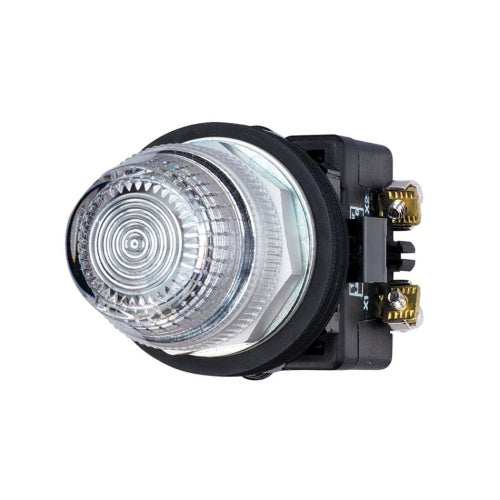

Eaton HT8HFCV7 Indicating Light 120V

Product Description

The EATON HT8HFCV7 is an indicating light from the HT800 series, designed for 30.5mm mounting. It features standard screw terminals and is suitable for industrial applications, offering a familiar appearance and easy assembly. The unit is watertight and oiltight, with NEMA 1, 2, 3, 3R, 4, 4X, 12, and 13 ratings.

• 30.5mm Mounting Size
• Incandescent or LED Types
• Standard Screw Terminals

Product Highlights

The HT8HFCV7 indicating light offers easy installation and a robust, watertight design for industrial environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: HT8HFCV7
• Country of Origin: US

Technical Specifications

• Manufacturer Part Number: HT8HFCV7
• Manufacturer: Eaton
• Product Series: HT800
• Family Series: Eaton Pilot Lights, HT800 Series
• Description: Eaton HT800 pushbutton, Watertight and Oiltight-HT800, Indicating Light Unit, Standard actuator, Chrome, Incandescent, Full voltage, NEMA 3, 3R, 4, 4X, 12 and 13, Illuminated, Clear, 120 Vac/dc, Momentary, 30.5 mm
• Push-to-Test: No
• Mounting: 30 mm
• Lamp Type: Incandescent
• Lens/Button Shape: Flat Round
• Lens Color: Clear
• Bezel: Black Metal
• Nominal Lamp Voltage: 120 VAC, 125 VDC
• Terminal Type: Screw
• NEMA Rating: NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
• Approvals: CSA, UL
• Brand: Eaton
• Component: Push Button
• (Switching-Indication) AC Voltage: 120 Volt
• (Switching-Indication) Size: 30.5 mm
• Country of Origin: United States
• IP/NEMA Rating: NEMA 3R, NEMA 4X, NEMA 12, NEMA 4
