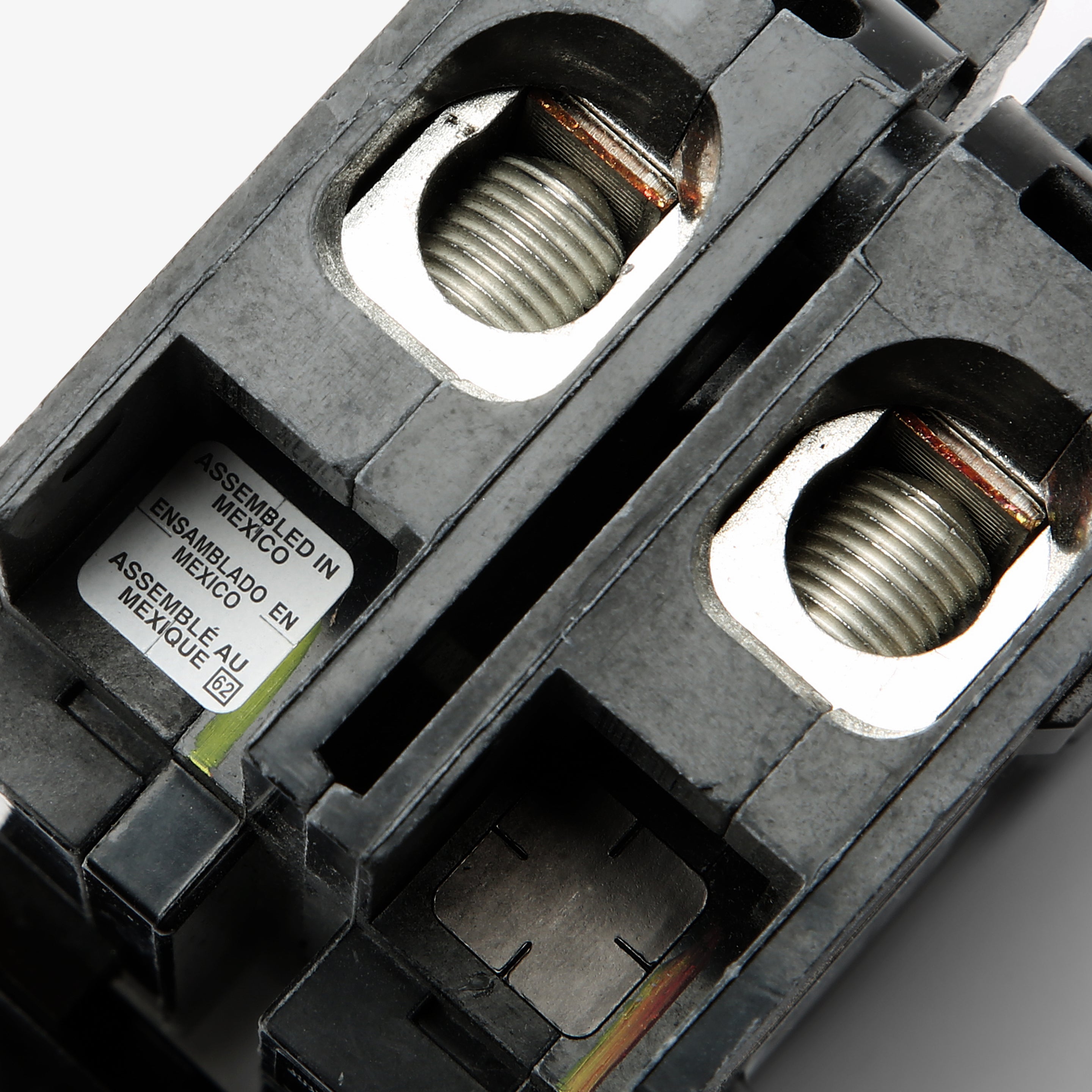

Eaton HOM245 2 Pole Circuit Breaker 45 Amps

Product Description

The EATON HOM245 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 45 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 240V. The HOM245 has a plug-in connection type and includes long time and instantaneous trip functions.

• 2 Pole
• Thermal Magnetic
• Molded Case
• Plug-In Connection

Product Highlights

The EATON HOM245 circuit breaker is suitable for various applications requiring reliable overcurrent protection. It features a plug-in connection for easy installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: HOM245

Technical Specifications

• Brand: Eaton
• Series: Homeline
• Amperage: 45
• Voltage: 120/240VAC
• Poles: 2
• Phase: 1
• Mounting Type: Plug-In
• Approval: UL
• Interrupting Rating: 10kAIC at 240V
• Frame Type: HOM
• Connection Type: Plug-In
• Protection: Thermal Magnetic
• Functions: LI - Long-Time and Instantaneous Trip
• Terminal Connection: Box Lugs
• Length (in): 2.98
• Width (in): 2
• Height (in): 3.13
• Wire Gauge: 1x AWG 8 to AWG 2, Aluminum/Copper
• Standards: HACR
• Temperature Rating: 40 °C
• Circuit Breaker Type: Standard
• Mpn: HOM245
• Upc: 785901065500
• Gtin: 00785901065500
