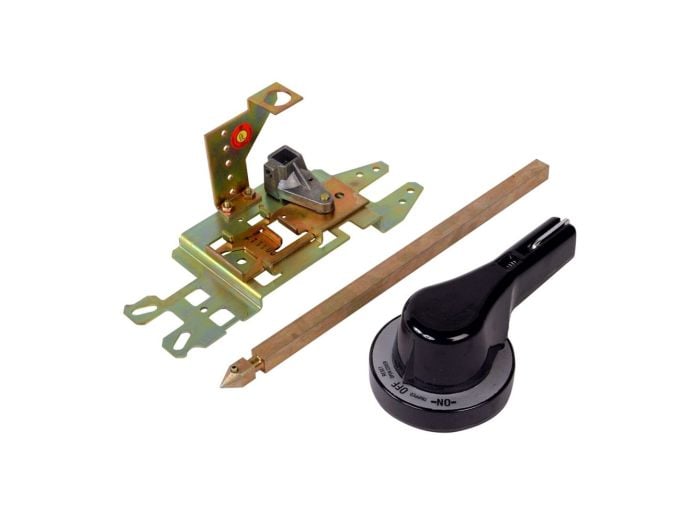

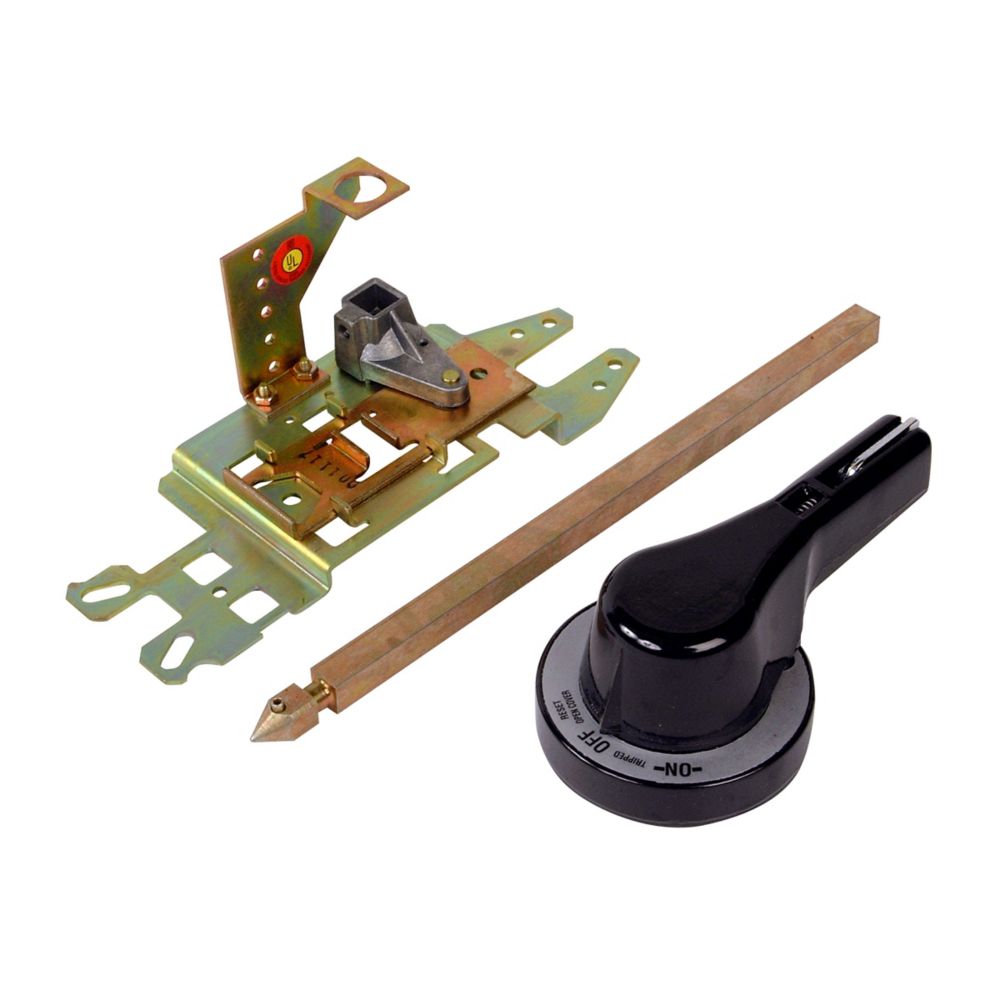

Eaton HM3R12 Handle Mechanism 12 in

Product Description

The EATON HM3R12 handle mechanism is designed for dependable branch circuit protection in panelboard, switchboard, motor control center, and busway applications. Suitable for use with C Series K-Frame Molded Case Circuit Breakers. It features a rotary handle and a through-the-door handle mounting position with a 12 inch shaft length.

• Rotary handle operation
• NEMA 1/3R/12 rating
• Includes handle "lock off" to prevent turning the breaker on while in the Off position

Product Highlights

The EATON HM3R12 handle mechanism ensures reliable circuit breaker operation with its robust design and safety features.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: HM3R12
• Country of Origin: United States

Technical Specifications

• Dimensions: 4-3/4 x 19 x 9-1/4 in
• Shaft Length: 12 in
• NEMA Rating: NEMA 1/3R/12
• Handle/Operation: Rotary Handle
• Handle Mounting Position: Through-The-Door
• Suitable For Use With: C Series K-Frame Molded Case Circuit Breaker
• Application: Circuit Protection Applications
• Standards/Approvals: CSA Certified|UL File No. E64983
• UNSPSC: 39121616
• Manufacturer Part Number: HM3R12
• Manufacturer: Eaton
• Family Series: Eaton Industrial Accessories
• Shaft Size: 12 "
• Operator Type: Rotary Handle Operating Mechanism
• Net Weight: 4.9 lbs
• Gross Weight: 4.94 lbs
• Country of Origin: United States - Subject to change
• Mechanism Type: Disconnect Operating
• Enclosure Application: NEMA 3R
• Handle Included: Included
• For Breaker Type: K Frame Breaker
• Handle to Device Connection: Rigid Shaft
• Part Number: HM3R12
• Family: Series C
• Category: Switches
• Type: HM3R
• Used With: K-frame
• Frame Size: Frame J-K
• Series: Series C
• Handle Type: Rotary
• Dimensions (HxWxD): 4.75 in x 9.25 in x 19 in
• Weight: 5.11 lbs
• Brand: Eaton
• Model: HM3R12
• Condition: New – Open box
