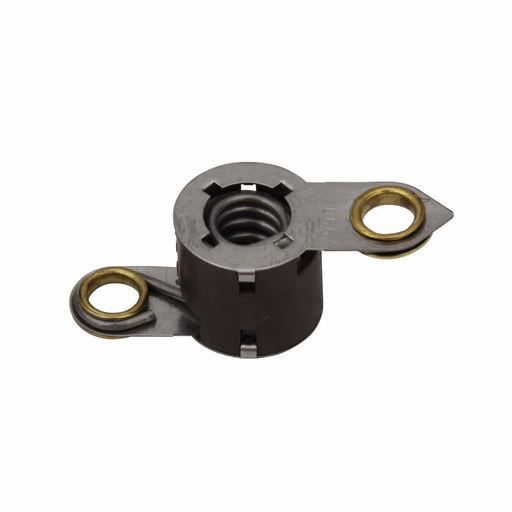

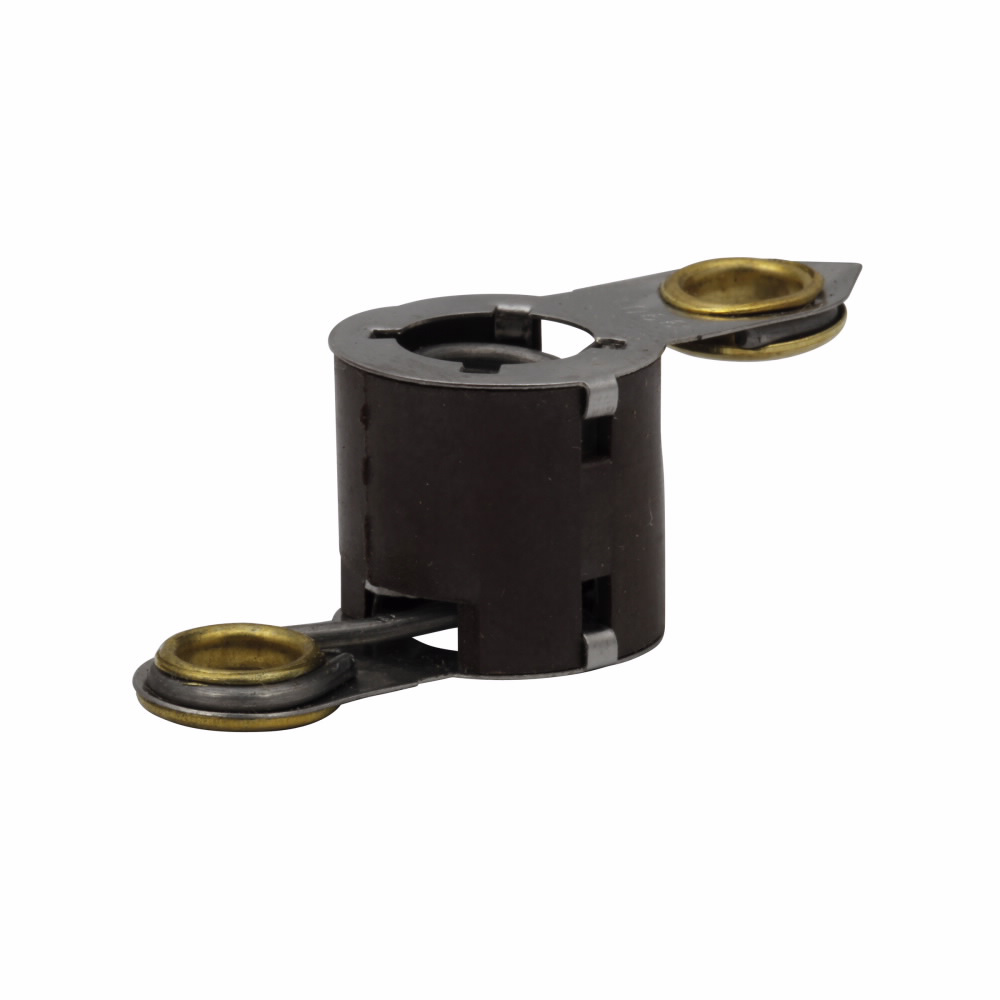

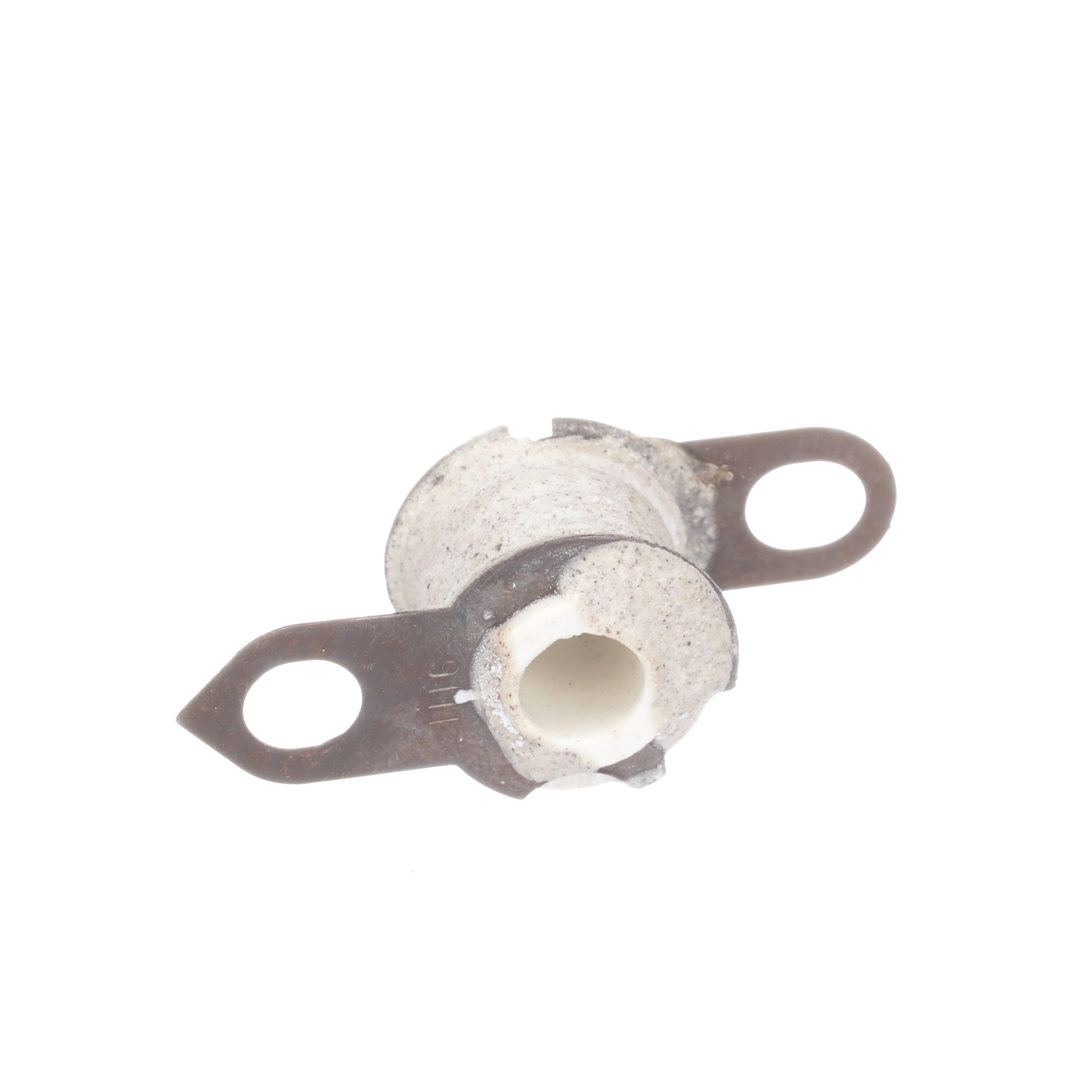

Eaton H1116 Overload Heater Element

Product Description

The Eaton H1116 is a Freedom NEMA heater coil designed for Citation and Misc Acce 116 applications. This heater coil is suitable for industrial facilities and factories. It is designed to protect 40°C rise of motors, and open and drip-proof motors having a service factor of 1.15 where the motor and the controller are at the same ambient temperature.

• Type: Freedom NEMA
• Suitable for industrial facilities and factories
• Protects 40°C rise of motors

Product Highlights

The Eaton H1116 heater coil is designed for overload protection in NEMA 00/0/1/1.5 enclosures.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: H1116

Technical Specifications

• Type: Freedom NEMA
• Brand: Eaton
• Applications: Ind Facilities & Factories - Facility - Other
• Standard: Contact Manufacturer
• Trip Type: Standard Trip, Class 20
• Product Name: Eaton Freedom NEMA heater coil
• Catalog Number: H1116
• Product Type: Heater coil
• Manufacturer: Eaton
• Component: Heater Coil
• Category: Thermal Overload/Heater
• Enclosure Type: NEMA 00/0/1/1.5
• Full Load Current: 0.896 to 1.12 A
