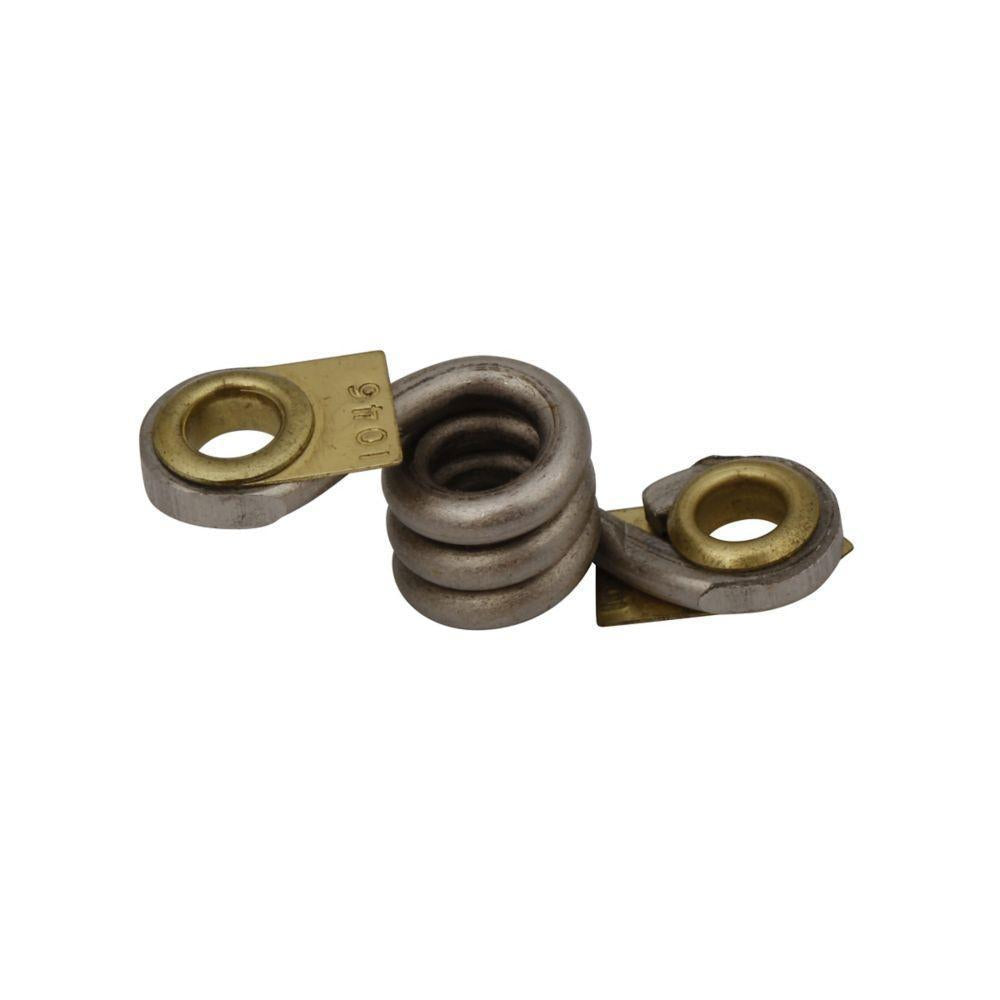

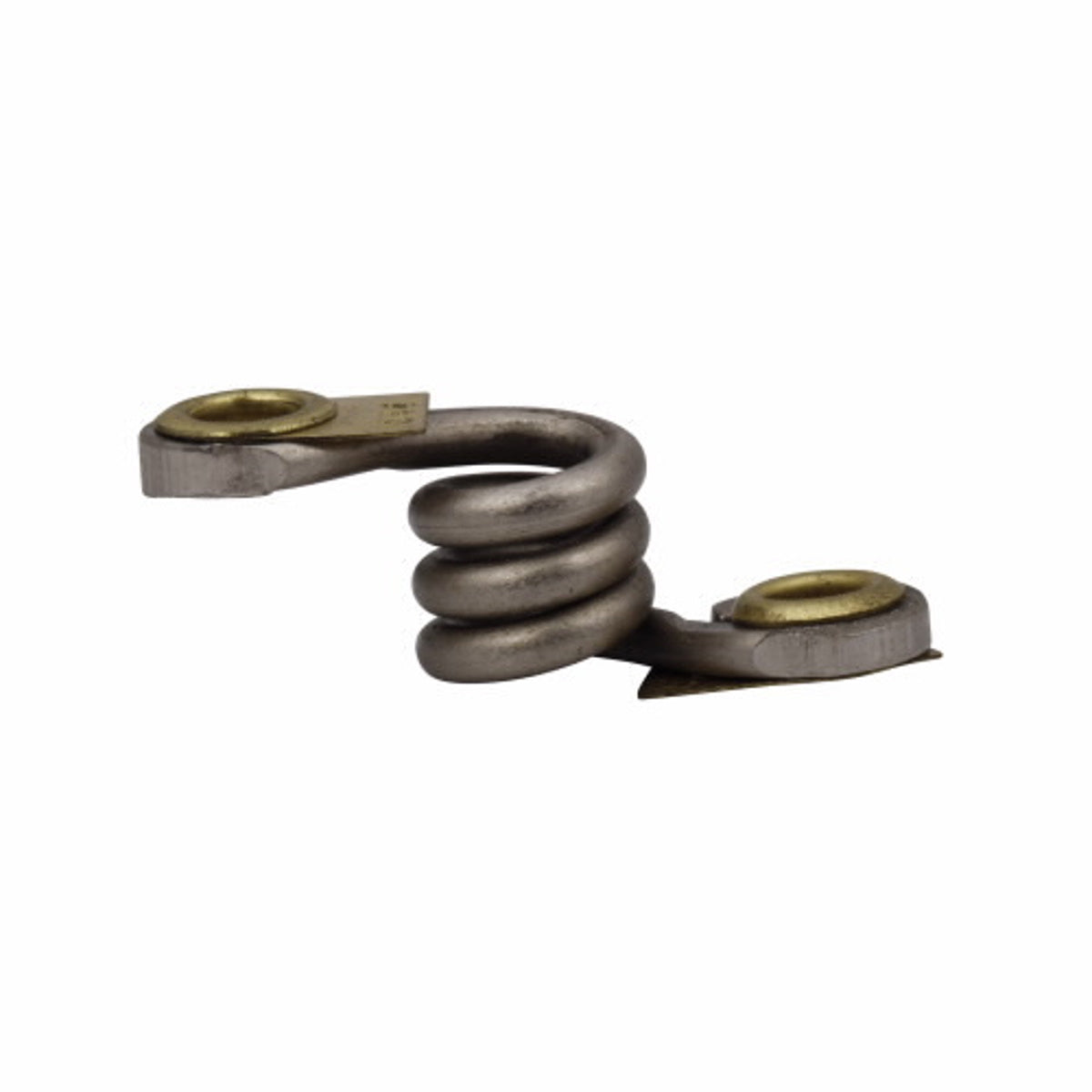

Eaton H1046 Overload Heater Element

Product Description

The Eaton H1046 overload heater element is designed for motor and power control equipment. It features adjustable bimetallic ambient compensated contactors and interchangeable heater packs. This heater coil is compatible with Citation controls and suitable for overload protection up to 900 hp. It adheres to UL/CUL standards and has a NEMA rating of 00/0/1/1.5/3/4.

• Compact, space-saving design
• State-of-the-art technology
• High strength, impact and temperature resistant insulating materials

Product Highlights

This heater coil is used with Citation Controls and has a full line of snap-on accessories common to both IEC and NEMA devices.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: H1046
• Country of Origin: Dominican Republic

Technical Specifications

• Type: Heater Coil
• Brand: Eaton
• Applications: Motor and Power Control Equipment
• Catalog Number: H1046
• Manufacturer: Eaton
• Country of Origin: Dominican Republic
• Made in USA: No
• Application: Ind Facilities & Factories - Facility: Power Distribution and Control|Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Special Features: Used with Citation Controls
• Standard: UL/CUL listed
• Item Type: Heater coil
• Enclosure Type: NEMA 00/0/1/1.5/3/4
• Full Load Current: 26.2 to 41.2 A
• Trip Type: Standard
• Full Load Current Rating: 26.2 to 41.2 A
• UNSPSC: 39122330
• Used On: Type ST/BNC/LT Overload Relay
• Includes: 5/16 in Hardware
• Motor FLA: 26.2 to 37.5 Amp
• NEMA Size: 00, 0, 1, 1-1/2, 2, 5, 6, 7, 8 (Enclosed/Open)
• Poles: 1
• Mounting: Overload Relay
• Amps Range: 28.800 - 37.800
