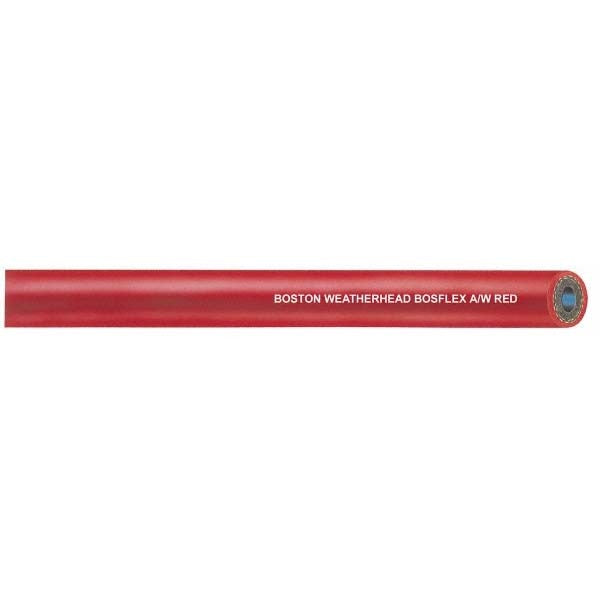

Eaton H010506RD-600R Multipurpose Air Hose 3/8 in 175 Psi

Product Description

The EATON H010506RD-600R is a multipurpose air hose sold from a 600-foot bulk coil and cut to length in 1-foot increments, with a 25-foot minimum cut length. The hose is constructed from Ethylene Propylene Diene Monomer (EPDM), a material well-suited for air service across a wide temperature range of -40 to 160 degrees F. With a 3/8-inch inside diameter and 3/4-inch outside diameter, it handles up to 175 psi working pressure. HVAC technicians, plumbers, and general trade contractors use this hose for compressed air lines, pneumatic tool supply, and shop air distribution where a flexible, cut-to-length solution is needed.

This hose is appropriate for light industrial and commercial shop environments as well as residential service vans and tool setups. Its EPDM construction resists weathering, ozone, and heat aging, making it a practical choice for both indoor and outdoor compressed air runs. The red jacket aids quick identification on busy jobsites. Because it is sold cut to length from a bulk coil, contractors can order exactly what the job requires without waste. No end connections are factory installed, so fittings are field-applied to match the specific application.

Key Features

• EPDM construction resists ozone, weathering, and heat aging across a -40 to 160 degrees F service range
• 175 psi working pressure rated for compressed air and pneumatic tool applications
• 3/8-inch ID supports standard compressed air flow rates for hand tools and small pneumatic equipment
• Cut-to-length from a 600-foot coil in 1-foot increments minimizes material waste
• No factory-installed end connections allow field selection of fittings to match system requirements
• Red jacket provides easy visual identification on multi-hose installations

Compatibility

Designed as a cut-to-length bulk air hose suitable for compressed air service lines, pneumatic tool supply, and general multipurpose air distribution where a 3/8-inch ID, 175 psi-rated EPDM hose with field-applied fittings is required.

Installation Notes

Installation is typically performed by HVAC technicians, plumbers, pipefitters, or general mechanical contractors. Depressurize and lock out the compressed air system before cutting, fitting, or connecting this hose. Use fittings and clamps rated for at least 175 psi and compatible with 3/8-inch ID hose. Do not exceed the rated working pressure or temperature limits of the hose or any installed fittings.
