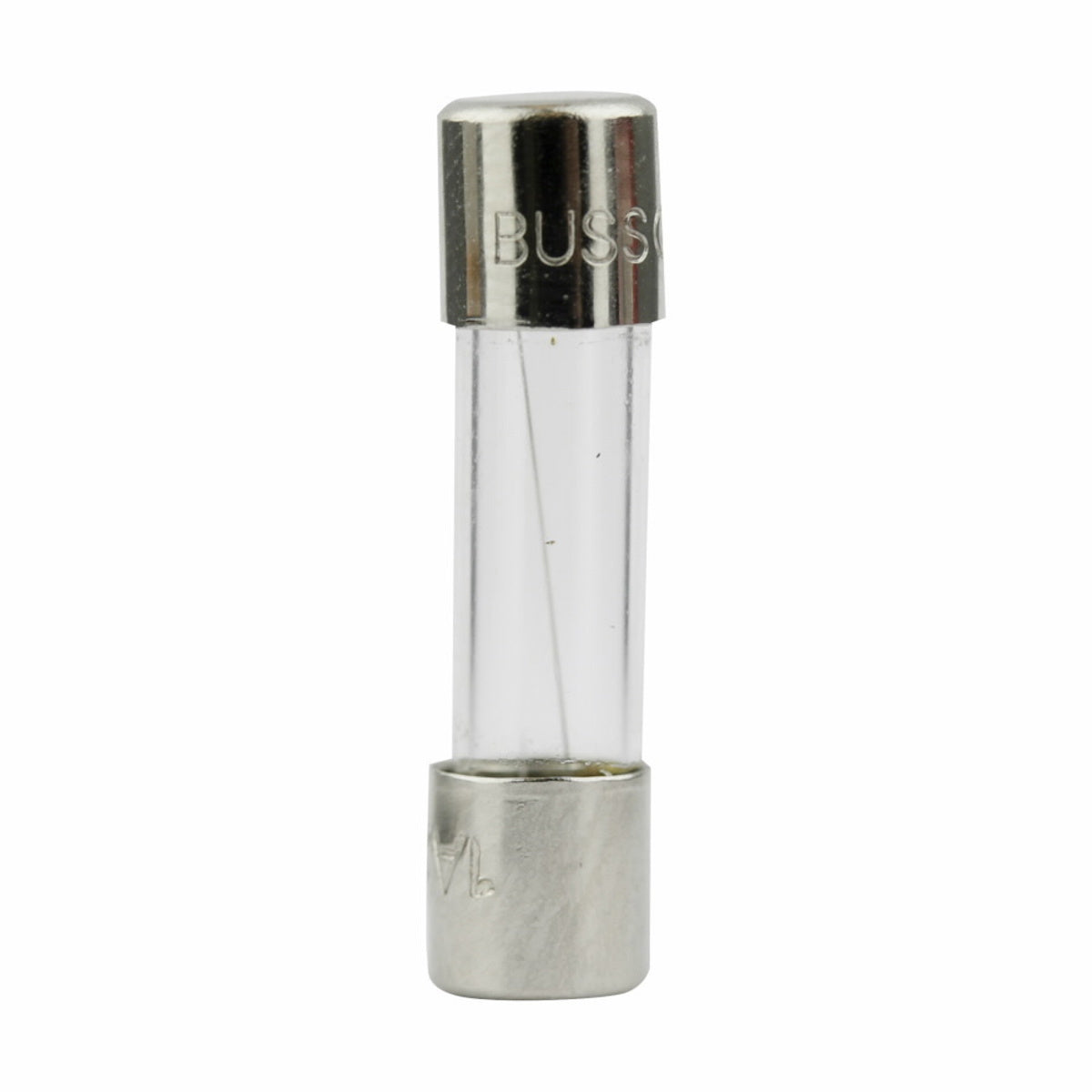

Eaton GMA-7-R Fast-Acting Fuse 7 Amp (5.2 mm Dia x 20 mm L)

Product Description

The Eaton GMA-7-R is a fast-acting glass cartridge fuse (GMA series) rated 7 A at 125 VAC for protection of electronic circuits. It has a single-element glass cylindrical body (5.2 mm diameter × 20 mm length) with ferrule terminals for holder mounting and a non-indicating, non-rejection design. Interrupt rating is 200 A at 125 VAC and response characteristics are 60 minute maximum at 135% and 2 minute maximum at 200%.

• Rated 7 A at 125 VAC with 200 A interrupt rating
• Glass cylindrical body 5.2 mm dia x 20 mm length; single-element with ferrule terminals for holder mounting
• Response time: 60 minute max at 135% and 2 minute max at 200%; RoHS, UL 248-14, and CSA listed

Product Highlights

Fast-acting glass cartridge fuse; 7 A, 125 VAC; 5.2 mm × 20 mm body; 200 A interrupt; UL and CSA certifications

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: GMA-7-R

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: GMA-7-R
• Series: GMA
• Type: Fast-acting, low breaking small dimension
• Amperage Rating: 7 A
• Voltage Rating: 125 VAC
• Interrupt Rating: 200 A at 125 VAC
• Body Size: 5.2 mm diameter x 20 mm length
• Body Type: Glass cylindrical
• Material: Glass (ferrule terminals with brass end caps noted)
• Element: Single
• Terminal Type: Ferrule
• Mounting Type: Holder
• Indicating: Non-indicating
• Rejection: Non-rejection
• Response Time: 60 minute max at 135%; 2 minute max at 200%
• Standards/Approvals: RoHS Compliant; UL listed (UL 248-14, File No. E19180); CSA certified
• UPC: 051712648042
• Weight: 0.002 lb
