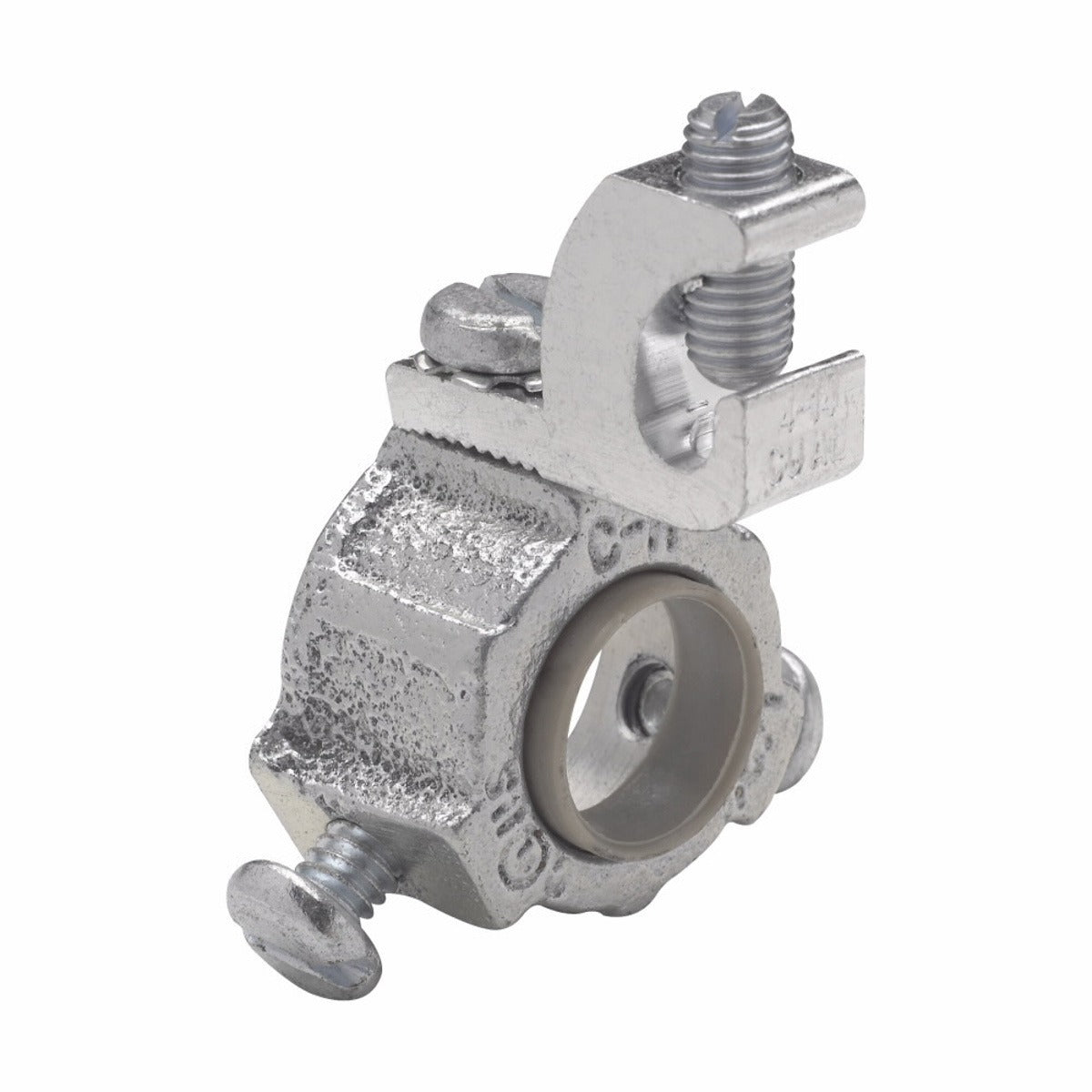

Eaton GLS8 Grounding Bushing Threadless Rigid/IMC 3 In

Product Description

The Eaton GLS8 is a Crouse-Hinds series insulated grounding bushing for use with threaded and threadless rigid/IMC conduit to provide a grounding path through an insulated throat. It has a malleable iron body with a plastic throat liner, an aluminum lug that accepts 8 AWG to 1/0 AWG conductors, a set screw grounding connection, and a 105°C temperature rating. It is UL and CSA listed for ordinary locations.

• Threadless grounding bushing for rigid/IMC conduit; trade size 3 in with set screw grounding lug
• Malleable iron body with plastic throat liner and aluminum lug accepting 8 AWG to 1/0 AWG
• Rated 105°C; UL Listed, cUL Listed, and CSA Certified for commercial and institutional applications

Product Highlights

Insulated, threadless 3 in grounding bushing with aluminum lug for 8–1/0 AWG, malleable iron body, plastic throat liner, 105°C rating, UL/CSA approvals.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: GLS8
• Country of Origin: India
