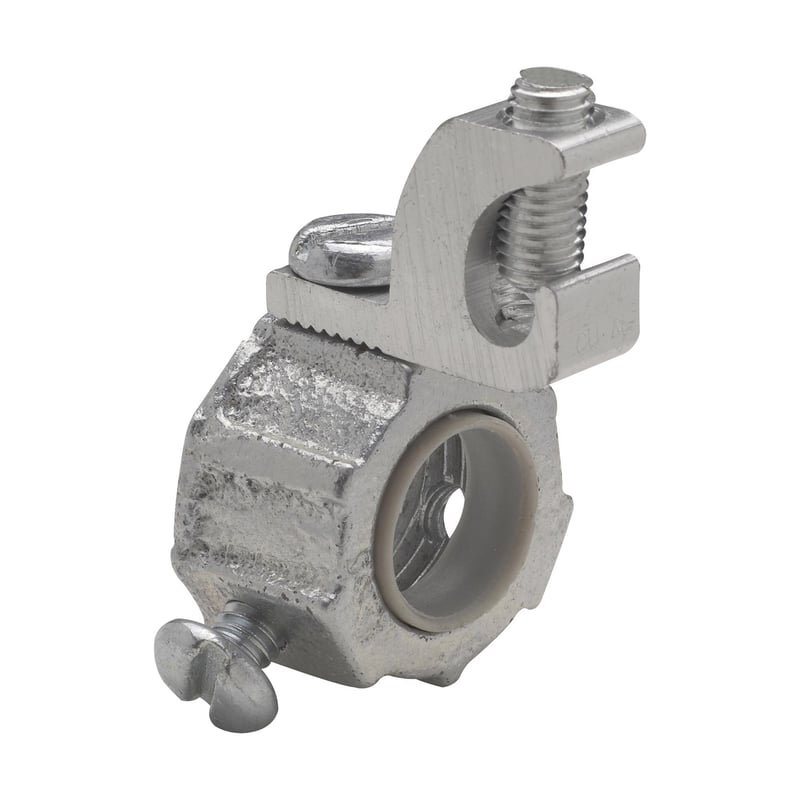

Eaton GLL6 2IN Insulated Grounding Bushing

Product Description

This Eaton GLL6 2 inch insulated grounding bushing is designed for use with rigid and IMC conduit. It features a malleable iron body and comes with an aluminum lug that accommodates wire sizes from #4 to #14 AWG. The component has a temperature rating of 105 degrees Celsius and is threaded for secure installation.

• Fits #4 to #14 AWG wire sizes
• Temperature rating of 105 degrees Celsius
• Made from malleable iron with a plastic throat liner

Product Highlights

This grounding bushing is suitable for commercial and institutional buildings.

Product Information

Standard Information

• Brand: Eaton
• Type: Grounding bushing

Technical Specifications

• Size: 2 inches
• Connection: Threaded
• Material: Malleable iron body, plastic throat liner
• Dimensions: 2.75 inches x 2.75 inches x 0.88 inches
• UNSPSC: 39121312
• Application: Suitable for commercial and institutional buildings
• Box Quantity: 10
• Special Features: With 14 to 4 AWG aluminum lug for copper/aluminum grounding conductor
