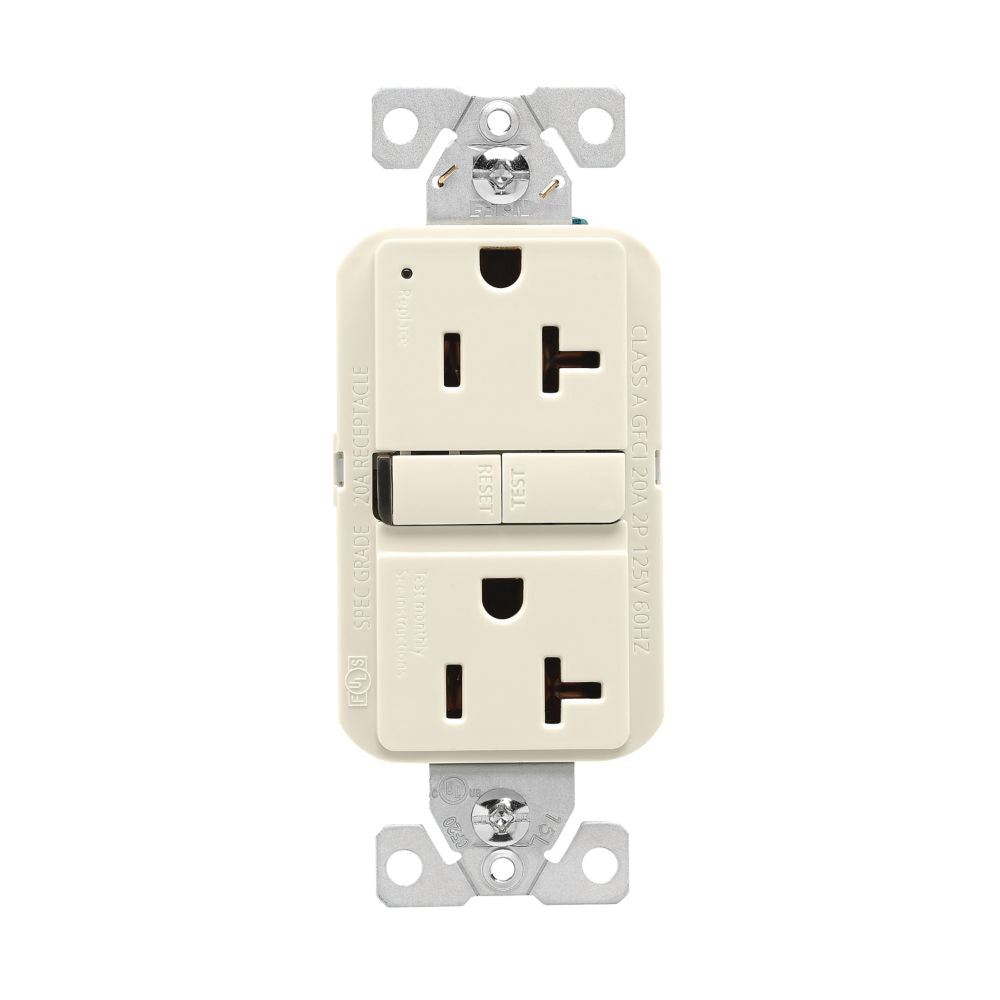

Eaton GF20LA Self-Test GFCI 20A 125V Slim Design

Product Description

The Eaton GF20LA is a self-test GFCI receptacle with a slim design. Rated at 20A and 125V, this GFCI provides electrical shock protection and performs automatic self-tests to ensure GFCI protection. It features a safety lock-out to protect against mis-wired line-load connections. Suitable for residential applications and other use cases requiring GFCI protection.

• Slim design
• Self-test functionality

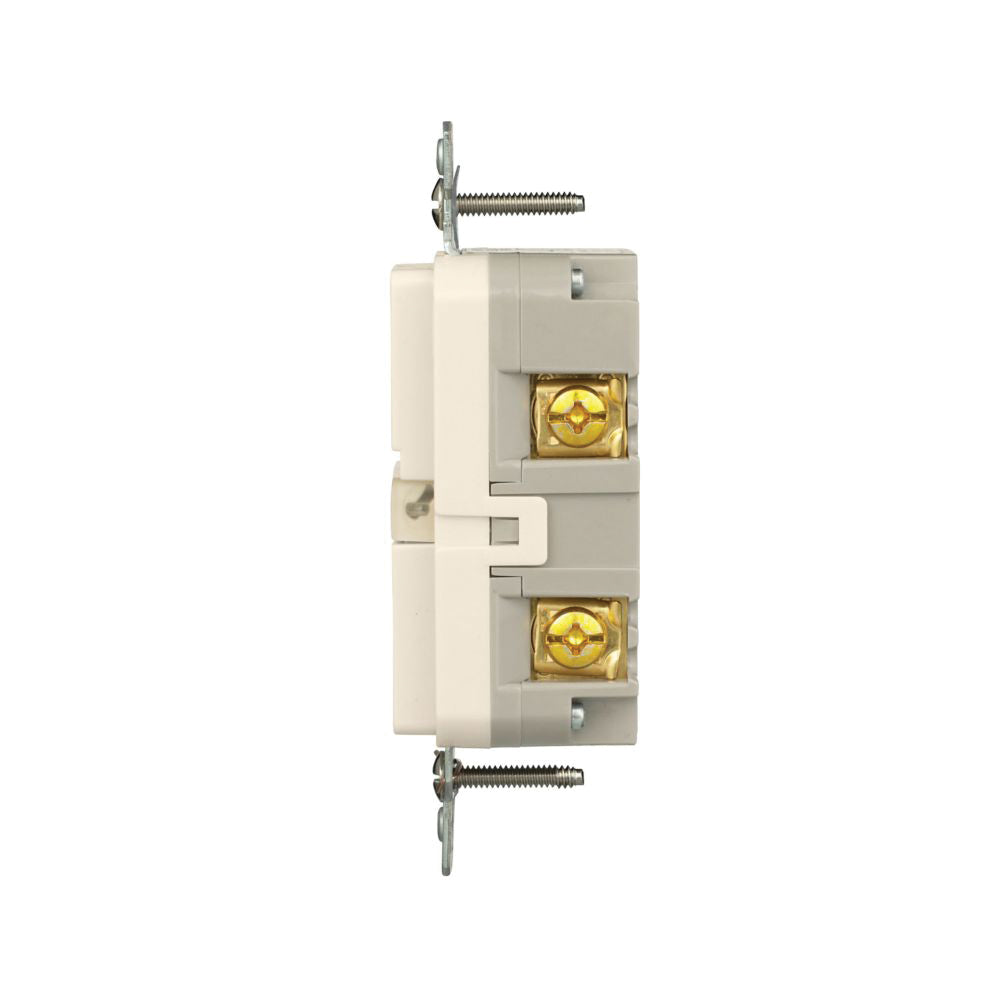

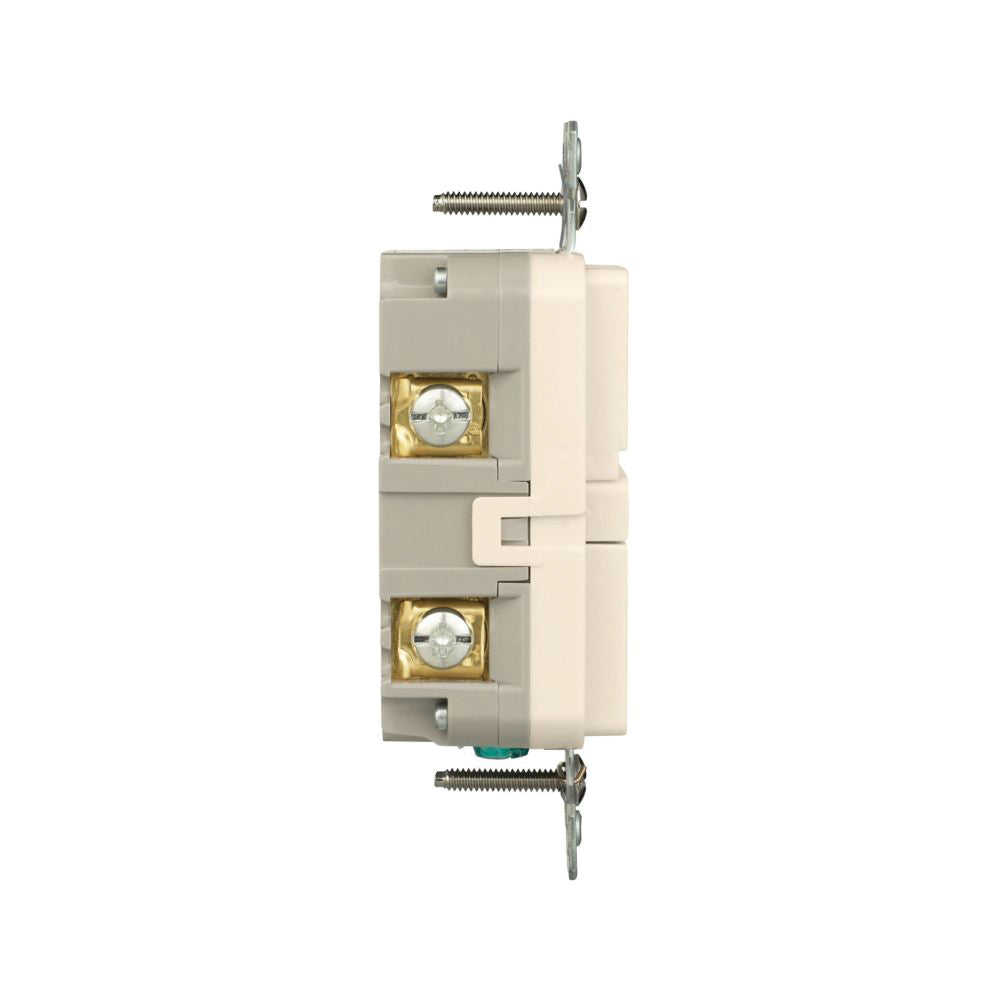

• Back and side wire

Product Highlights

This Eaton GFCI receptacle offers dependable electrical shock protection with a slim design for easy installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: GF20LA

Technical Specifications

• Product Name: Eaton slim GFCI receptacle
• Catalog Number: GF20LA
• UPC: 032664012976
• Product Length/Depth: 1.03 in
• Product Height: 4.19 in
• Product Width: 1.69 in
• Certifications: cULus Listed NOM
• Product Type: Slim GFCI receptacle
• Special features: Slim design
• Type: Self-test
• Amperage Rating: 20A
• Voltage Rating: 125V
• Circuit interrupter type: GFCI
• Packaging type: ED Box
• Features: FedSpec Certified
• Wiring method: Back and side wire
• Allowable wire size: #14-10 AWG
• NEMA configuration: 5-20R
• Torque rating: 16 lbf-in
• Package Quantity: 1
• Number of Poles: 2
• Short Circuit Current Rating: 10 kA
• Grounding Type: Automatic
• Number of Wires: 3
• Wire Size: 14 to 10 AWG
• Wiring Type: Back, Side
• NEMA Rating: NEMA 5-20R
• Operating Temperature: -35 to 66 deg C
• Material: Polycarbonate/Steel/Thermoplastic/PVC
• Current Rating (Amps): 20A
• Connector Style: NEMA 5-20R
• Connector Type: Receptacle, Female Sockets
• Mounting Type: Free Hanging (In-Line)
• Termination: Screw
• Material Flammability Rating: UL94 V-2
• Approval Agency: cULus, NOM
