Eaton GDA-5A BUS 250V MIN (5) Replacement MPN GDA-5A

Product Description

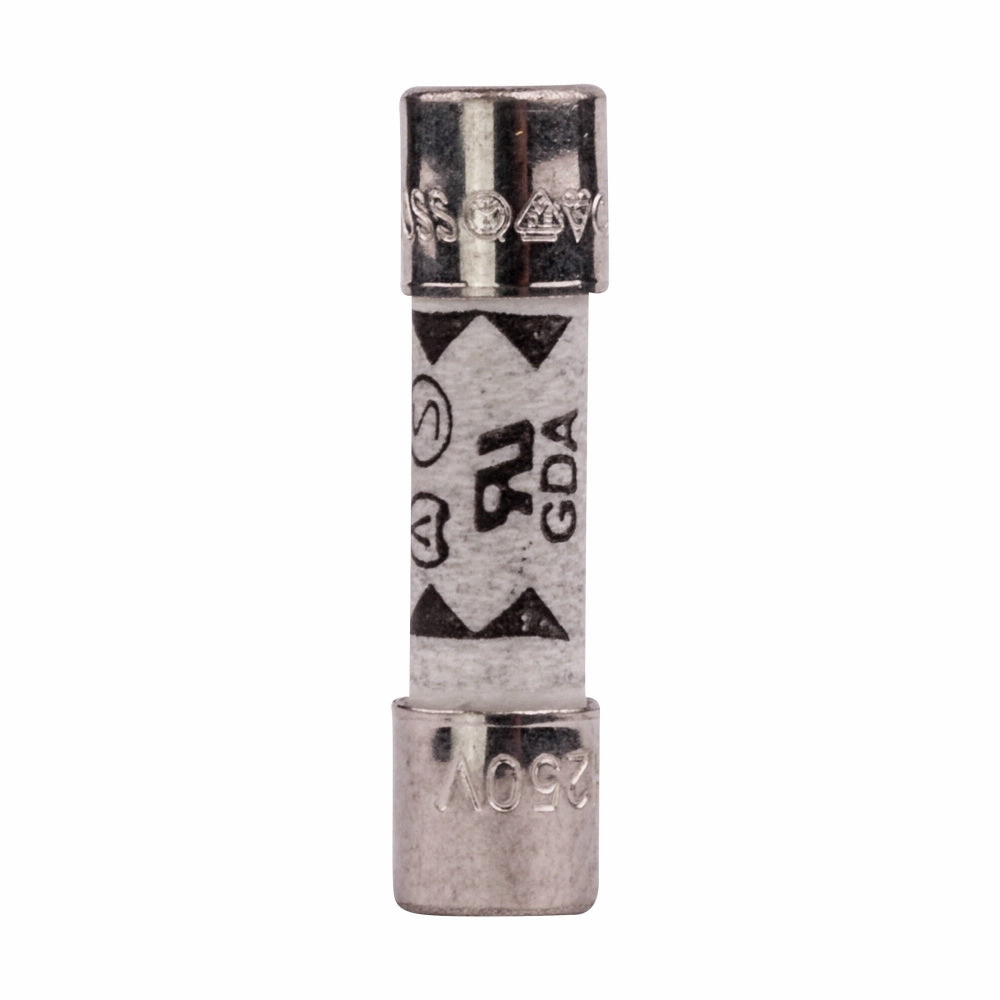

The Eaton GDA-5A is a fast-acting fuse designed for electronic circuits. This fuse has a current rating of five amps and is rated for 250 volts AC and 32 volts DC. It features a cylindrical body made of ceramic with a body size of five point two millimeters in diameter by twenty millimeters in height.

• Fast acting for maximum protection.
• Rated for high break capacity in electronic applications.
• Nickel plated brass end caps included.

Product Highlights

This fuse is ideal for protecting sensitive electronic components from overloads and short circuits.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171243136

Technical Specifications

• Amperage Rating: 5 A
• Application: Electronic Circuits
• Body Size: 5.2 mm Dia x 20 mm H
• Body Type: Cylindrical
• Element: Single
• Frequency Rating: 50 Hz
• Indicating: Non-Indicating
• Material: Ceramic
• Mounting Type: Clip/Holder
• Response Time: 60 min, 30 min, 10 ms, 3 s, 3 ms, 300 ms, 20 ms
• Series: GDA
• Standards/Approvals: UL Guide JDYX2, File No. E19180 Recognized, CSA File No. 53787, IEC 60127-2
• Terminal Type: Ferrule
• Type: Small Dimension
• Voltage Rating: 250 VAC, 32 VDC
