Product Description

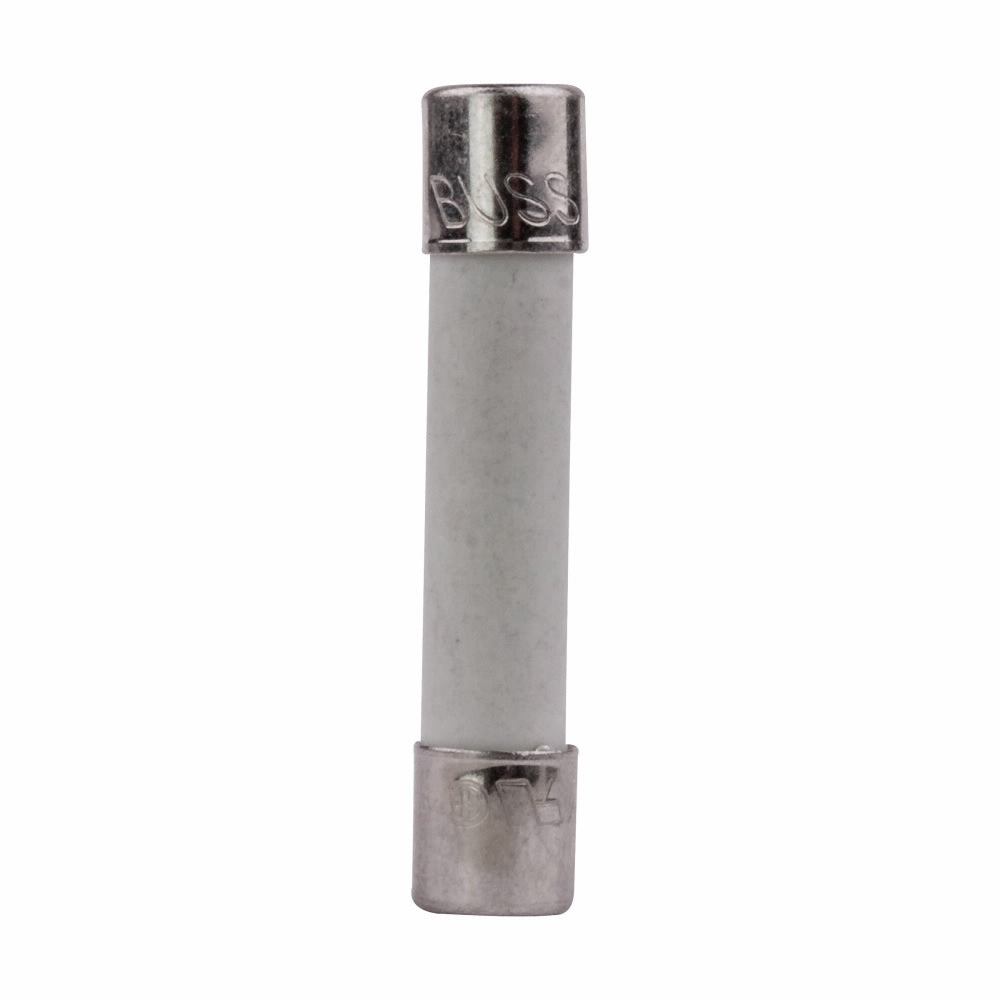

The Eaton GBB-12-R is a Bussmann very fast acting fuse designed for sensitive electronic circuits. This fuse is rated for twelve amperes with a voltage capacity of two hundred fifty volts alternating current and one hundred twenty-five volts direct current. It is a size three AB fuse type providing a reliable solution for overcurrent protection.
- Very fast acting for sensitive electronic protection
- Ceramic construction with nickel plated brass end caps
- Response times of one second at two hundred fifty percent of amperage rating
Product Highlights
Designed for applications needing rapid response to faults, this fuse is ideal for protecting sensitive electronic equipment.
Product Information
Standard Information
-
Manufacturer: Eaton
-
Manufacturer Part Number: GBB-12-R
Technical Specifications
-
Amperage Rating: 12 A
-
Voltage Rating: 250 VAC, 125 VDC
-
Body Size: 1/4 in Dia x 1-1/4 in L
-
Body Type: Cartridge
-
Material: Ceramic
-
Response Time: 1 s, 2 min
-
Series: GBB
-
Terminal Type: Ferrule
-
Standards/Approvals: RoHS Compliant, UL Recognized to 248-14, CSA Class 1422-30, CE Certified
