Product Description

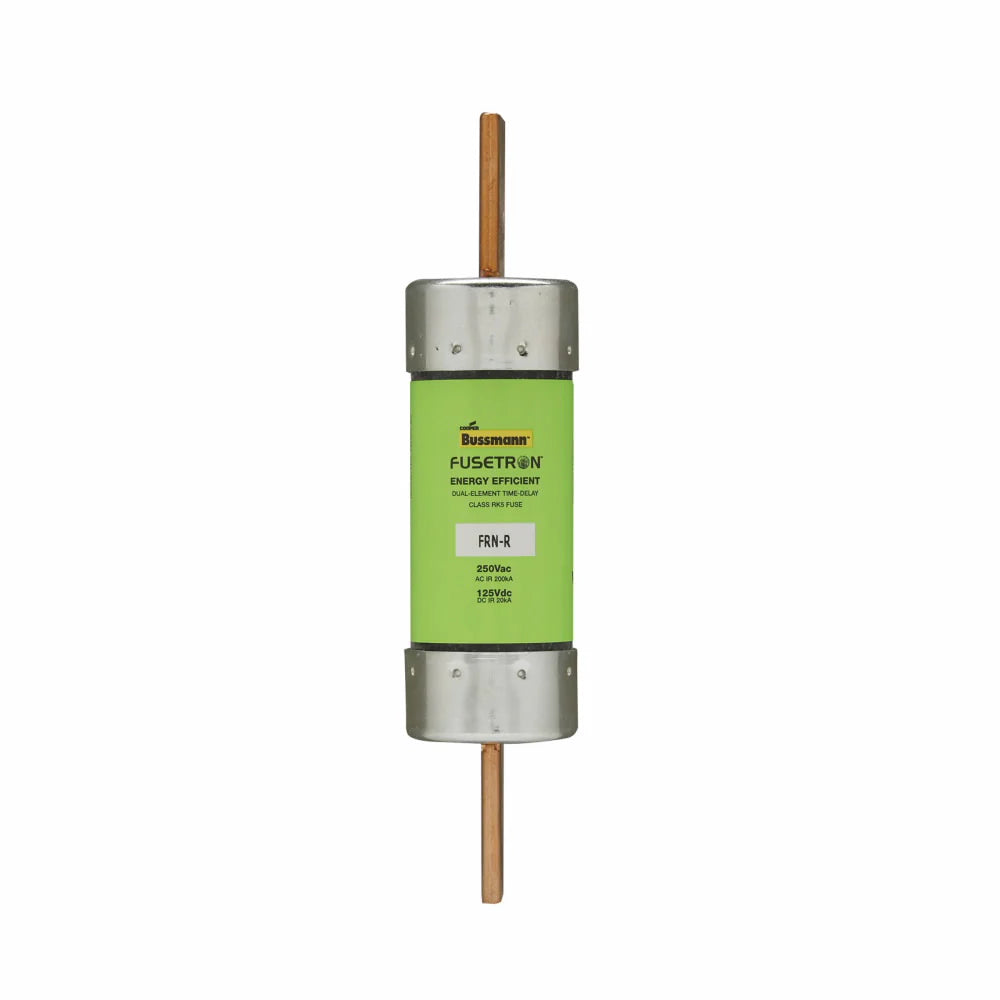

The Eaton FRN-R-200 is a Bussmann Fusetron time delay fuse designed for protection in electrical systems. This current limiting fuse operates at two hundred amps with a voltage rating of two hundred fifty VAC and one hundred twenty-five VDC. It features an interrupt rating of twenty kA at one hundred twenty-five VDC and two hundred kA at two hundred fifty VAC.
- Provides motor overload and short circuit protection.
- Suitable for machinery disconnects and motor control centers.
- Meets CE and UL safety standards.
Product Highlights
Engineered for use in various applications, including safety systems, this fuse has dual elements and fiberglass construction for enhanced durability.
Product Information
Standard Information
-
Manufacturer: Eaton
-
Application: Combination starters, machinery disconnects, motor control centers
Technical Specifications
-
Amperage Rating: 200 A
-
Voltage Rating: 250 VAC/125 VDC
-
Body Size: 1.56 inches diameter x 7.13 inches length
-
Class: RK5
-
Material: Fiberglass
-
Response Time: 10 seconds at 500%
-
Terminal Type: Blade
-
Standards/Approvals: CE Certified, UL 248-12, CSA C22.2 No. 248.12
