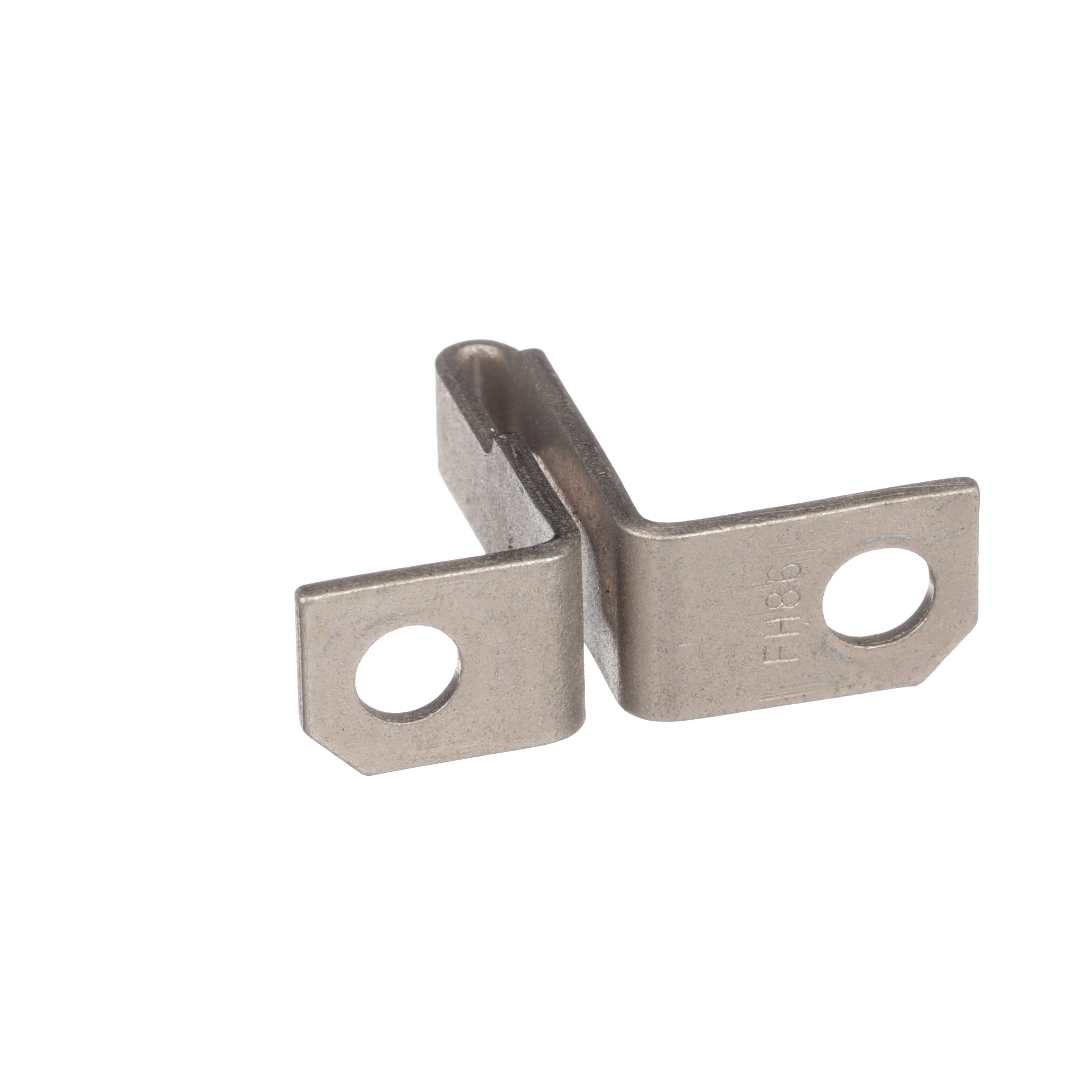

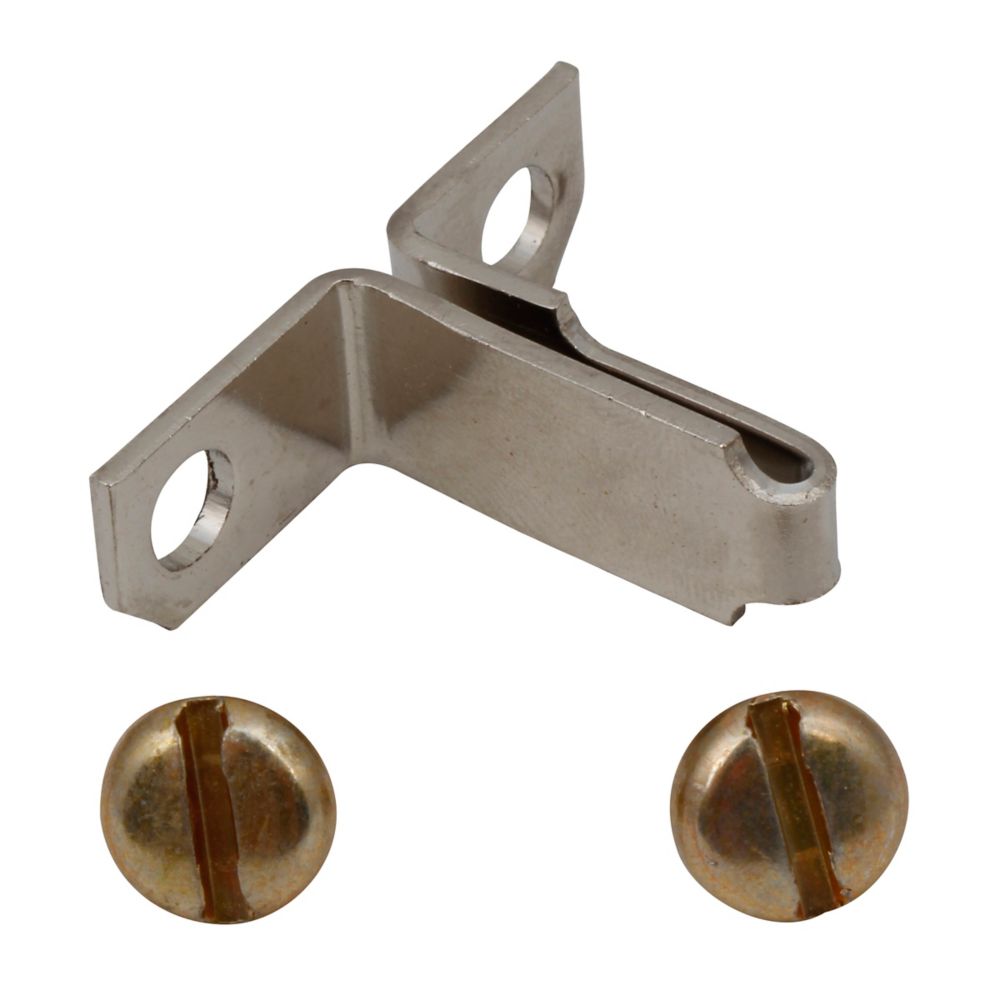

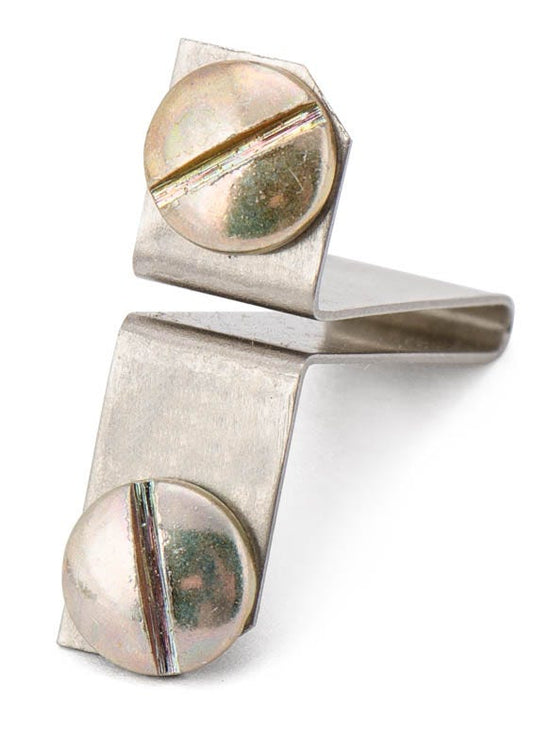

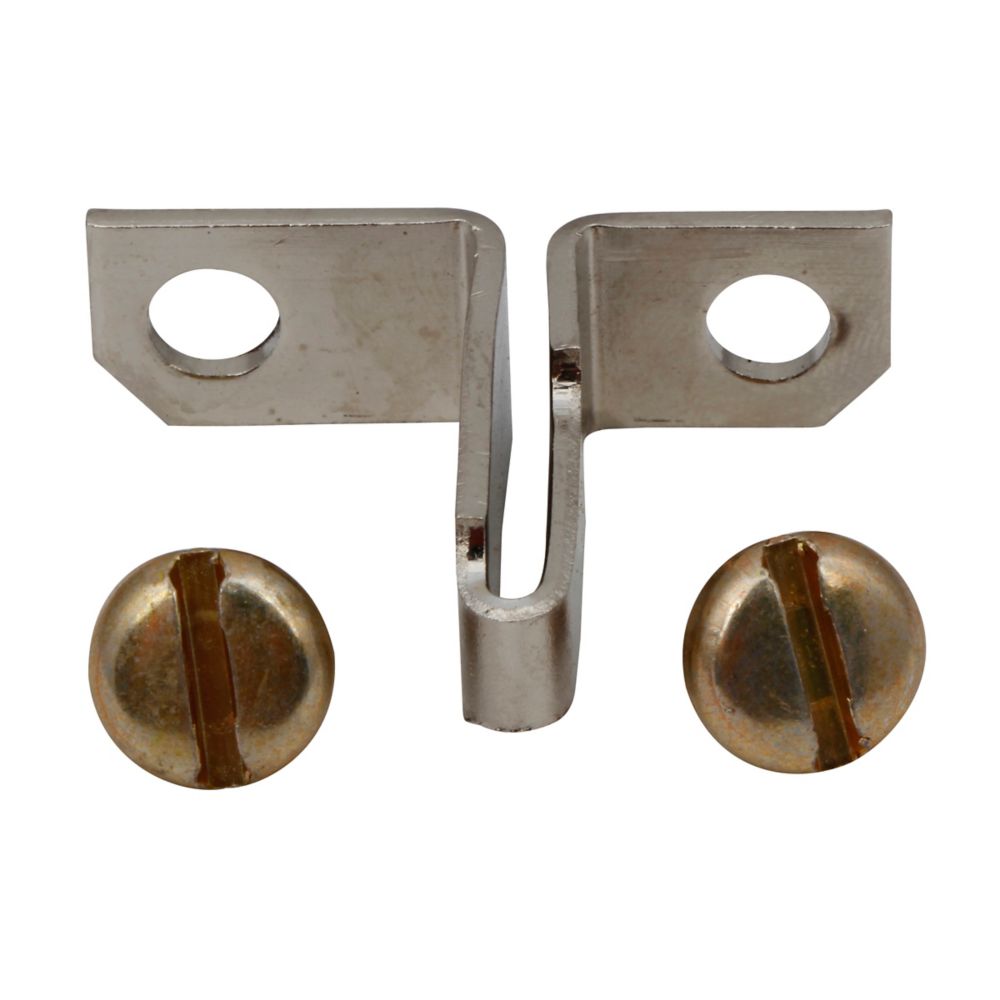

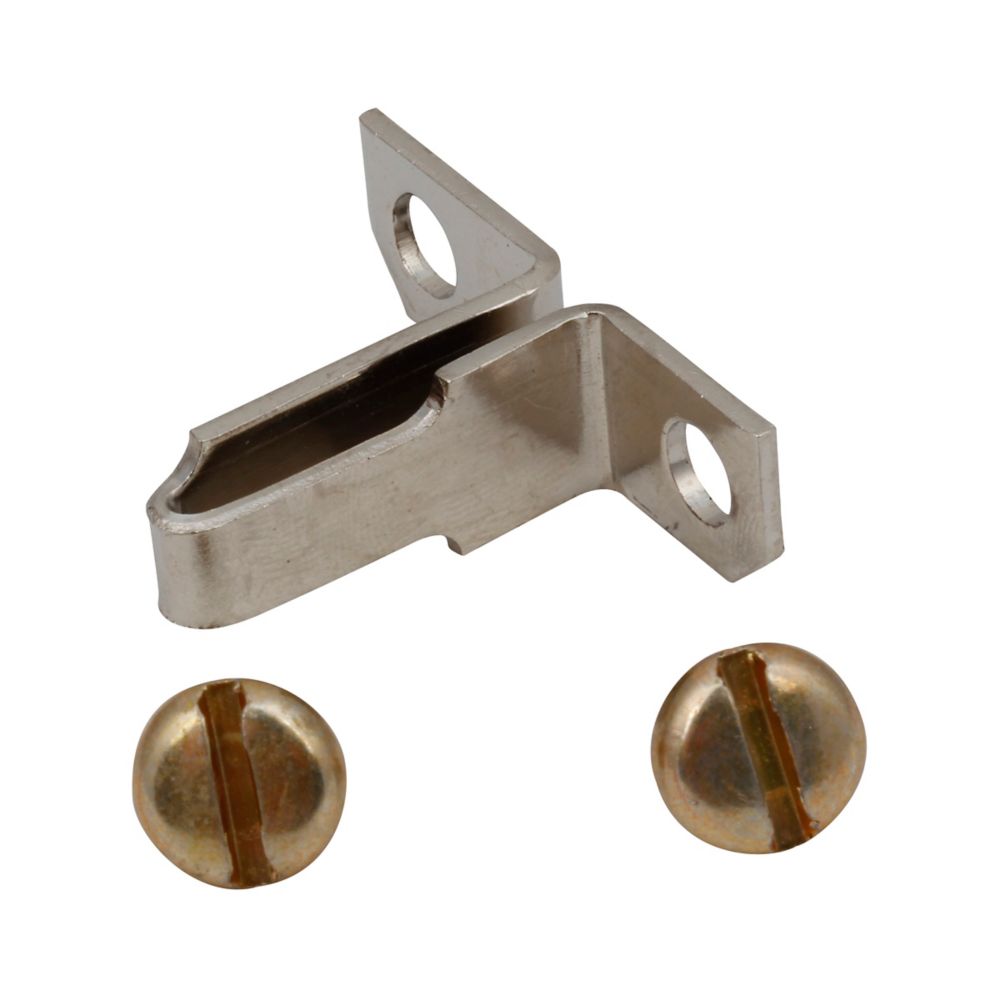

Eaton FH86 A200/B100 heater

Product Description

The Eaton FH86 A200/B100 heater is designed for use with A200 starter sizes 3 and 4, and is compatible with 3-phase systems. This A200 heater features a NEMA design and provides both thermal and fast trip functionality. It supports ambient full load current range of 74-78A and non-comp full load current range of 68-72A.

• Used with A200 Starter Sizes 3 & 4, 3-Phase Only
• NEMA design
• Thermal and fast trip

Product Highlights

The Eaton FH86 heater is ideal for thermal overload protection in magnetic motor starters and motor controls.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH86
• Country of Origin: Malaysia

Technical Specifications

• Catalog Number: FH86
• UPC: 786678671024
• Product Length/Depth: 2.1 in
• Product Height: 0.8 in
• Product Width: 1.3 in
• Certifications: CSA Certified UL Listed
• Global Catalog: FH86
• Product Type: Heater
• Special features: Used with A200 Starter Sizes 3 & 4, 3-Phase Only
• Type: A200 Heater
• Used with: Used with A200 Starter Sizes 3 & 4, 3-Phase Only
• Design: NEMA
• Full load current range: Ambient 74-78 A, Non-Comp 68-72 A
• Overload relay: Type A and B
• Trip type: Thermal and fast trip
• Manufacturer: Eaton Cutler-Hammer
• Family: A200 Series
• Category: Overload Relays
• Part #: FH86
• Brand: Eaton/Cutler-Hammer
• Series: A200/B100
• Amperage: 68-72
• Approval: UL, CSA
• Protection: Thermal
• Length (in): 2.1
• Width (in): 1.3
• Height (in): 0.8
• For Use With: A200 Starter Sizes 3 and 4, 3-Phase, Thermal Overload Relays, Magnetic Motor Starters and Motor Controls
• Standards: NEMA
• Nema Size: 3, 4
• Mpn: FH86
• Gtin: 786678671024
