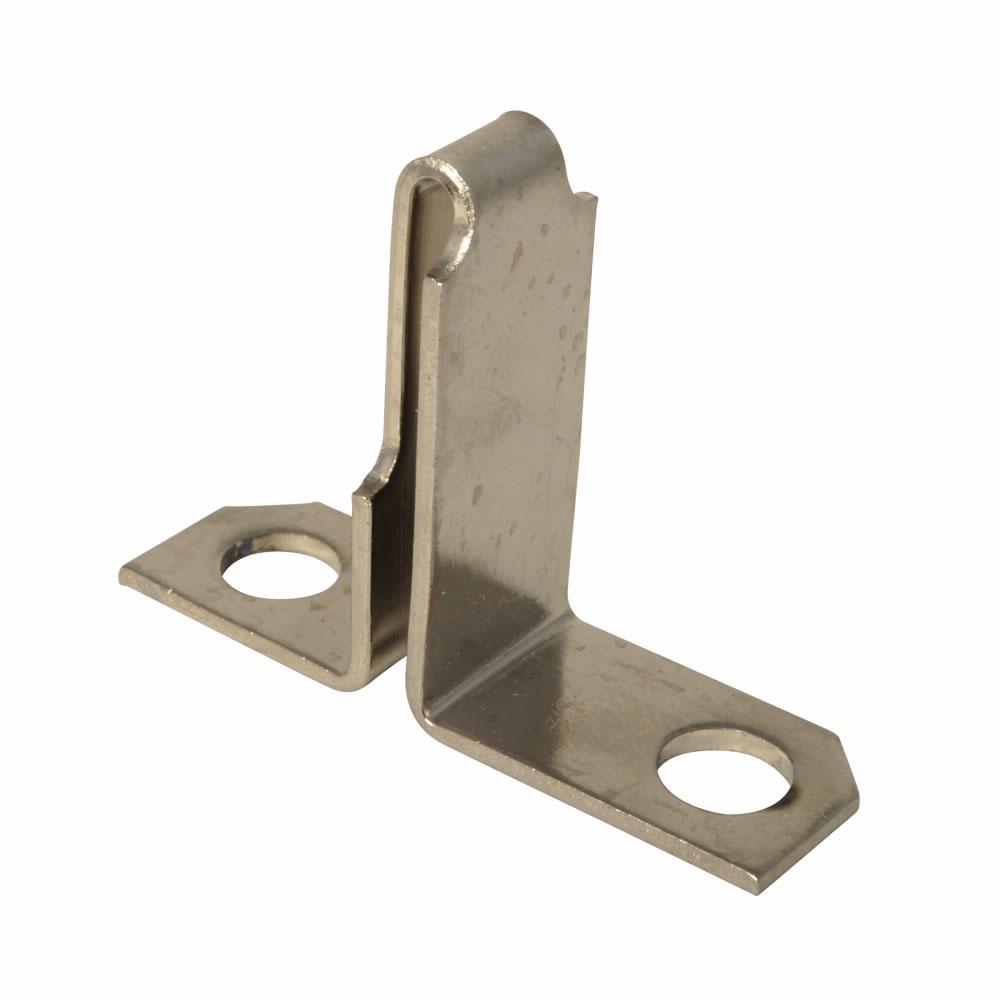

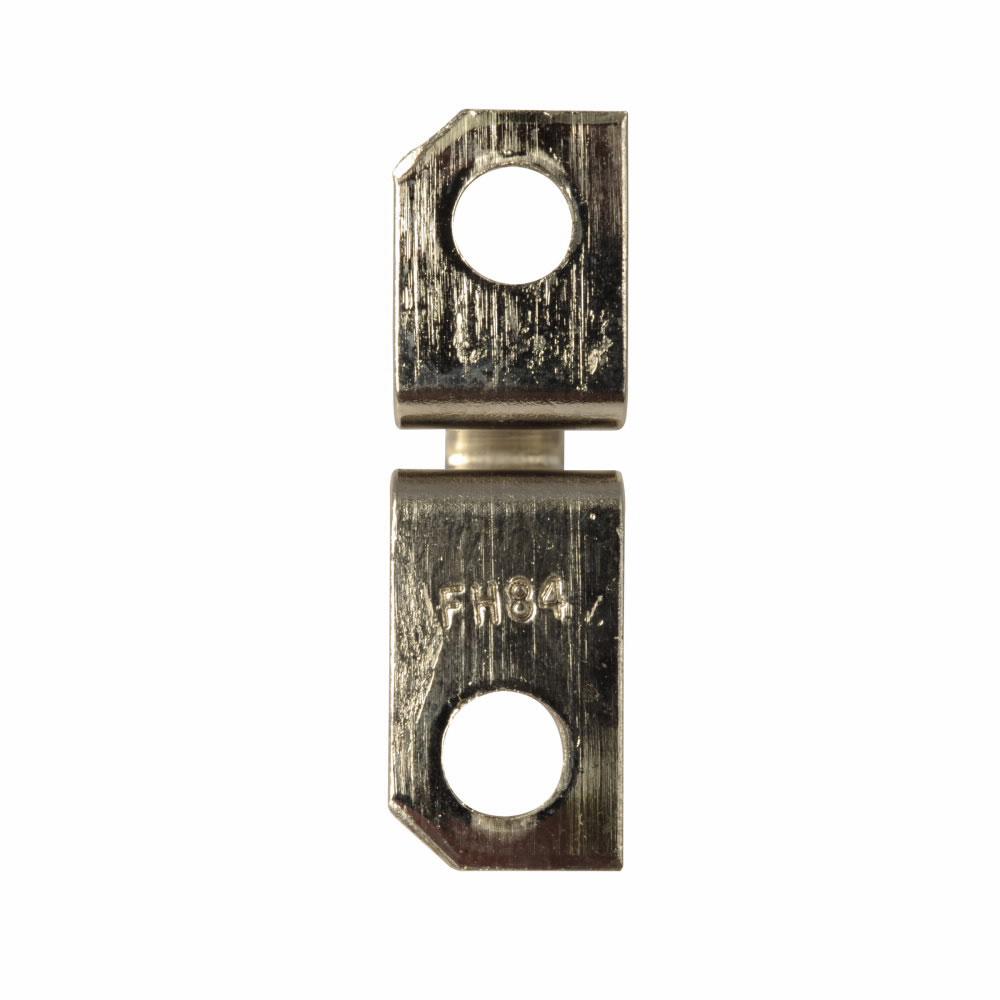

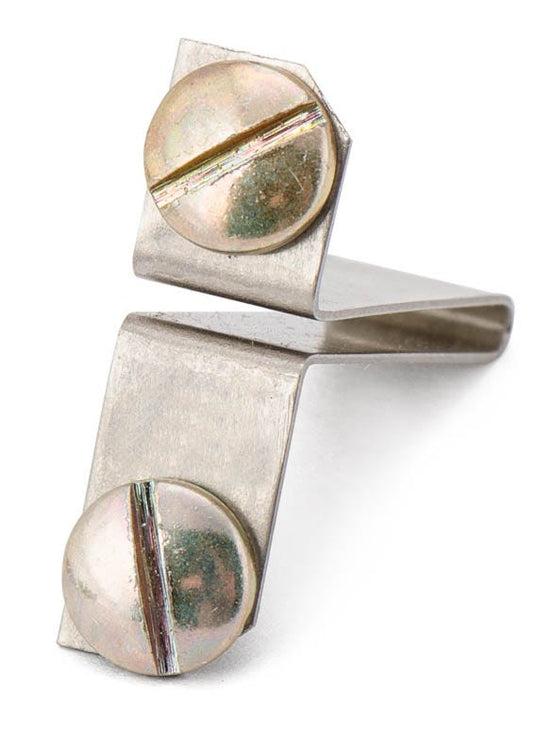

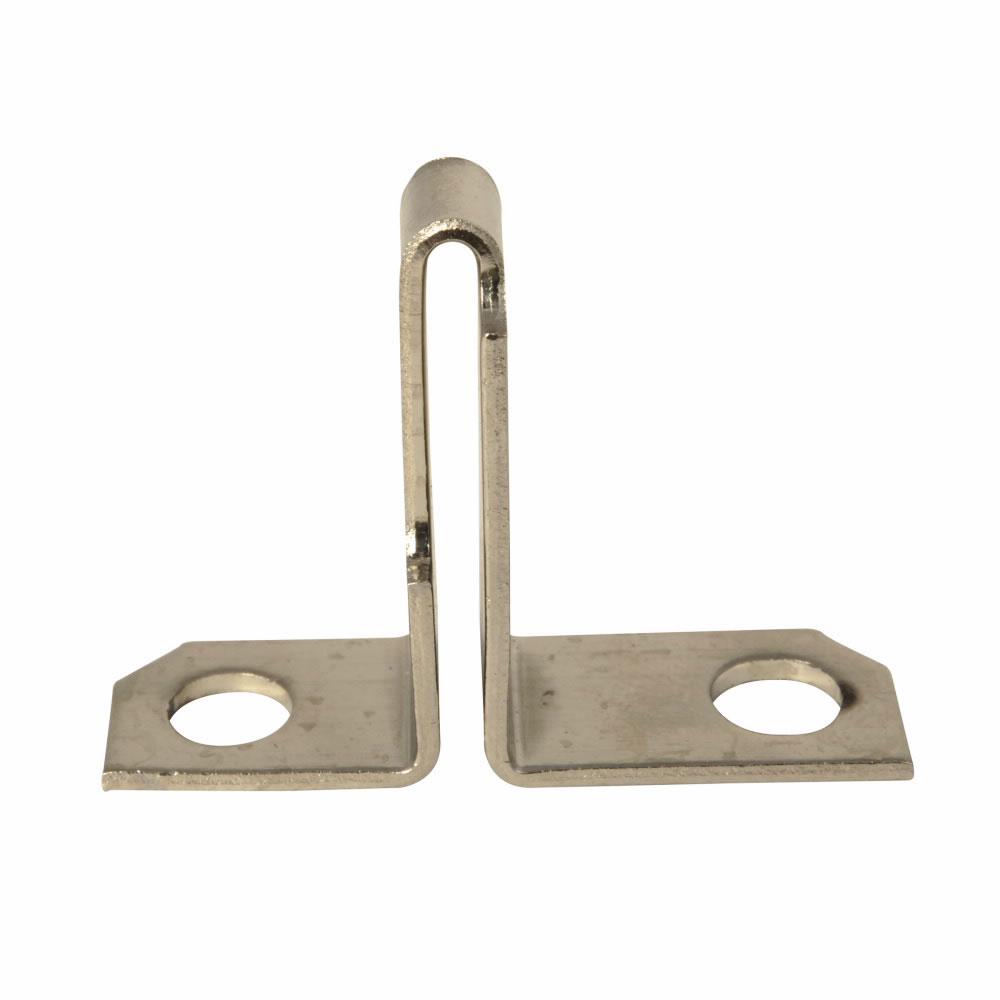

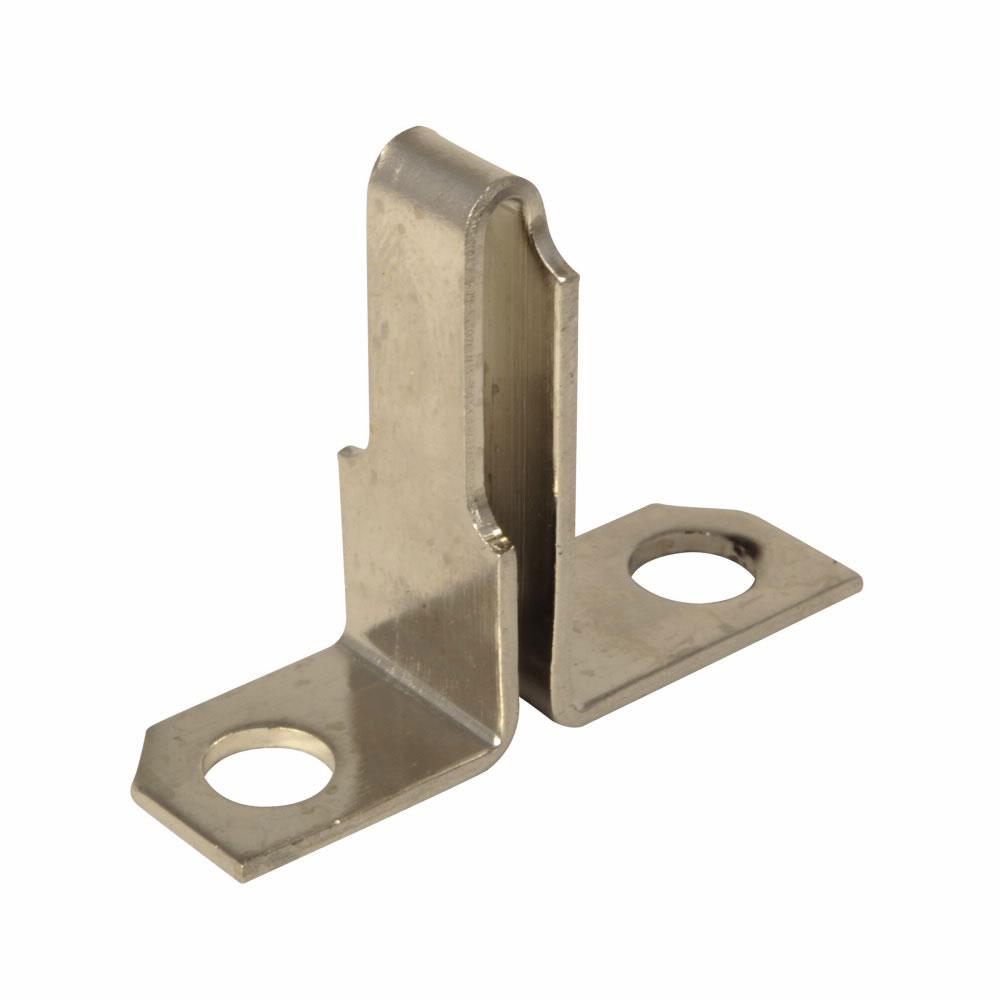

Eaton FH84 Overload Heater Element

Product Description

The Eaton/Cutler-Hammer FH84 is an overload heater element with a current rating of 57-61 Amps. It is used for A200 starter sizes 3 and 4, 3-phase, thermal overload relays, magnetic motor starters and motor controls. It is NEMA standards compliant.

• Replacement heater element
• Technically compatible with A200 series Size 3 overl. rlys
• Technically compatible with A200 series Size 4 overl. rlys

Product Highlights

The Eaton FH84 overload heater element is for use with A200 starter sizes 3 and 4, 3-phase, thermal overload relays, magnetic motor starters and motor controls.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH84

Technical Specifications

• Brand: Eaton/Cutler-Hammer
• Series: C Series
• Amperage: 57-61
• Approval: UL, CSA
• Protection: Thermal
• Length (in): 2.1
• Width (in): 1.3
• Height (in): 0.8
• For Use With: A200 Starter Sizes 3 and 4, 3-Phase, Thermal Overload Relays, Magnetic Motor Starters and Motor Controls
• Standards: NEMA
• Nema Size: 3, 4
• Mpn: FH84
• Upc: 786678670966
• Gtin: 786678670966
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Spare part
• Sub-range name: FH
• Functions: Replacement heater element
• Technical compatibility with: A200 series Size 4 overl. rlys
• Manufacturer product status: Commercialized
• Design: NEMA
• Full Load Current Range: Ambient 62-66 A, Non-Comp 57-61 A
• Overload Relay: Type A and B
• Used with: A200 Starter Sizes 3 & 4, 3-Phase Only
• Trip Type: Thermal and fast trip
• Frame: F
• Phase: 1
• UNSPSC: 39122330
• Material: Glass Polyester
• Application: For A200 series 3-phase size 3 and 4 starter, safety and emergency exit devices, industrial facilities and factories facility applications
• Enclosure Type: NEMA 3/4
• Voltage Rating: 600 VAC/250 VDC
• Connection Type: Load Side Terminal
• Frequency Rating: 50/60
• Temperature Rating: 40
• Type: Type B100
