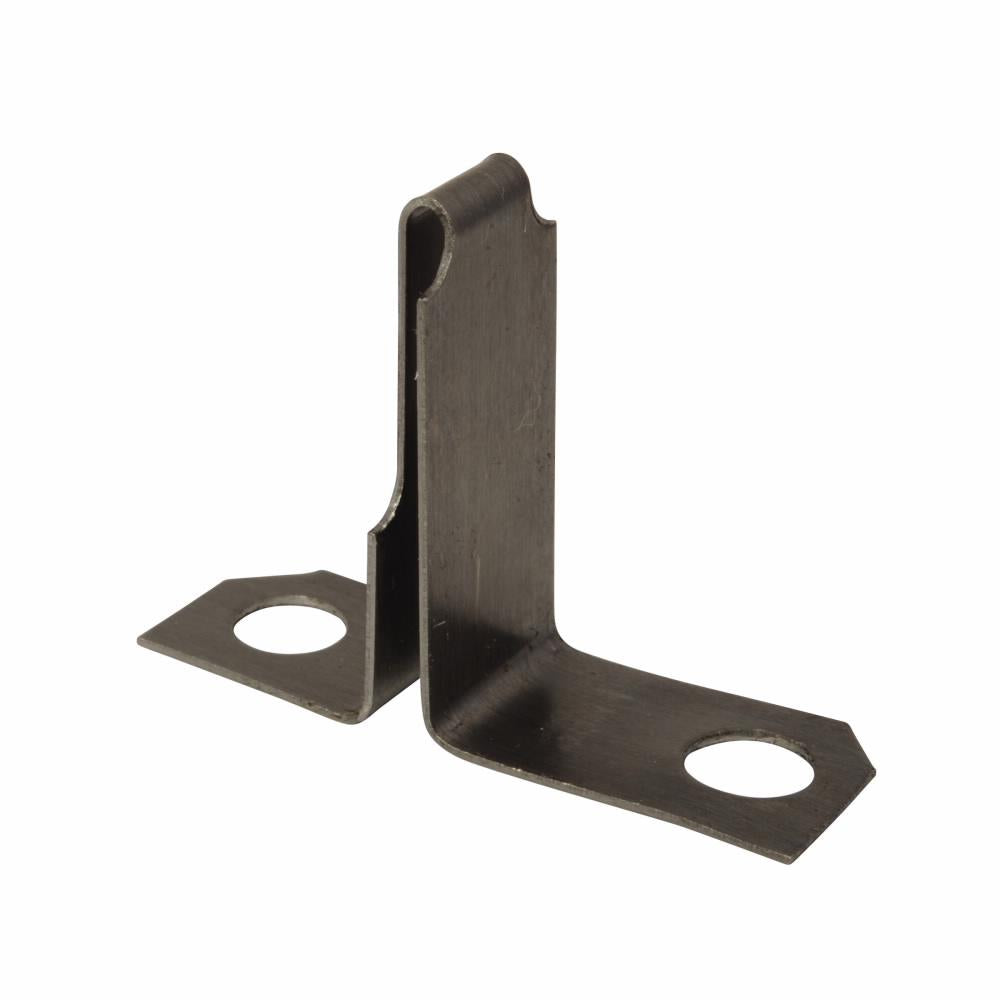

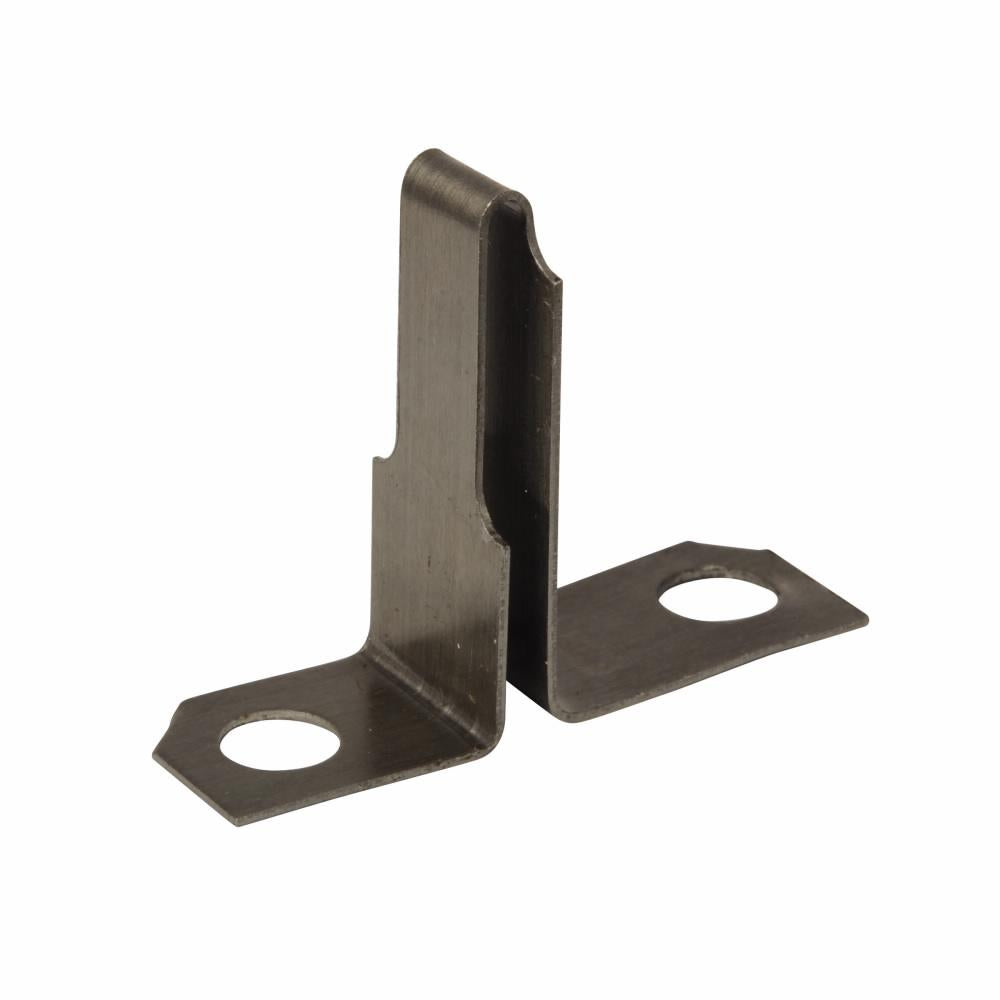

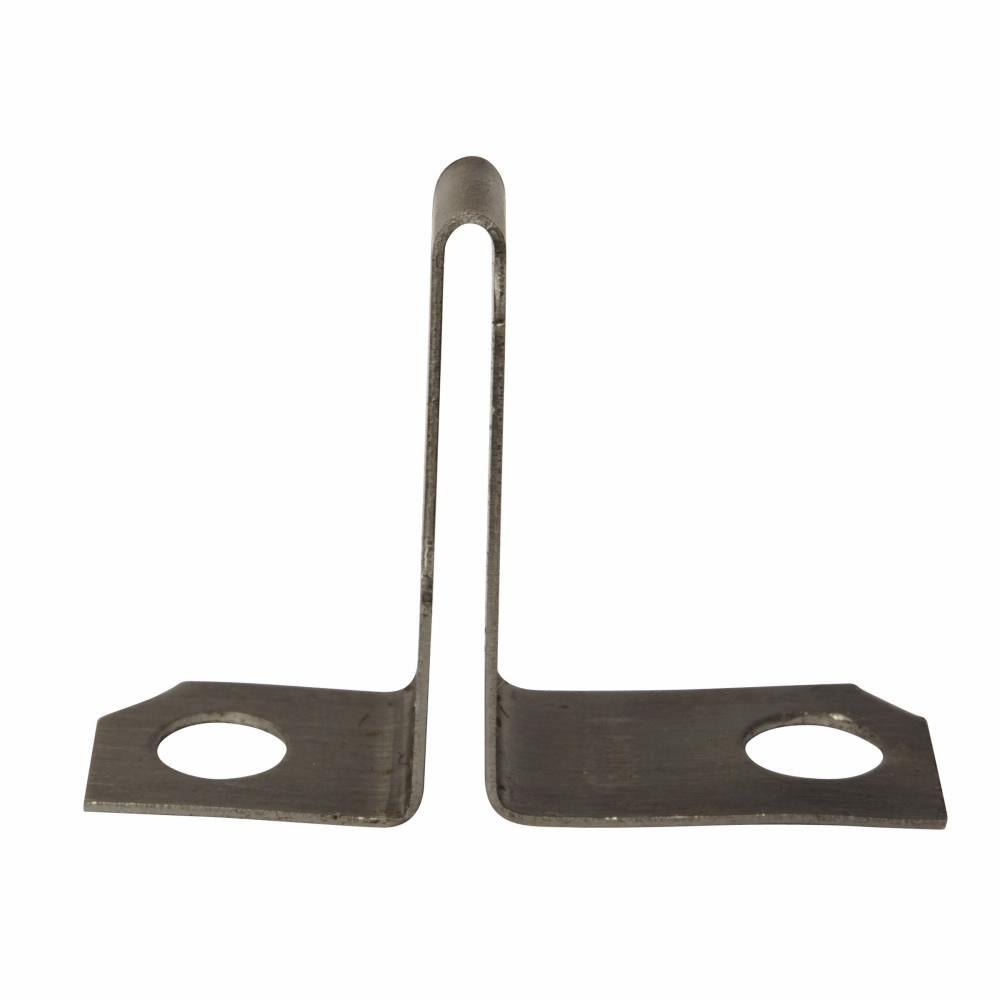

Eaton FH70 A200/B100 Heater

Product Description

The EATON FH70 A200/B100 Heater provides motor protection and meets Article 430-32 of the National Electrical Code. Select heater coils based on the motor's full load current. It is suitable for industrial facilities and factories. The heater is a replacement heater element and is technically compatible with A200 series Size 3 and 4 overload relays.

• Select heater coils based on full load current (FLA) shown on motor nameplate
• Heater coils are rated to protect 40 deg C rise and a service factor of 1.15
• 1-phase requires 2-heaters, 3-phase requires 3-heaters

Product Highlights

The EATON FH70 heater is designed for overload protection. It is UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH70
• Country of Origin: Dominican Republic

Technical Specifications

• Catalog Number: FH70
• Manufacturer: Eaton Corporation
• Brand: Eaton
• Country of Origin: Dominican Republic
• Made in USA: No
• Application: Ind Facilities & Factories - Industrial Facilities/Factories - Other
• Standard: CSA Certified,UL Listed
• UPC: 782114166956
• GTIN: 00782114166956
• Item Type: Heater
• Full Load Current: 15.6 to 17.1 A
• Trip Type: Fast/Thermal
• Type: Thermal and Fast Trip
• Series: A200
• Material: copper
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Spare part
• Sub-range name: FH
• Functions: Replacement heater element
• Technical compatibility with: A200 series Size 3 overl. rlys
• A200 series Size 4 overl. rlys: A200 series Size 4 overl. rlys
