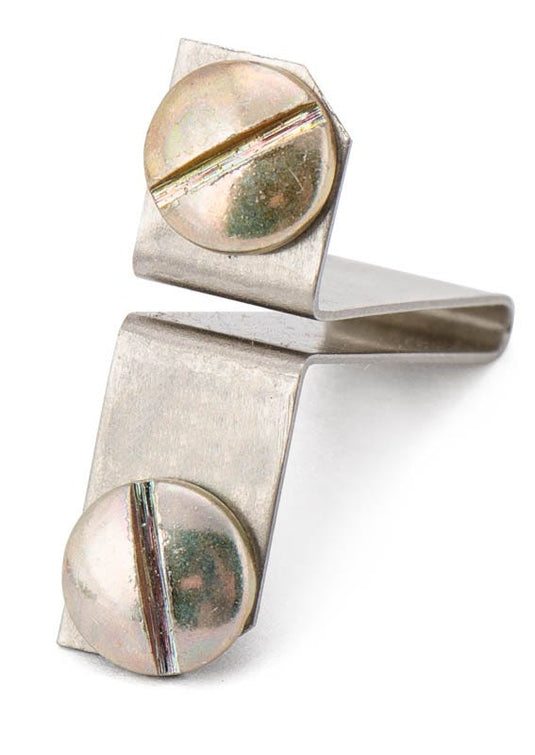

Eaton FH45 A200/B100 Heater

Product Description

The EATON FH45 is an A200/B100 heater used with starter sizes 0, 1, and 2. This heater is NEMA-rated and features thermal and fast trip functionality. It is suitable for use with Type A and B overload relays, magnetic motor starters and motor controls. It has a full load current range of Ambient 13.6-14.9, 15.8-17.2A, Non-Comp 12.7-13.8, 15.4-16.6A.

• Used with Starter Sizes 0,1, and 2
• Compatible with safety and emergency exit devices
• Thermal and fast trip

Product Highlights

The EATON FH45 A200/B100 heater is designed for overload protection in industrial applications. It ensures reliable motor control and protection with its thermal and fast trip features.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH45

Technical Specifications

• Catalog Number: FH45
• UPC: 786678670218
• Product Length/Depth: 2.1 in
• Product Height: 0.8 in
• Product Width: 1.3 in
• Certifications: CSA Certified, UL Listed
• Global Catalog: FH45
• Product Type: Heater
• Special features: Used with Starter Sizes 0,1, and 2
• Type: A200/B100 Heater
• Used with: Used with Starter Sizes 0,1, and 2
• Design: NEMA
• Full Load Current Range: Ambient 13.6-14.9, 15.8-17.2A, Non-Comp 12.7-13.8, 15.4-16.6A
• Overload Relay: Type A and B
• Trip type: Thermal and fast trip
• Series: A200/B100
• Amperage: 15.4-16.6
• Approval: UL, CSA
• Protection: Thermal
• Length (in): 2.1
• Width (in): 1.3
• Height (in): 0.8
• For Use With: Starter Sizes 0,1 and 2, Thermal Overload Relays, Magnetic Motor Starters and Motor Controls
• Standards: NEMA
• Nema Size: 0, 1, 2
• Mpn: FH45
• Gtin: 786678670218
• Model: FH-45
• Application: For A200 series NEMA 0/1/2 starter, safety, emergency exit devices, industrial facilities and factories facility applications
• Category: Business & Industrial
• UNSPSC: 39122330
• Used On: Type A and B Overload Relay, A200/B100 Series Starter
• Trip Type: Fast/Thermal
• Enclosure Type: NEMA 0/1/2
• Size: 2.1 in L x 1.3 in W x 0.8 in H
• Motor FLA: 13.6 to 17.2 Amp
• Accessory Type: Overload Heater
