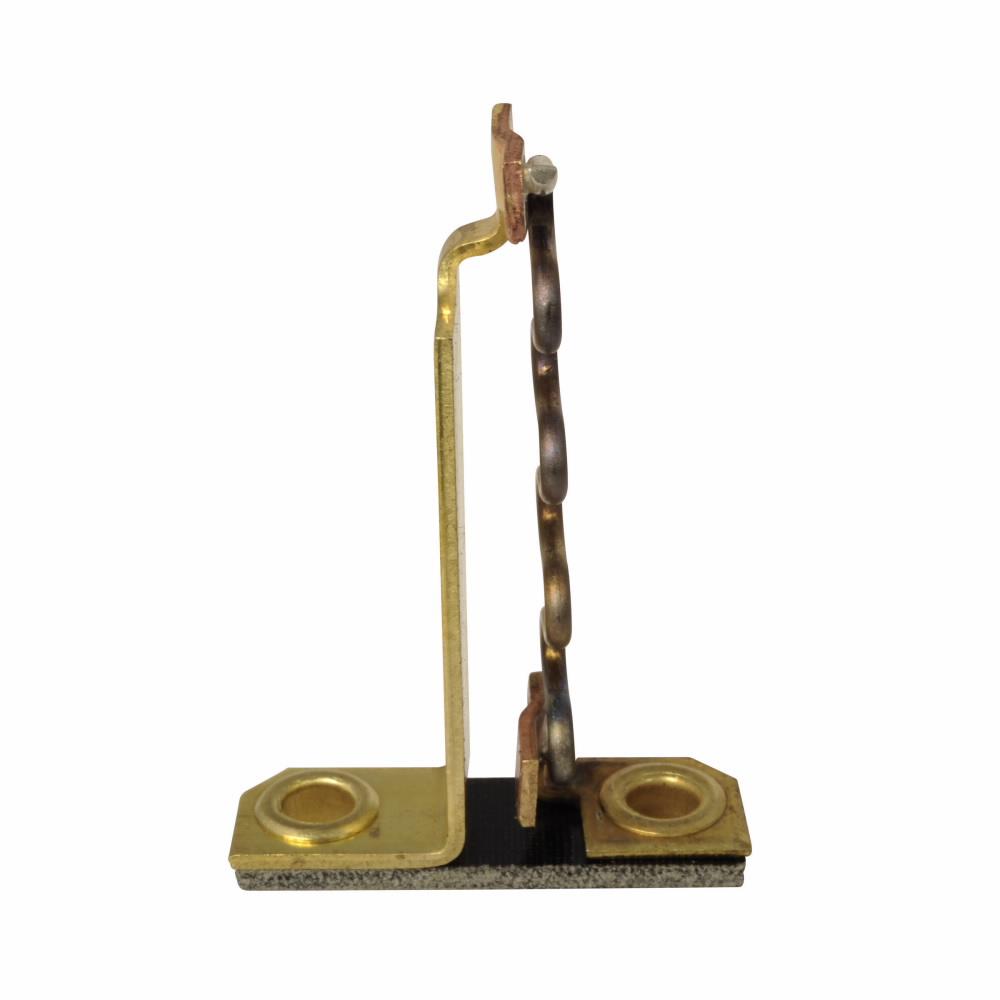

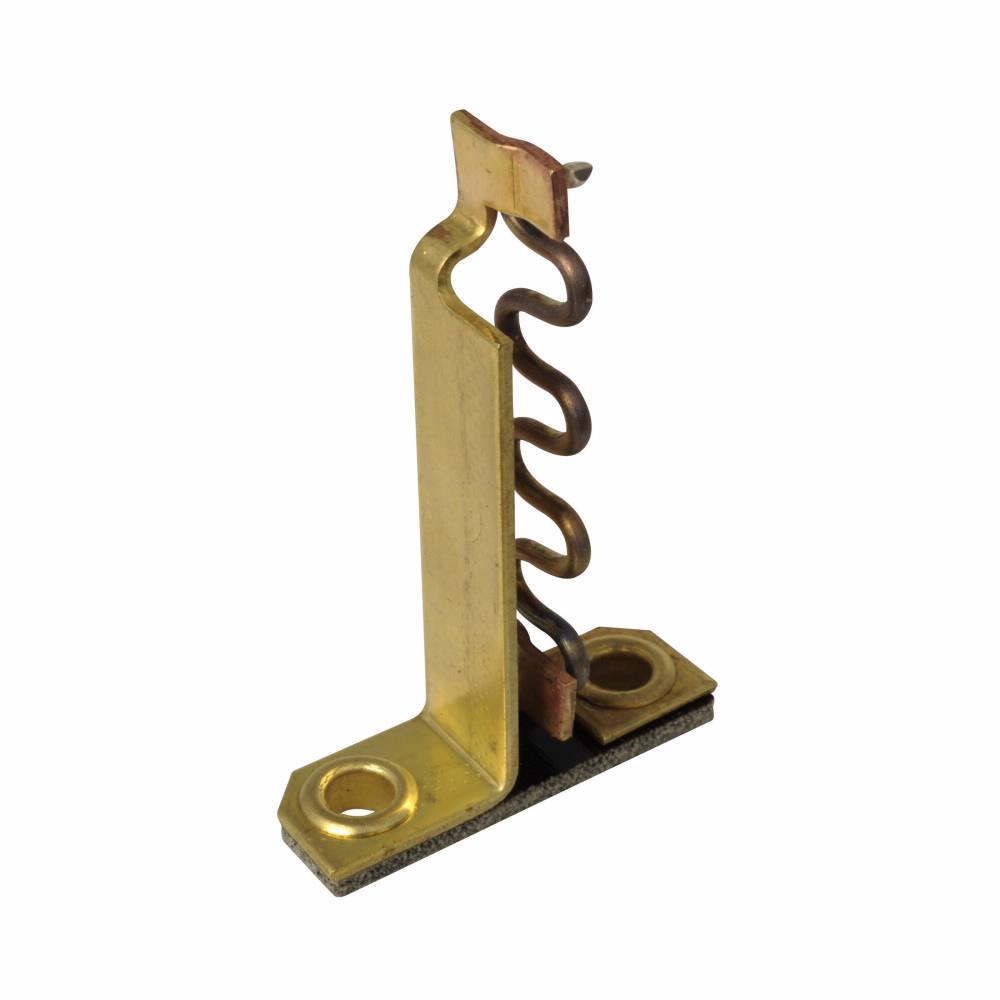

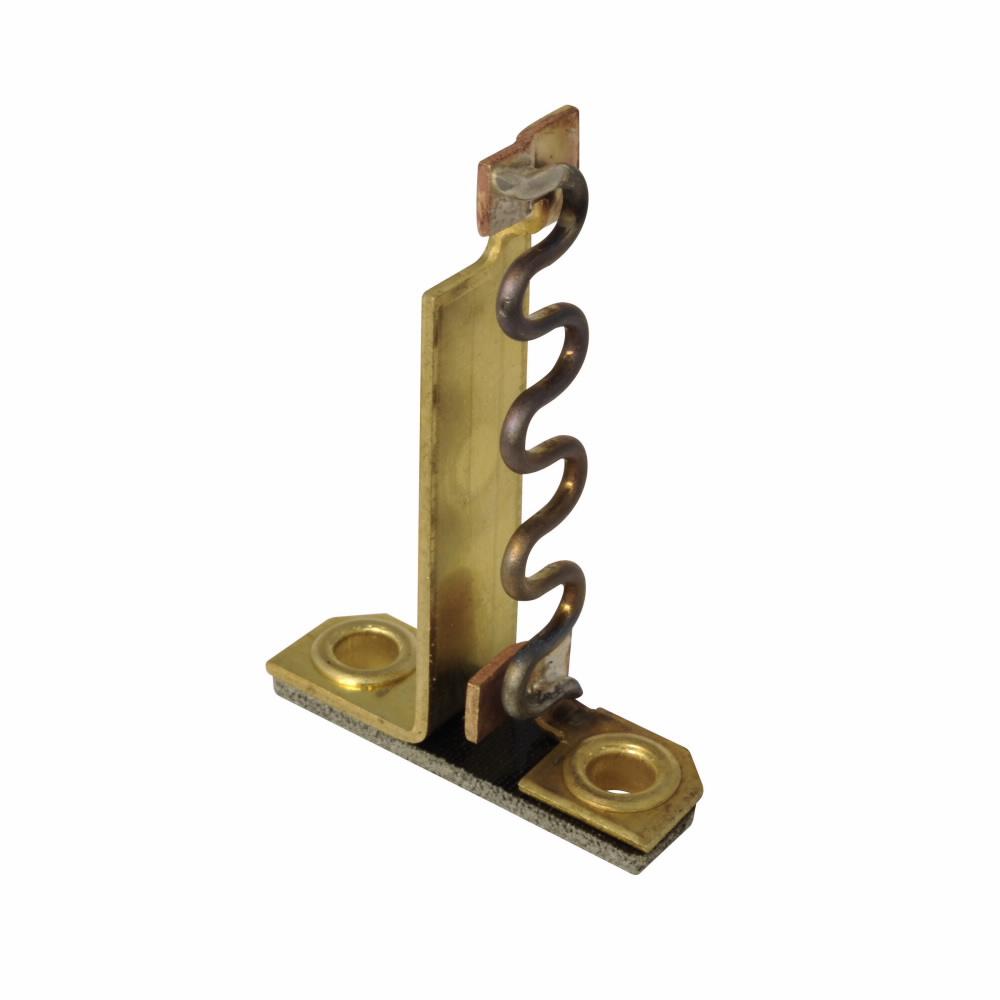

Eaton FH35 Overload Relay Heater

Product Description

The EATON FH35 is an overload heater designed for overload relays. It is compatible with Type A and B Overload Relays and used for starter sizes 0, 1, and 2, thermal overload relays, magnetic motor starters and motor controls. The heater has a current rating of 6.1-6.6 Amps.

• Heater Coils are Rated to Protect 40 Deg C Rise Motors, and Open and Dripproof Motors having a Service Factor of 1.15 Where the Motor and the Controller are at the Same Ambient Temperature
• Ambient Temperature of Controller Lower than Motor by 26 Deg C Use One Size Smaller Coil
• Ambient Temperature of Controller Higher than Motor by 26 Deg C Use One Size Larger Coil

Product Highlights

The EATON FH35 overload heater protects motors from overheating, ensuring reliable operation and preventing damage.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH35
• Country of Origin: Dominican Republic

Technical Specifications

• Approval: UL, CSA
• Manufacturer Name: Eaton
• Motor FLA: 5.4 to 6.8 Ampere
• NEMA Size: 0, 1, 2
• Trip Type: Thermal, Fast
• Used On: Type A and B Overload Relay
• Brand: EATON
• Series: A200/B100
• Amperage: 6.1-6.6
• Protection: Thermal
• Length (in): 2.1
• Width (in): 1.3
• Height (in): 0.8
• For Use With: Starter Sizes 0,1 and 2, Thermal Overload Relays, Magnetic Motor Starters and Motor Controls
• Standards: NEMA
• Mpn: FH35
• Upc: 786678629926
• Gtin: 786678629926
• Certifications: CSA Certified, UL Listed
• Design: NEMA
• Full Load Current Range: Ambient 5.4-5.9, 6.3-6.8A, Non-Comp 5.1-5.5, 6.1-6.6A
• Overload Relay: Type A and B
• Special Features: Used with Starter Sizes 0,1, and 2
• Type: A200/B100 Heater
• Used With: Used with Starter Sizes 0,1, and 2
• Standard & Approvals: UL Listed, CSA Certified
• Enclosure Type: NEMA 0/1/2
• Full Load Current Rating: 5.4 to 5.9/6.3 to 6.8 A
• Compatible with Series: A200; B100
• Full Load Current: 5.4 to 5.9 A 6.3 to 6.8 A
• Trip Class: 20
• Overload Protection Type: Thermal
• Heater Type: Overload Relay
• Pack Quantity: 1
• Condition: New
