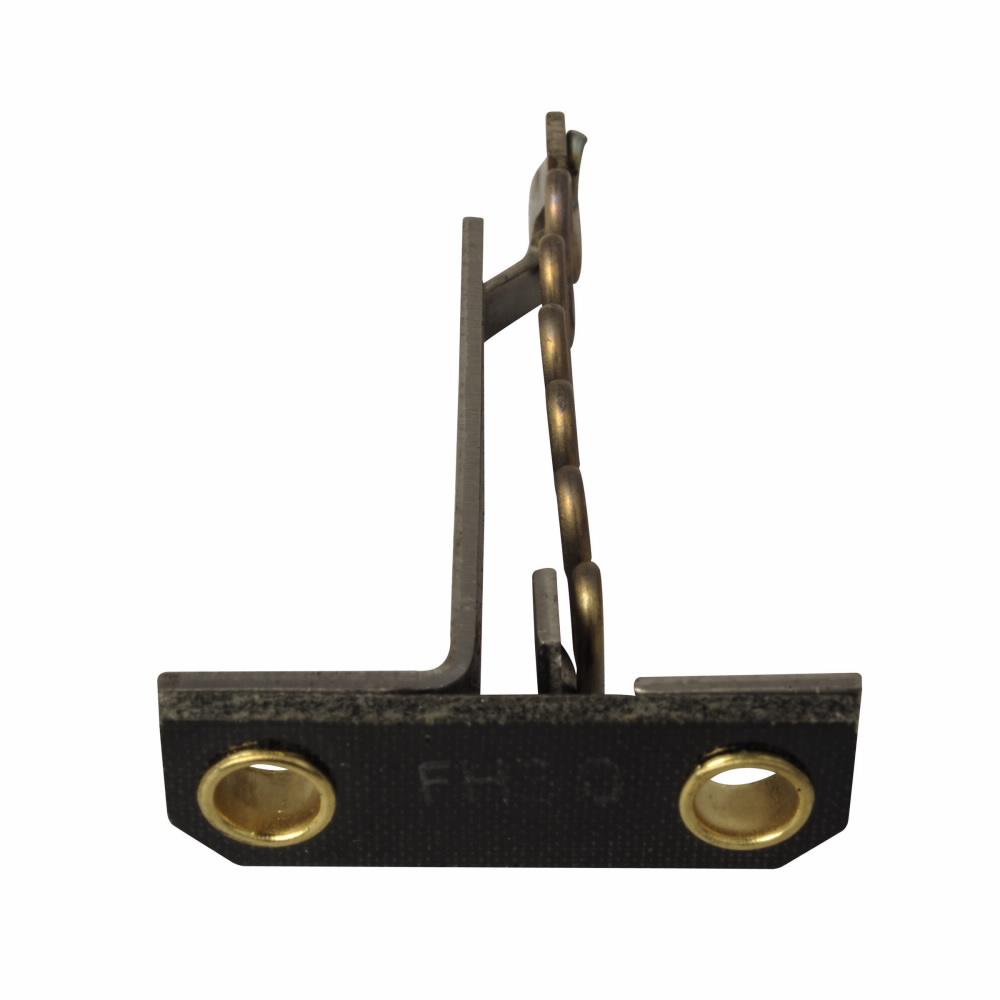

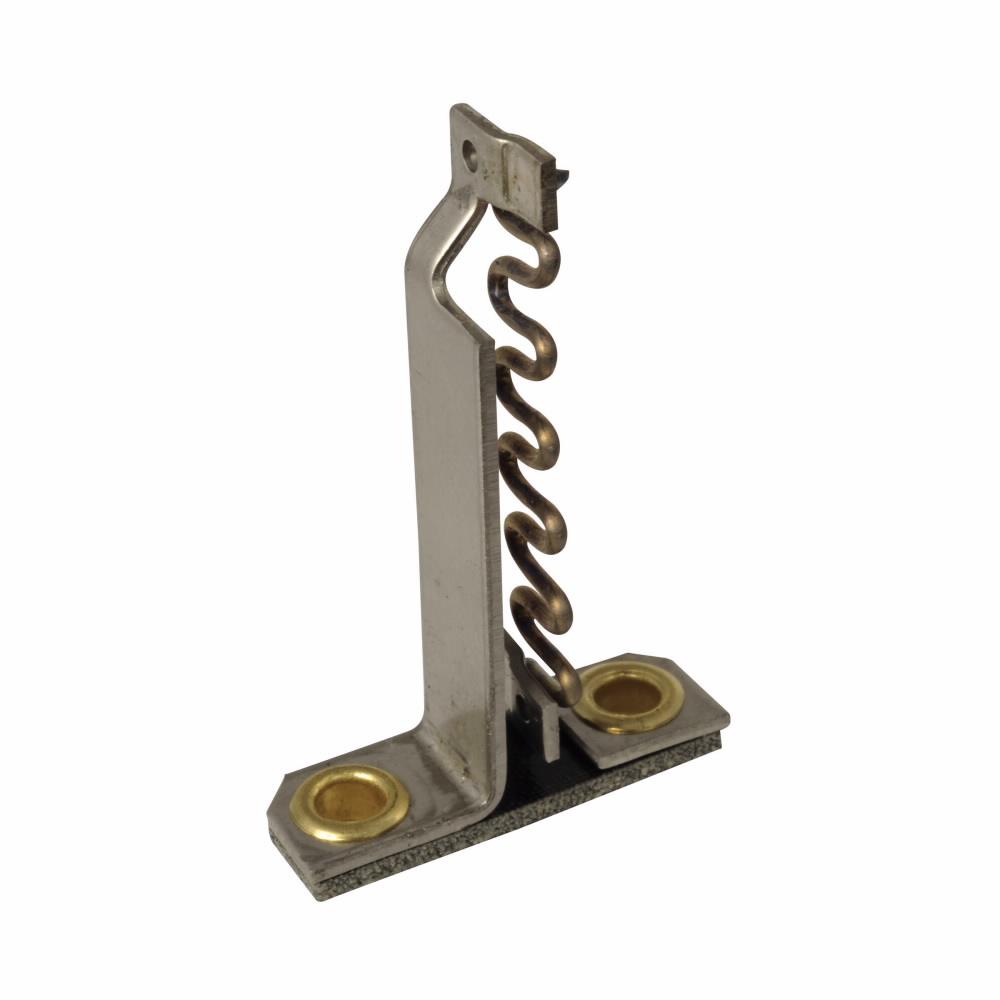

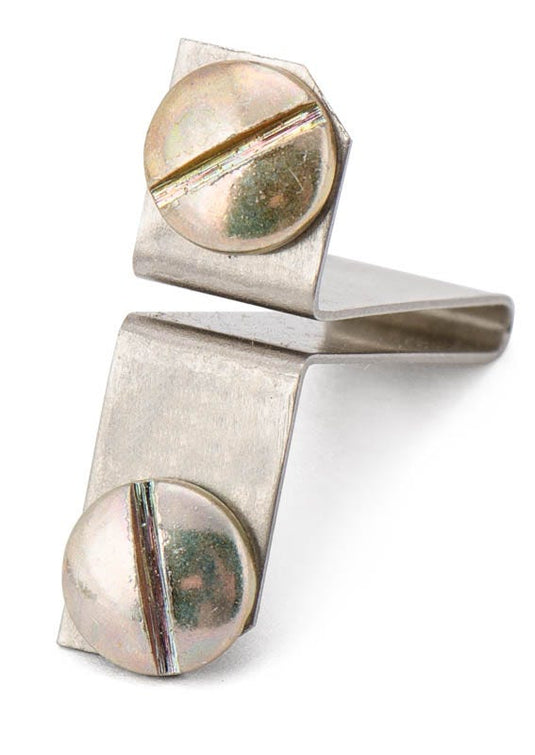

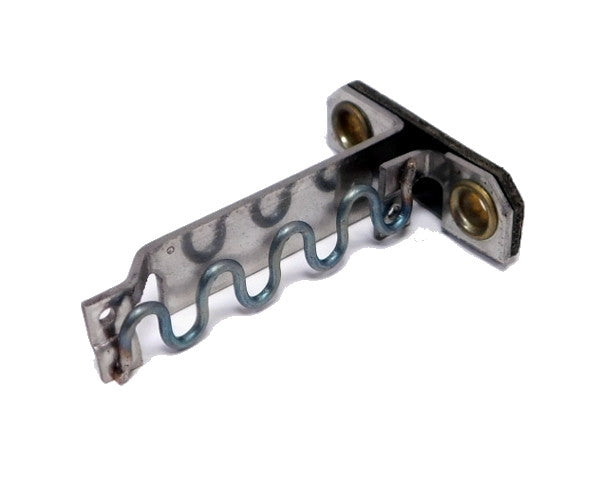

Eaton FH30 Overload Heater Element

Product Description

The EATON FH30 is an overload heater element with a current rating of 3.88-4.22 Amps. It is used for starter sizes 0,1 and 2, thermal overload relays, magnetic motor starters and motor controls. This thermal unit replaces damaged or worn thermal units in overload relays.

• Protects connected loads from overheating
• Contains bimetallic strips or melting alloy solder materials
• Breaks electrical connections when a set temperature is reached

Product Highlights

The EATON FH30 thermal overload relays prompt contactors to break electrical connections with downstream equipment once a set temperature is reached to protect connected loads from overheating and causing damage.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH30
• Country of Origin: Dominican Republic

Technical Specifications

• Brand: Eaton/Cutler-Hammer
• Series: A200/B100
• Amperage: 3.88-4.22
• Approval: UL, CSA
• Protection: Thermal
• Length (in): 2.1
• Width (in): 1.3
• Height (in): 0.8
• For Use With: Starter Sizes 0,1 and 2, Thermal Overload Relays, Magnetic Motor Starters and Motor Controls
• Standards: NEMA
• Nema Size: 0, 1, 2
• Mpn: FH30
• Upc: 786678629773
• Gtin: 786678629773
• Design: NEMA
• Full Load Current Range: Ambient 3.43-3.73, 3.96-4.31A, Non-Comp 3.18-3.47, 3.88-4.22A
• Overload Relay: Type A and B
• Special Features: Used with Starter Sizes 0,1, and 2
• Type: A200/B100 Heater
• Used With: Used with Starter Sizes 0,1, and 2
• Trip Type: Thermal and Fast Trip
• Manufacturer: Eaton / Cutler Hammer
• Enclosure Type: NEMA 0/1/2
• Motor FLA: 3.43 to 4.31 Amp
• Accessory Type: Overload Heater
• UNSPSC: 39122330
• Used On: Type A and B Overload Relay
• Application: For A200 series NEMA 0/1/2 starter, safety, emergency exit devices, industrial facilities and factories facility applications
• Compatible with Series: A200; B100
• Full Load Current: 3.43 to 3.73 A 3.96 to 4.31 A
• Trip Class: 20
• Overload Protection Type: Thermal
• Compatible with Grainger Part Number: 11Z488; 11Z489; 11Z49; 11Z491; 11Z492; 11Z493; 11Z494; 11Z495; 11Z496; 11Z497
• Compatible with Manufacturer Model Number: B100J0B; B100J0C; B100J1B; B100J1C; B100M0B; B100M0C; B100M1B; B100M1C; B100S0B; B100S0C; B100S1B; B100S1C; B100U0B; B100U0C; B100U1B; B100U1C; B100W0B; B100W0C; B100W1B; B100W1C
