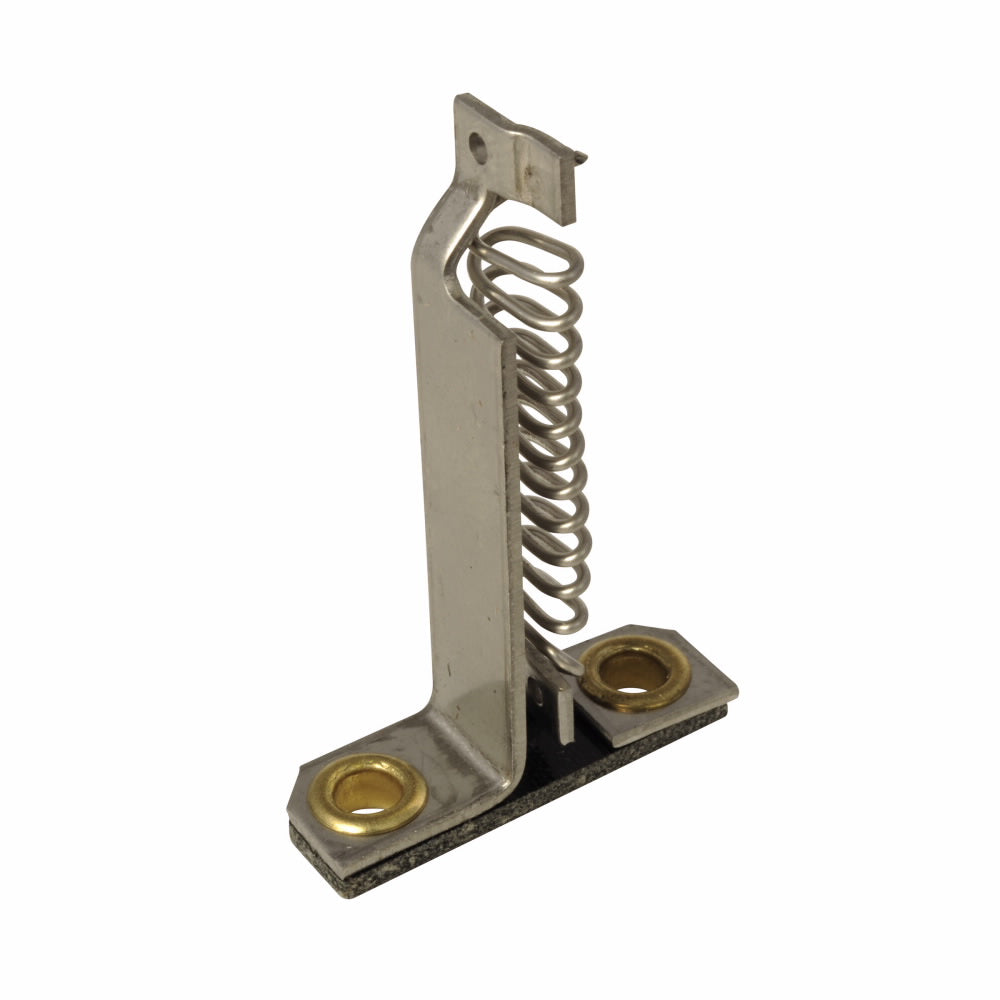

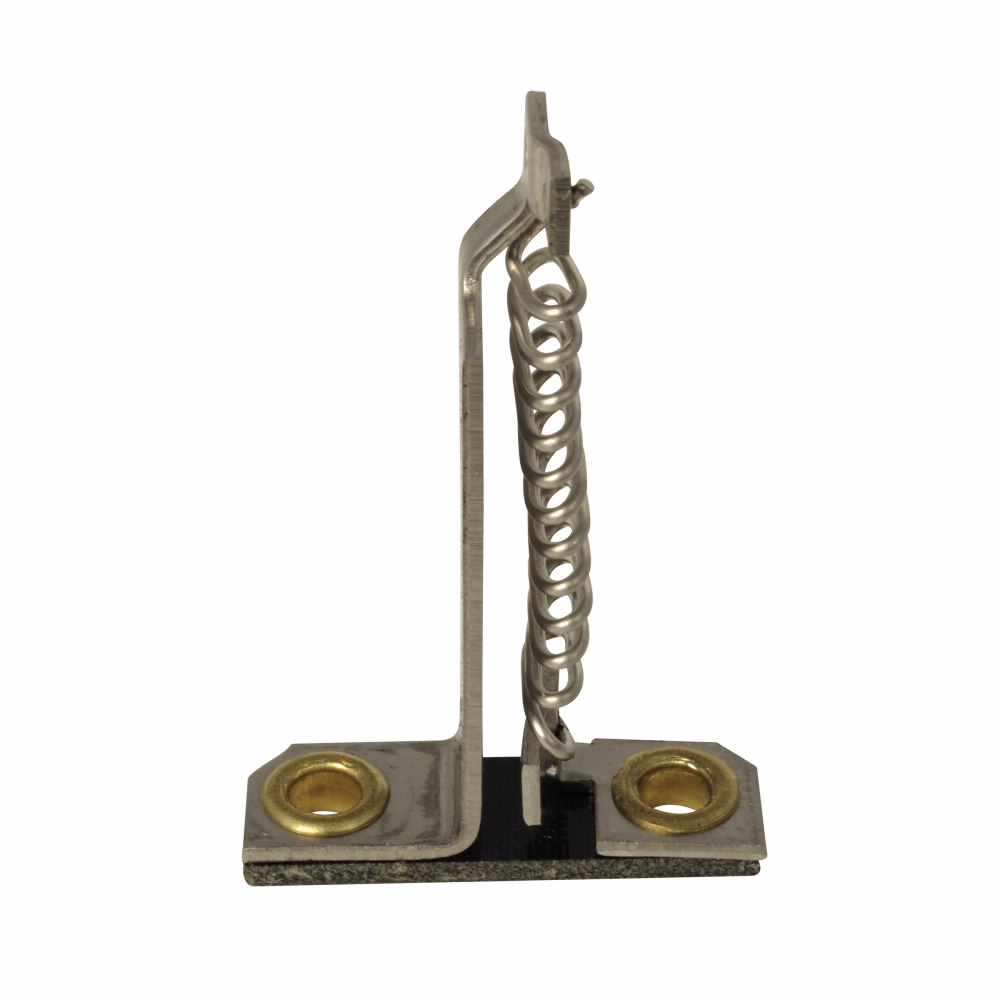

Eaton FH24 A200/B100 Heater

Product Description

The Eaton FH24 A200/B100 heater is used with starter sizes 0, 1, and 2, and is compatible with Type A and B thermal and fast trip systems. This heater is identified by a catalog number stamped on one terminal. It is designed for NEMA ambient conditions of 1.96-2.15A and 2.27-2.48A, and non-Comp conditions of 1.82-1.99A and 2.22-2.43A.

• Used with Starter Sizes 0, 1, and 2
• Type A and B
• Thermal and Fast Trip

Product Highlights

The Eaton FH24 A200/B100 heater is designed for use with starter sizes 0, 1, and 2, and is compatible with Type A and B thermal and fast trip systems.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH24
• Country of Origin: Dominican Republic

Technical Specifications

• Type: A200,B100,Heater
• Brand: Eaton
• Trip Type: Fast Trip,Thermal
• Enclosure Type: NEMA 0/1/2
• Full Load Current: 1.96 to 2.15/2.27 to 2.48 A Ambient, 1.82 to 1.99/2.22 to 2.43 A Non-Comp
• Design [Specifications]: NEMA
• Product Type: Heater
• Full Load Amps [Specifications]: 2.33 to 2.54
• Sensing Method [Specifications]: Bimetallic
• Full load current range: Ambient 1.96-2.15, 2.27-2.48 A, Non-Comp 1.82-1.99, 2.22-2.43 A
• Compatible with Series: A200; B100
• Trip Class: 20
• NEMA Size: 0; 1; 2
• Overload Protection Type: Thermal
• Compatible with Grainger Part Number: 11Z488; 11Z489; 11Z49; 11Z491; 11Z492; 11Z493; 11Z494; 11Z495; 11Z496; 11Z497
• Compatible with Manufacturer Model Number: B100J0B; B100J0C; B100J1B; B100J1C; B100M0B; B100M0C; B100M1B; B100M1C; B100S0B; B100S0C; B100S1B; B100S1C; B100U0B; B100U0C; B100U1B; B100U1C; B100W0B; B100W0C; B100W1B; B100W1C
