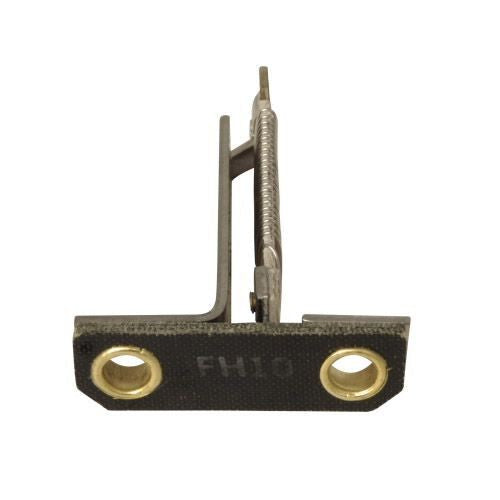

Eaton FH03 A200/B100 Heater

Product Description

The Eaton FH03 A200/B100 heater is a NEMA-rated thermal unit designed for use with starter sizes 0, 1, and 2, and Type A and B overload relays. It features both thermal and fast trip functionality. The heater is designed for ambient full load current of 0.25-0.27A and 0.29-0.31A, and non-compensating full load current of 0.24-0.25A and 0.28-0.30A.

• Used with Starter Sizes 0,1, and 2
• Full Load Amps 0.28 to 0.29
• Sensing Method Bimetallic

Product Highlights

The Eaton FH03 heater is suitable for A200/B100 series manual motor starters, providing thermal overload protection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH03
• Country of Origin: Dominican Republic

Technical Specifications

• Design: NEMA
• Trip Type: Thermal and fast trip
• Used with: Used with Starter Sizes 0,1, and 2
• For Use With: Eaton B100 Series Manual Motor Starter (B100M0C, B100M1C, B100S0C, B100S1C, B100W0C, B100W1C, B100U0C, B100U1C, B100J0C, B100J1C, B100M0CA, B100M1CA, B100S0CA, B100S1CA)
• Product Type: Thermal Unit
• Product Width: 1.3 in
• Certifications: UL Listed
• Full Load Amps: 0.28 to 0.29
• Overload relay: Type A and B
• Product Height: .8 in
• Sensing Method: Bimetallic
• Product Length/Depth: 2.1 in
• Full load current range: Ambient 0.25-0.27, 0.29-0.31 A, Non-Comp 0.24-0.25, 0.28-0.30 A
• FL Amp @ 3-Ph/ Man. Size 0/ Standard Enclosure: 0.28 to 0.29
• FL Amp @ 3-Ph/ Man. Size 1/ Standard Enclosure: 0.28 to 0.29
• FL Amp @ 3-Ph/ Man. Size 0/ Open & Large Enclosure: 0.28 to 0.29
• FL Amp @ 3-Ph/ Man. Size 1/ Open & Large Enclosure: 0.28 to 0.29
• Series: A200/B100
• Standard & Approvals: UL Listed, CSA Certified
• Enclosure Type: NEMA 0/1/2
• UNSPSC: 39122330
• Type: Type B100
• Application: For A200 series NEMA 0/1/2 starter, electrical assemblies, panels and EOEMs
