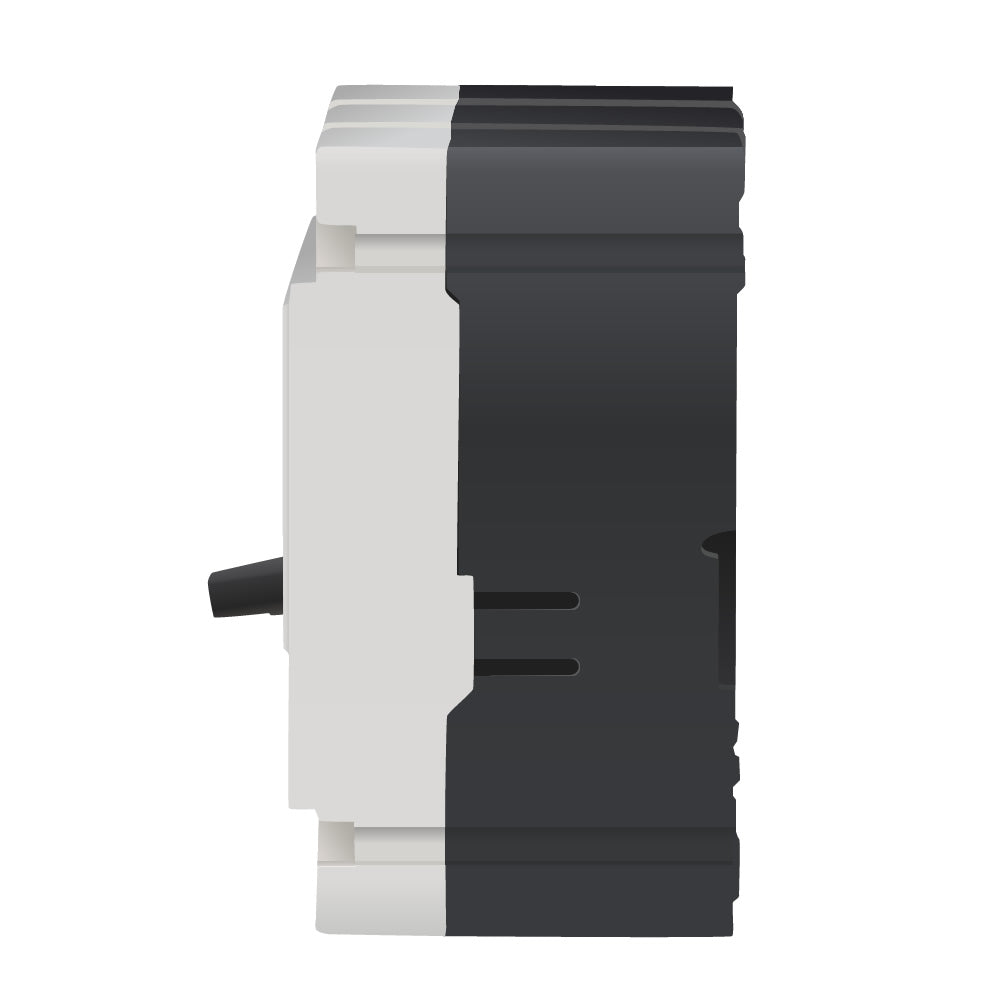

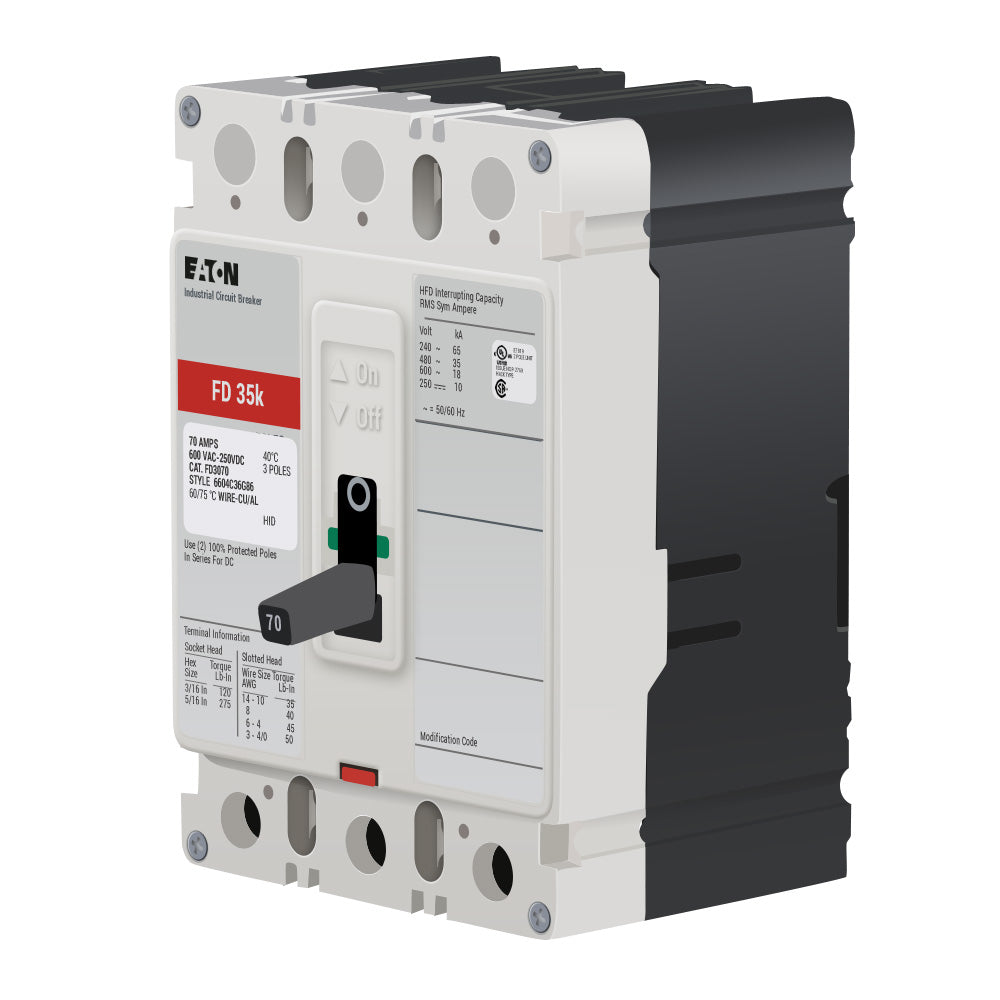

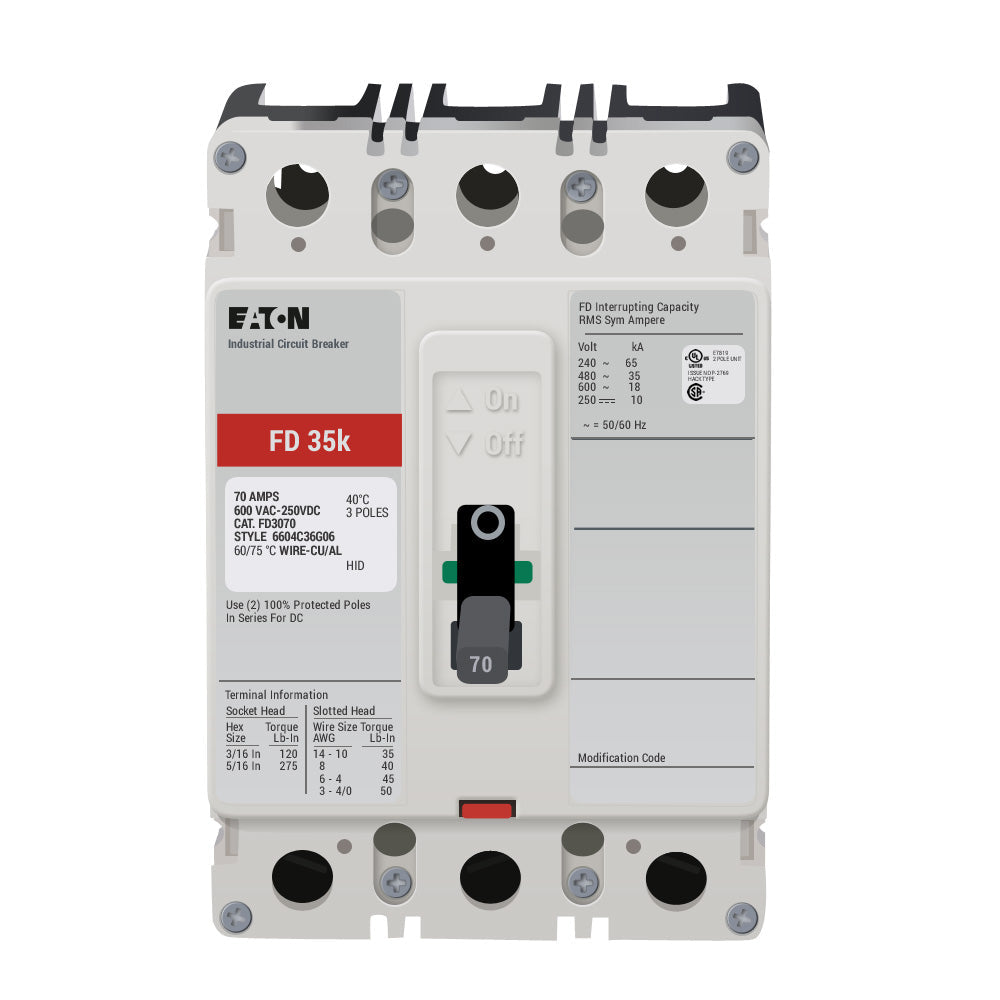

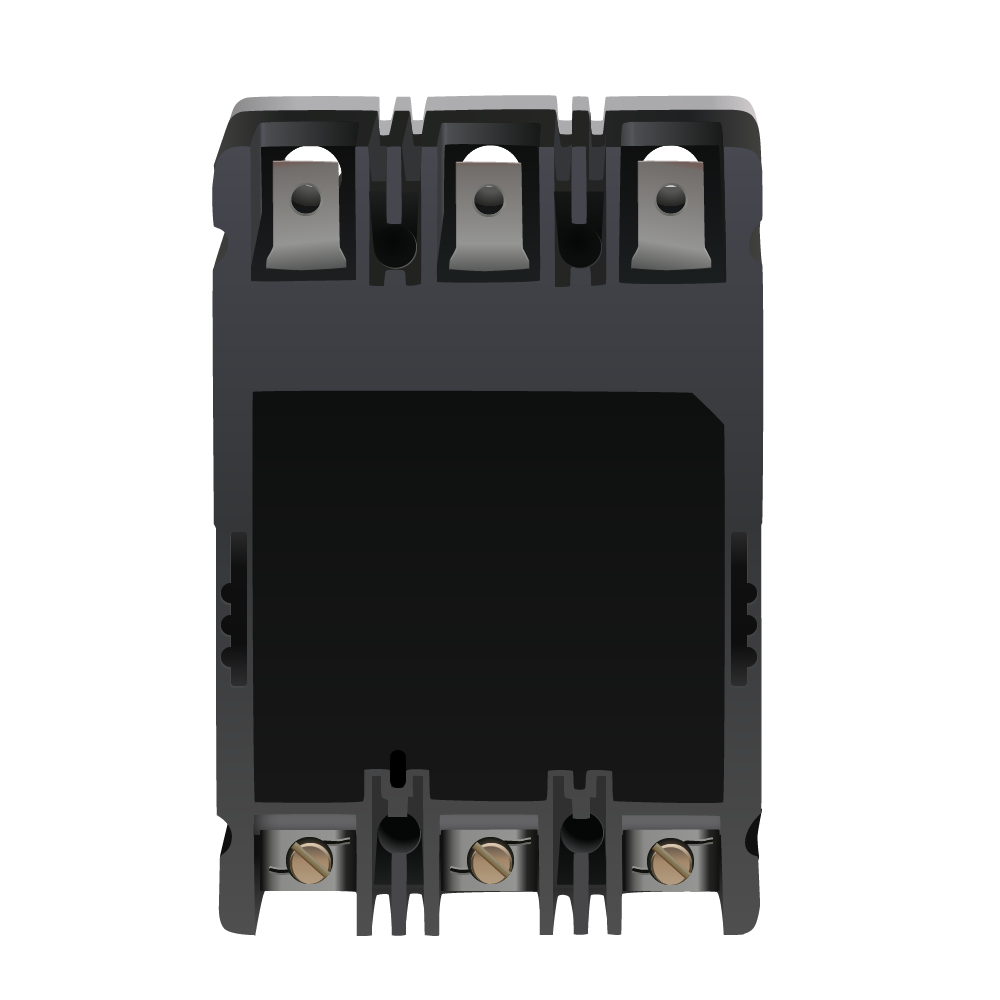

Eaton FD3070 Series C complete molded case circuit breaker F-frame FD fixed thermal fixed magnetic trip three-pole 70A 600VAC 250VDC

Product Description

The Eaton FD3070 Series C Molded Case Circuit Breaker is a three-pole, 70A device designed for branch circuit protection. It features fixed thermal and fixed magnetic trip types, operating at 600 Vac and 250 Vdc. This F-frame breaker is suitable for panelboards, switchboards, motor control centers, and busway applications, ensuring dependable electrical system performance.

• Fixed thermal and fixed magnetic trip types for reliable circuit protection.
• Rated for 70A current, 600 Vac, and 250 Vdc systems.
• F-frame design suitable for diverse electrical distribution applications.

Product Highlights

Versatile F-frame molded case circuit breaker for dependable branch circuit protection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FD3070
• Country of Origin: Dominican Republic

Technical Specifications

• Catalog Number: FD3070
• Manufacturer: Eaton
• Brand: Eaton
• Application: For panelboard, switchboard, motor control center and busway applications, electrical assemblies and OEM's
• Current Rating: 70A
• Frame: F
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 10 kA at 250 VDC (UL)
• Number of Poles: 3
• Standards/Approvals: AS 2184, BS 4752, CSA Certified, SABS 156, SEV 157-1, UL Listed, VDE 0660, IEC 157-1
• Item Type: Molded Case Circuit Breaker (MCCB)
• Trip Type: Fixed Thermal, Fixed Magnetic
• Voltage Rating: 600 Vac, 250 Vdc
• Actuator Type: Handle
• Connection Type: Load (Standard Pressure)
• Enclosure Type: NEMA AB1-1993
• Mounting Type: Panel
• Phase: 3 ph
• Series: C Series
• Temperature Rating: 40 deg C
• Type: Type FD
• Wire Size: 14 to 1/0 AWG
• Interrupt Rating (IEC): 65 kA at 220/240 VAC, 35 kA at 380/415/440 VAC, 18 kA at 500 VAC, 10 kA at 250 VDC
