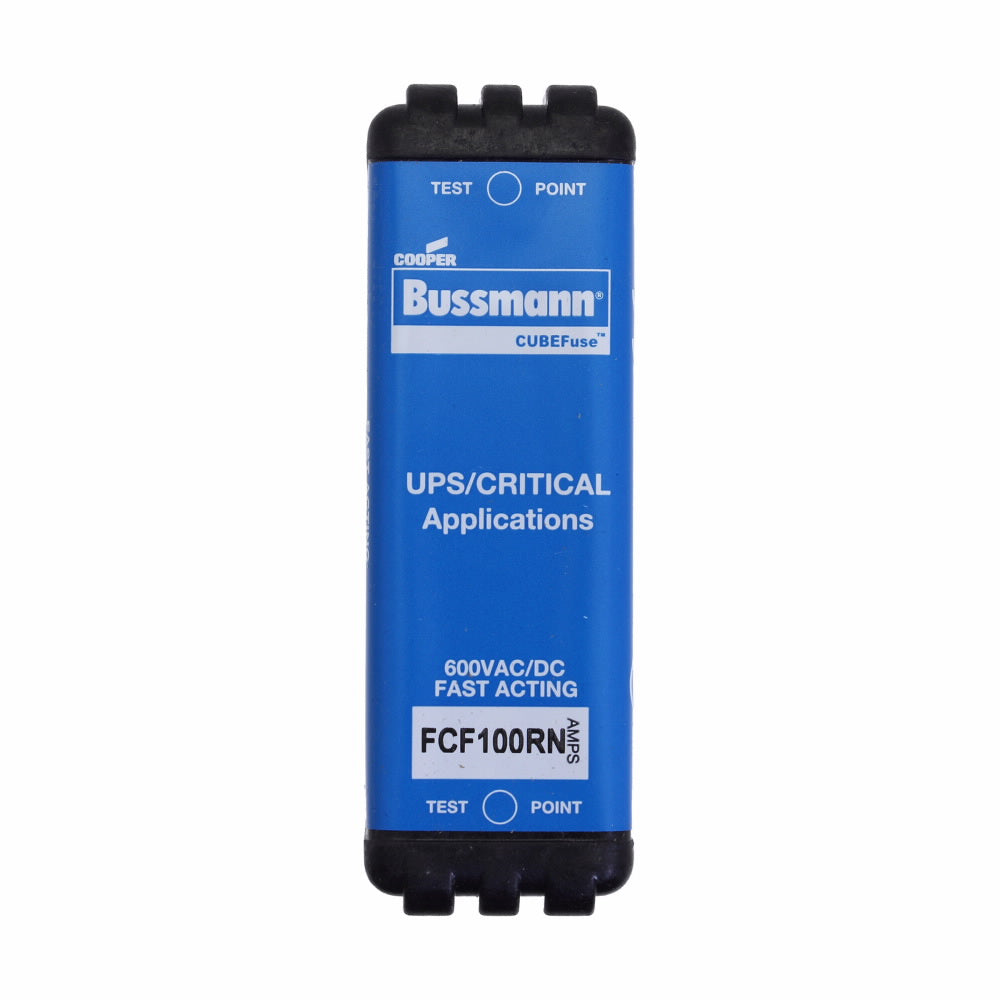

Eaton FCF100RN Bus Fast Acting CUBEFuse 100A Non-Indication (6)

Product Description

The Eaton FCF100RN is a fast acting non-indicating cartridge fuse with an amperage rating of one hundred amps, designed for use in various electrical systems. This fuse operates at six hundred volts AC and can interrupt a fault current of up to two hundred kA. It is ideal for applications in commercial and institutional buildings, power distribution systems, and safety installations.

• Fast acting fuse capable of handling high interrupting ratings
• Compact square blade body design
• Constructed for reliability and performance in critical applications

Product Highlights

This cartridge fuse type is engineered for efficiency and security while occupying minimal space.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: FCF100RN

Technical Specifications

• Amperage Rating: 100 A
• Application: Commercial/Institutional Systems
• Body Size: 3.01 in L x 1 in W
• Body Type: Square Blade
• Voltage Rating: 600 VAC
• Frequency Rating: 50/60 Hz
• Response Time: 8 min at 200%
• Materials: Glass Filled Polyethersulfone
• Inclusions: Single element
• Standards/Approvals: CE Certified, CSA Certified, RoHS Compliant, UL Listed
