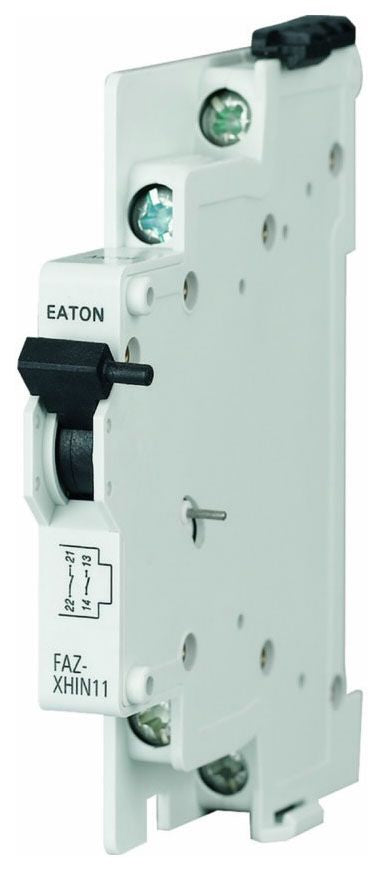

Eaton FAZ-XHIN11-SP Auxiliary Contact Block

Product Description

The EATON FAZ-XHIN11-SP is an auxiliary contact block designed to add signaling or control contacts to compatible FAZ series miniature circuit breakers. Auxiliary contacts provide a secondary electrical signal that reflects the breaker's open or closed position, enabling remote monitoring, alarm integration, or control-circuit feedback in panel and distribution applications. Licensed electricians and panel integrators install this accessory when a system requires status indication or interlocking beyond the breaker's primary overcurrent function.

This auxiliary contact block is suited for use in residential and light commercial electrical panels, industrial control enclosures, and switchboard assemblies where FAZ series breakers are deployed. It is a direct-mount accessory that attaches to the breaker body, making it appropriate for new installations and retrofit applications where remote status monitoring is added to an existing breaker position.

Key Features

• Adds auxiliary signaling contacts to FAZ series miniature circuit breakers
• Supports remote monitoring and alarm or control-circuit integration
• Direct-mount accessory design for straightforward field installation
• Compact form factor suited for space-constrained panel enclosures
• Weighs 0.101 pounds for minimal added load on breaker assembly

Compatibility

Designed as an OEM-style accessory contact block for use with EATON FAZ series miniature circuit breakers. Confirm specific breaker model compatibility against EATON FAZ series accessory documentation before installation.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the panel or enclosure before attaching or removing any breaker accessory. The contact block mounts directly to the breaker body per the manufacturer's accessory attachment procedure. Verify auxiliary contact wiring connections match the control or monitoring circuit requirements before re-energizing.

Technical Specifications

• Weight: 0.101 pounds
• UPC: 78668592466

Standard Information

• Brand: EATON
• Manufacturer Part Number: FAZ-XHIN11-SP
